Ricoh SP 310DN User Manual

Drive
SM 4-37 M154/M155/M174/M175/A0A7/M287/M0BB
Replacement
and Adjustment

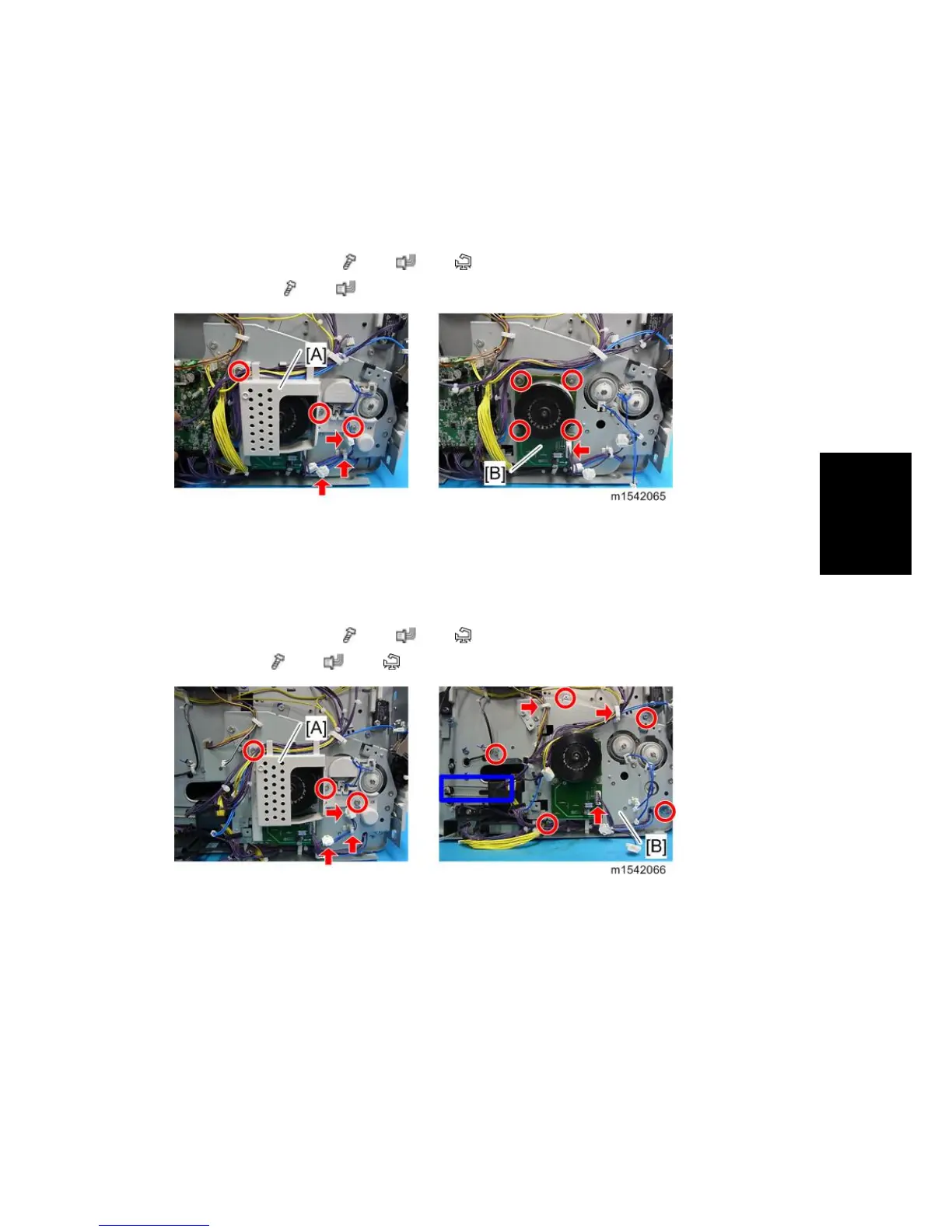

4.8 DRIVE
4.8.1 MAIN MOTOR
1. Left cover (page 4-5 "Left Cover")
2. Harness guide plate [A] ( x 3, x 2, x 1)
3. Main motor [B] (
x 4, x 1)
4.8.2 DRIVE UNIT
1. Left cover (page 4-5 "Left Cover")
2. Main board (page 4-40 "Main board")
3. Harness guide plate [A] (
x 3, x 2, x 1)
4. Drive unit [B] (
x 5, x 1, x 2, timing belt)
