9
Motor Specifications and Electrical Requirements
Power Supply and Motor Specifications
WARNING: To reduce the risk of
electrical hazards, fire hazards,
or damage, or damage to the
tool, use proper circuit protec-
tion. Your saw is wired at the
factory for operation using the
voltage shown. Connect tool to a
power line with the appropriate
voltage and a 15-amp branch cir-
cuit. Use a 15-amp time delay
fuse or circuit breaker. To
reduce the risk of shock or fire,
if power cord is worn or cut, or
damaged in any way, have it
replaced immediately.
The AC motor used in this saw is a uni-
versal, nonreversible type having the fol-
lowing specifications
General Electrical Connections
DANGER: To reduce the risk of
electrocution:
1. Use only identical replace-
ment parts when servicing.
Servicing should be per-
formed by a qualified service
technician.
2. Do not use in rain or where
floor is wet.
This tool is intended for
indoor residential use only.
WARNING Do not permit fingers
to touch the terminals or plug
when installing or removing the
plug to or from the outlet.
If power cord is worn or cut, or damaged
in any way, have it replaced immediately.
110-120 Volt, 60 Hz. Tool Information
Double Insulated
The miter saw is double insulated to pro-
vide a double thickness of insulation
between you and the tool’s electrical sys-
tem. All exposed metal parts are isolated
from the internal metal motor components
with protecting insulation.

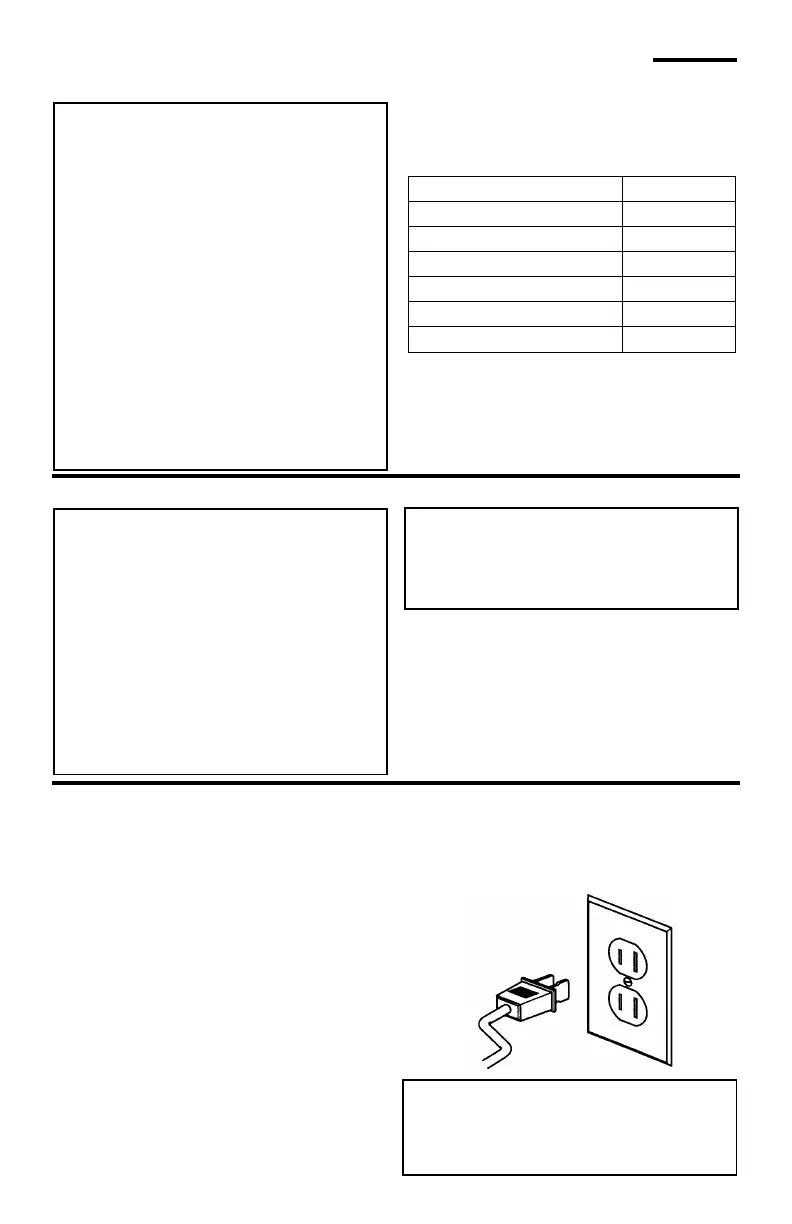

Polarized Plug
Your unit has a plug that looks like the one
shown.
To reduce the risk of electrical shock, this
appliance has a polarized plug (one blade
is wider than the other). This plug will fit in
a polarized outlet only one way, if the plug
does not fit fully in the outlet, reverse plug.
If it still does not fit, contact a qualified
electrician to install the proper outlet. Do
not change the plug in any way.
WARNING: Double insulation
does not take the place of nor-
mal safety precautions when
operating this tool.
Amperes 15
Voltage 120
Hertz (Cycles) 60
Phase Single
RPM 4600
Shaft Rotation (Blade end) Clockwise
Brake Automatic
