Bolero User Manual A20
· Select the 'Bolero' tab.
· Enter the same Bolero User ID that you entered in the
Antenna's web interface.
· Edit the Multicast address.
A unique Multicast address must be used for each
Beltpack in the Director config.
Riedel recommends to use the start address
'239.255.0.1' for the Beltpacks Multicast addresses.
Figure 68: Properties of the Beltpack
The Beltpack's key functions can be defined now via Director.
The Beltpack is now able to talk to the Artist system and vice versa.
AES67 – Switch
Bolero
Beltpacks
Bolero
Antennas
AES67
AES67/Config
port
Artist
Frames
AES67 card
PC
AES67–1
port
××
××××

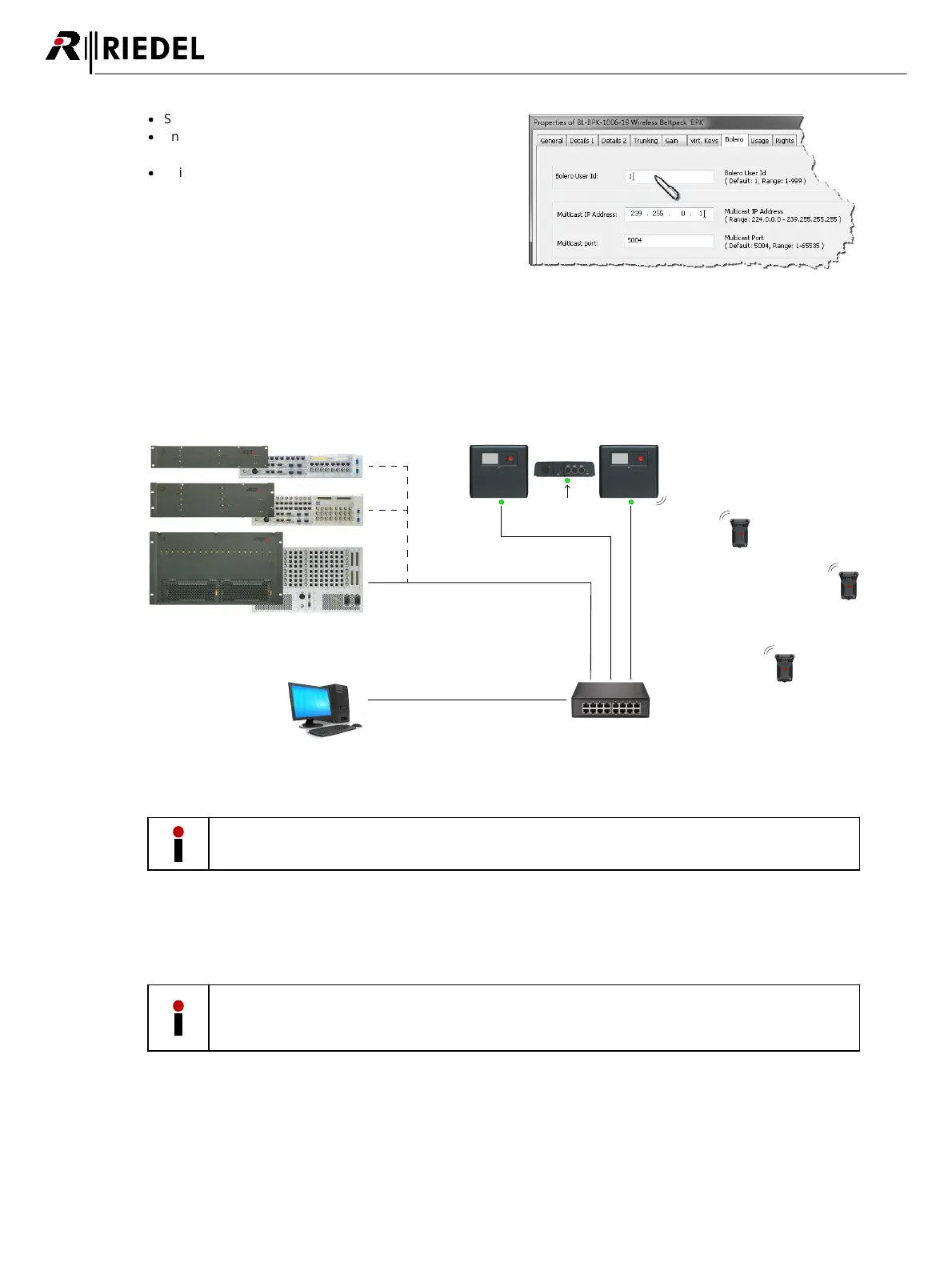

Figure 69: Bolero-Artist – Setup Diagram
Cable requirements: Cat 5e / Cat 6 or better (according to ISO/IEC 11801), S/FTP or better, up to 100 m.
Make sure ISO/IEC specification applies for the used length of the cable (in particular attenuation).
3.5.2 Switch Recommendations
This page describes all technologies that are needed for Bolero traffic and describes a simple network classification
that can be used to specify the switch that you need to choose.
After reading these pages, you should be able to determine, if a switch is suitable for Bolero by looking at
the spec sheet. If you classify the network you are building, choosing a switch can be done without
excessive testing.
The Bolero System needs the following key technologies supported by the switch fabric:

Riedel Bolero Specifications

General

Encryption	AES-256
Type	Wireless Intercom System
Frequency Bands	1.9 GHz
Charging Time	3 hours
Protection Class	IP54
Operating Temperature	-10°C to +50°C
Connectivity	AES67
Beltpack Capacity per Antenna	10 beltpacks
Network	Ethernet
Headset Connector	XLR 4-pin
Power	12 V DC
Channel Bandwidth	1.728 MHz
Modulation	GFSK
Data Rate	1152 kbps
Power Supply	PoE (Power over Ethernet)
Power Consumption	15 watts
Dimensions (Base Station)	483 x 44 x 280 mm
Weight (Base Station)	3.5 kg
Battery Life	Up to 17 hours
Operating Range	300m (line of sight)
