3.5.3 Registration
To add more Antennas to a working Network Space, the new Antennas mustn't be assigned to any other Net. If a new
Antenna is already assigned to a Net, see chapter 'De-Registration > Antennas' to remove it from the current Net
before proceeding the registration.
New Antennas have disabled radio, if the Antenna is not known by the matrix.
· Connect the Antenna's 'AES67/Config' port to
the network switch. If a PoE+ switch is used, the
Antenna is also supplied with power.
· Alternatively, attach a separate DC power
supply to the Antenna's power connector.
After booting the display shows in the bottom
right the IP address of the Antenna (e.g.
192.168.41.151).

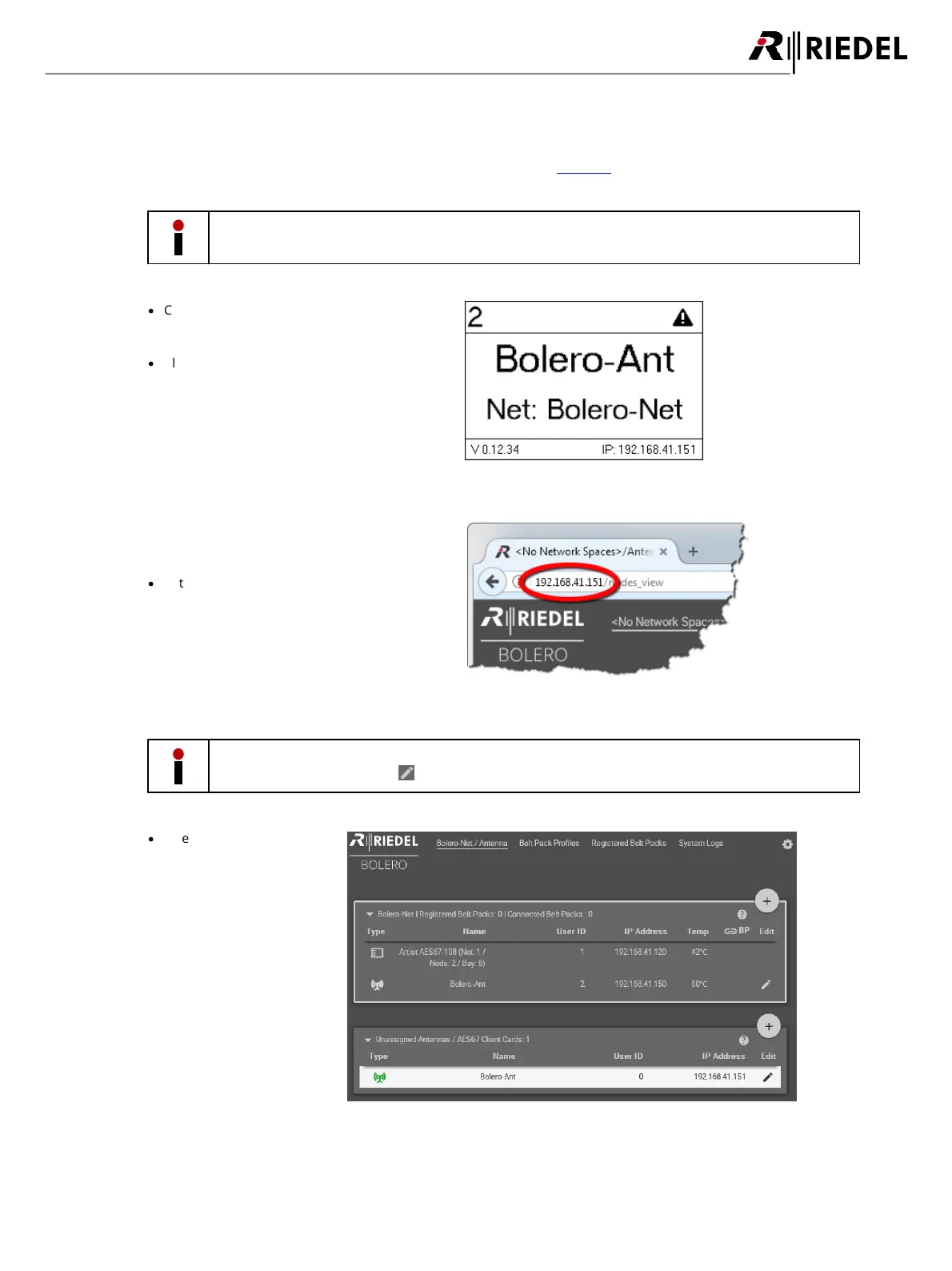

Figure 70: Antenna Display
Open the web interface of the Antenna to access
the configuration:
· Enter the IP address of a Bolero Antenna in the
Web-Browser (e.g. 192.168.41.151).
Figure 71: Web interface of the Antenna
Take care that the Antennas IP address is in the same IP range like the existing Net. The IP settings can be
modified in the web interface ( ) as well as in the Antennas' menu (IP Settings).
· Select the Antenna(s) to be
added to an existing
Network Space.
Selected elements will be
highlighted.
Figure 72: Selected new Antennas

Riedel Bolero Specifications

General

Encryption	AES-256
Type	Wireless Intercom System
Frequency Bands	1.9 GHz
Charging Time	3 hours
Protection Class	IP54
Operating Temperature	-10°C to +50°C
Connectivity	AES67
Beltpack Capacity per Antenna	10 beltpacks
Network	Ethernet
Headset Connector	XLR 4-pin
Power	12 V DC
Channel Bandwidth	1.728 MHz
Modulation	GFSK
Data Rate	1152 kbps
Power Supply	PoE (Power over Ethernet)
Power Consumption	15 watts
Dimensions (Base Station)	483 x 44 x 280 mm
Weight (Base Station)	3.5 kg
Battery Life	Up to 17 hours
Operating Range	300m (line of sight)
