Chapter 6 Operations and Measurements RIGOL
DS4000E User’s Guide 6-25

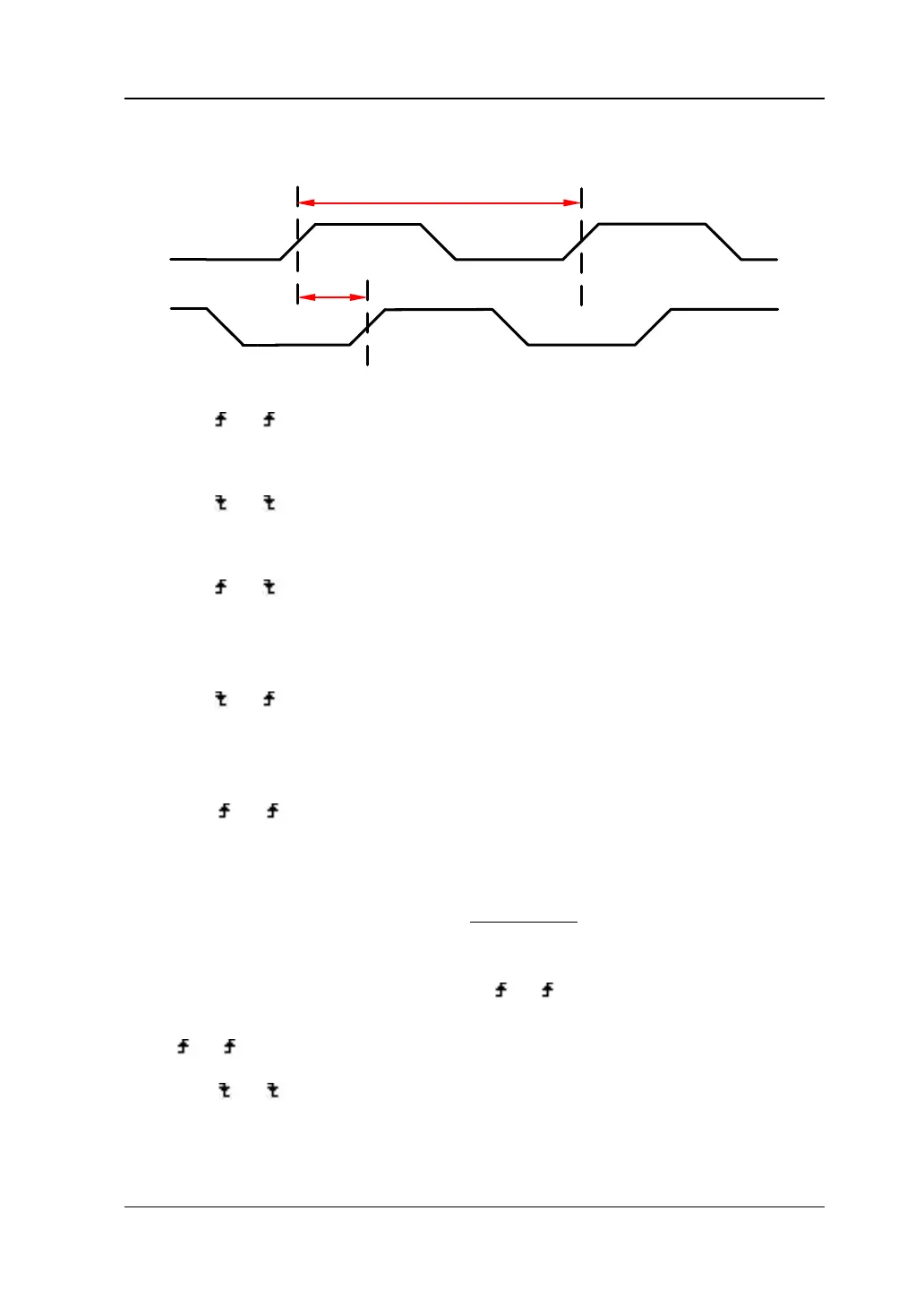

Delay and Phase Parameters
1. Dly A →B : the time difference (delay) between the threshold middle values
of the rising edges of source A and source B. Negative delay indicates that the
rising edge of source A occurred after the rising edge of source B.
2. Dly A
→B : the time difference (delay) between the threshold middle values
of the falling edges of source A and source B. Negative delay indicates that the
falling edge of source A occurred after the falling edge of source B.
3. Dly A
→B : the time difference (delay) between the threshold middle value
of the rising edge of source A and the threshold middle value of the falling edge
of source B. Negative delay indicates that the rising edge of source A occurred
after the falling edge of source B.
4. Dly A
→B : the time difference (delay) between the threshold middle values
of the falling edge of source A and the threshold middle value of the rising edge
of source B. Negative delay indicates that the falling edge of source A occurred
after the rising edge of source B.
5. Phs A
→B : the phase difference (expressed in degree) between the
threshold middle values of the rising edges of source A and source B. The
operation formula is:
°360×=
sourceA
RR
RR
Period
BDelayA
BPhaseA
Wherein,
RR
BPhaseA
denotes phase A →B ;
RR
BDelayA
denotes delay
A
→B ;
sourceA
Period
denotes the period of source A.
6. Phs A
→B : the phase difference (expressed in degree) between the
threshold middle values of the falling edges of source A and source B. The
operation formula is:
Period
Delay
Source A
Source B
