DS4000E User’s Guide 10-11
Chapter 10 Waveform Recording RIGOL

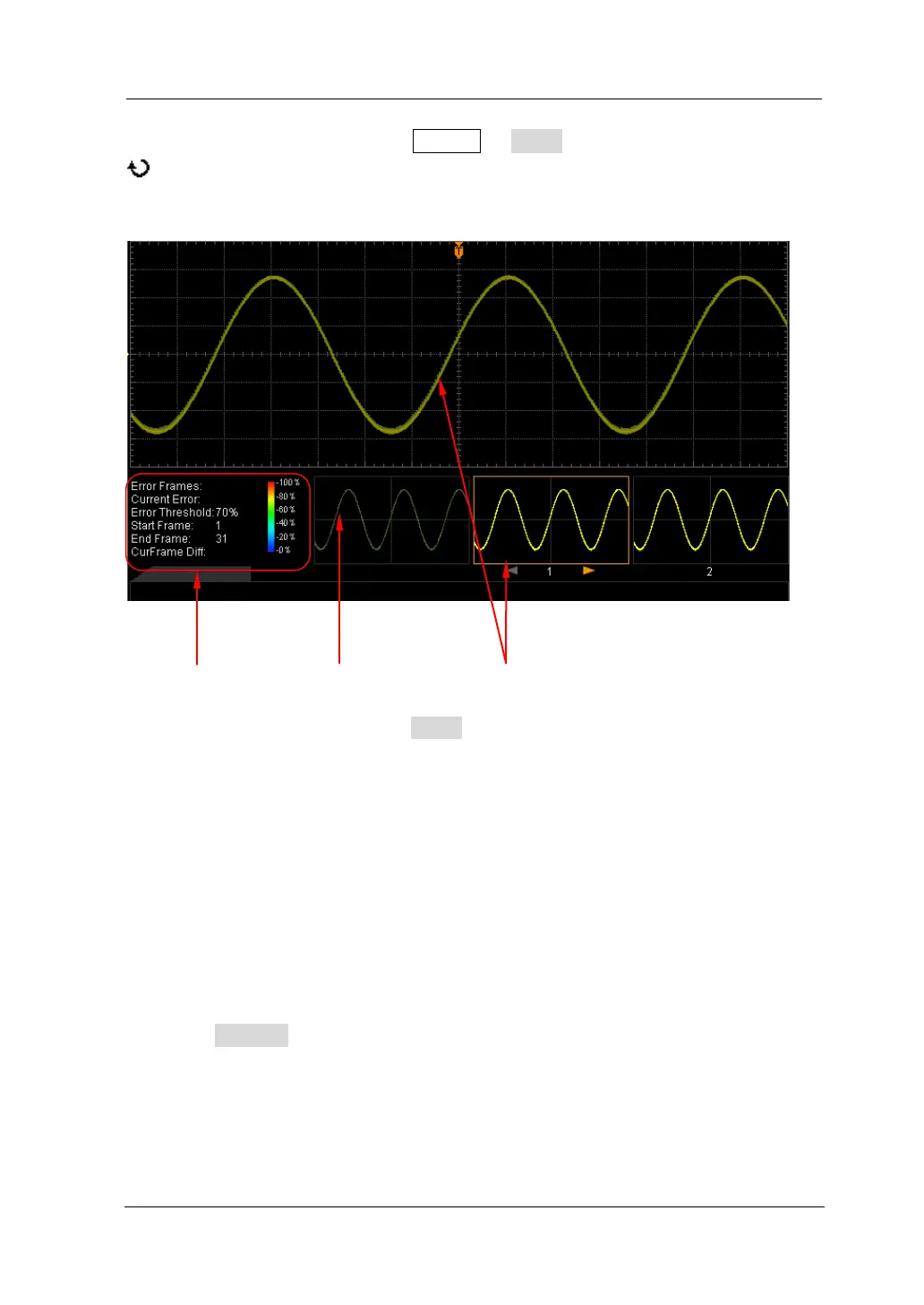

After waveform is recorded, press Record Mode; turn the multi-function knob
to select “Analyze” and press the knob. At this point, the screen is divided into
two display areas as shown in the figure below.
In the waveform recording menu (Mode is set to “Analyze”), you can set the related
parameters of waveform analysis, execute the analysis operation and view the
analysis results according to the instructions below.
Spesify the analysis mode and set the template or test mask
Specify the source of waveform analysis
Set the waveform analysis range, number of frames and threshold
Start the analysis
View the analysis results
1. Spesify the analysis mode and set the template or test mask
Press Analyze to select “Trace” or “Pass/Fail”.
Trace: perform analysis on the basis of the template set by users.
After selecting this mode, please set the desired template by referring to
“To Set the Template (Trace Mode)”.
Pass/Fail: perform analysis on the basis of the pass/fail test mask created
Settings and Results Templet Display Current Frame
To Next Page
