5. Data Bits Setting
Press Data Bits to set the number of bits of each frame of data. The range
available is from 4 to 32.
6. Endian Setting
Press Endian to select "LSB" or "MSB" and the default is "MSB".
7. Display-related Setting
Press Format to select the display format of the bus as Hex, Decimal, Binary or
ASCII.
Press Offset and use to adjust the vertical display position of the bus.
Press BusStatus to turn the bus display on or off.
8. Decoding Table
The decoding table displays the decoded data, the corresponding line number,
time and error information on the MOSI and/or MISO data line in table format. It
can be used to observe relatively longer decoded data to solve the problem that
some data could not be seen clearly on the screen. Note: When the MISO or
MOSI channel is set to "None", the information of the corresponding data line
will not be displayed in the decoding table.

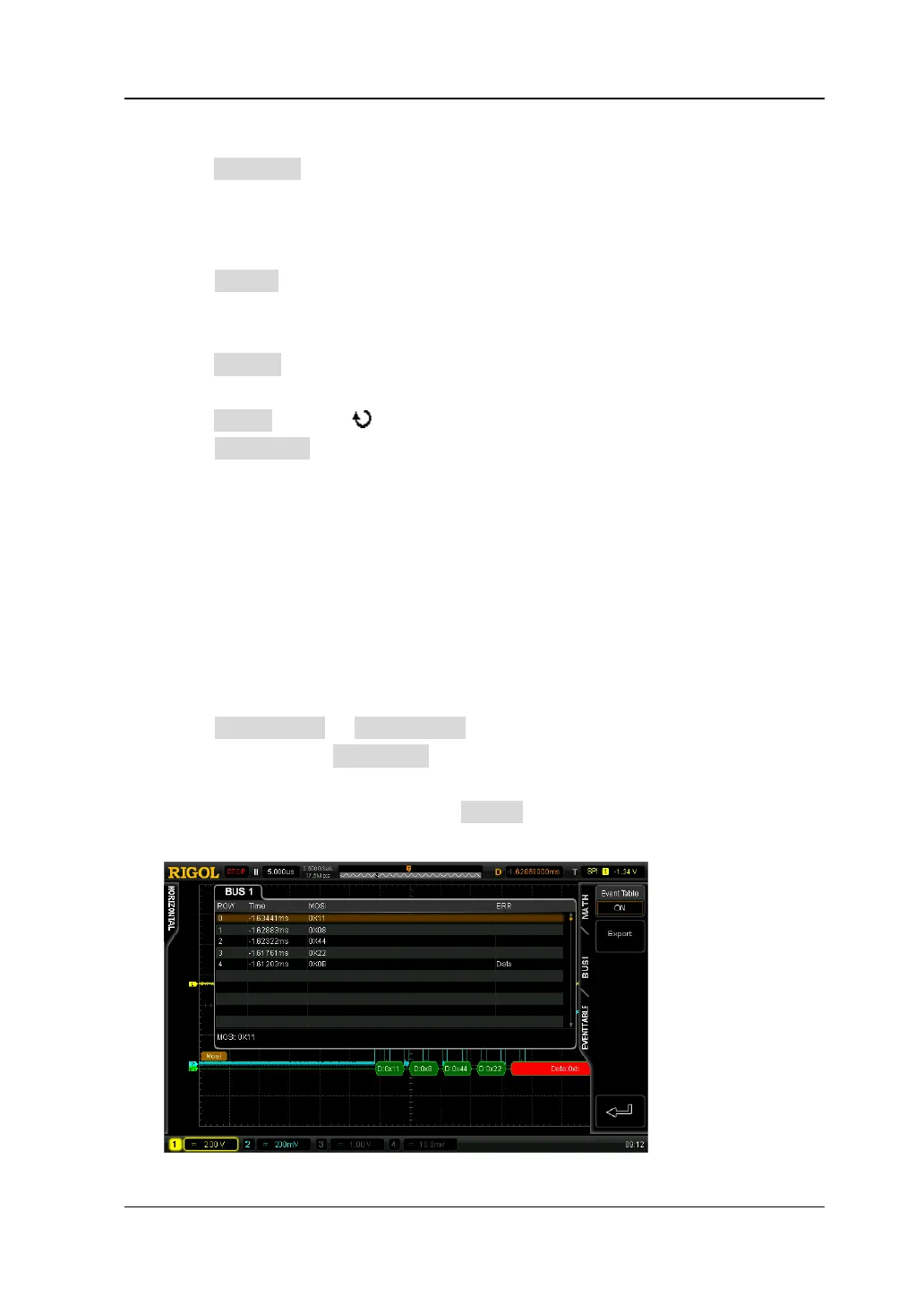

Press Event Table Event Table to select "ON" (note that this operation is
only available when BusStatus is set to "ON") to enter the decoding table
interface as shown in the figure below. If a USB storage device is currently
connected to the instrument, press Export to export the data table to the
external USB storage device in CSV format.
