RIGOL 6 To Make Measurements
6-16 DS6000 User’s Guide

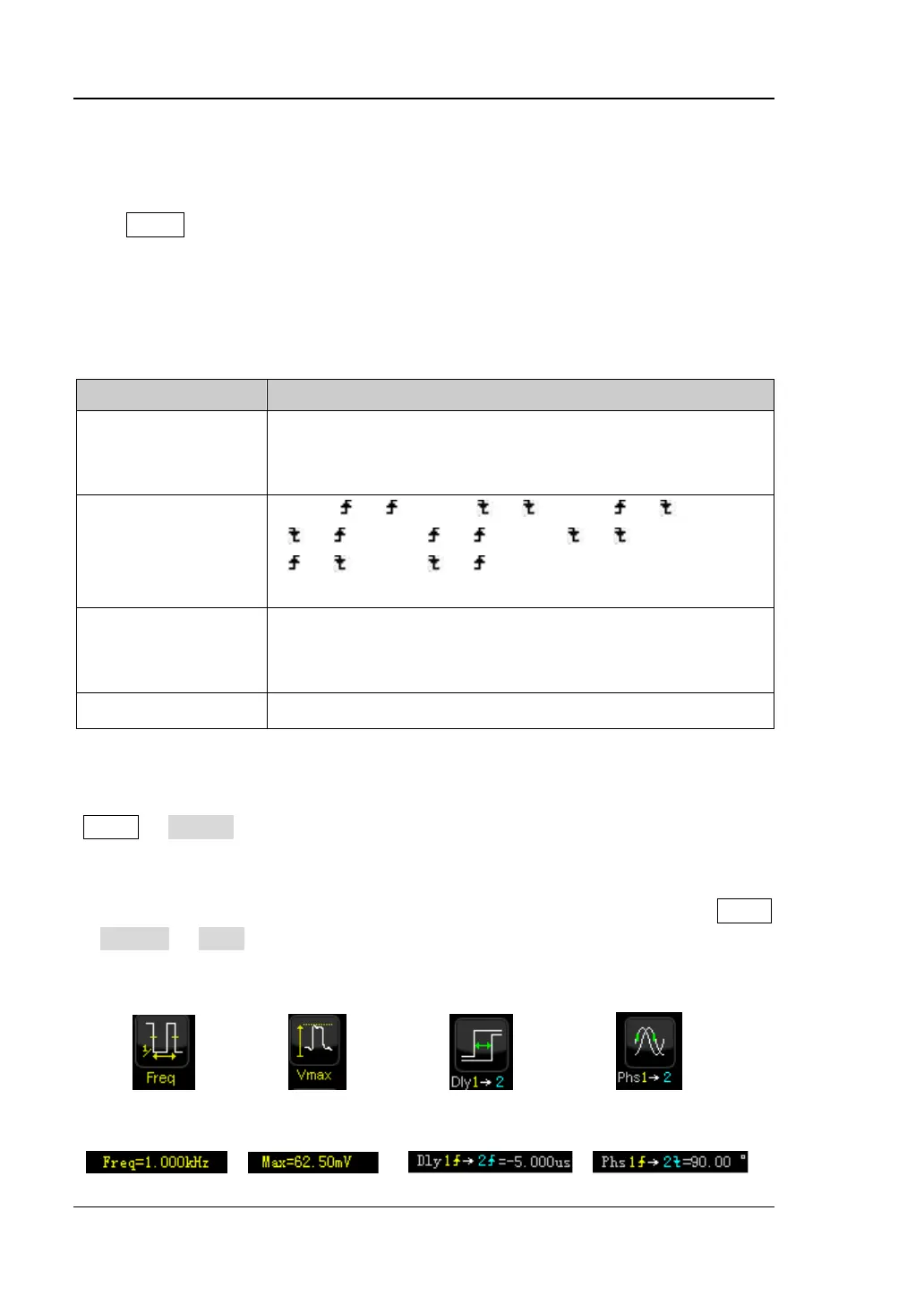

One-key Measurement
Press MENU at the left of the screen to turn on the measurement menu of the 29
parameters and then press the corresponding menu softkey to quickly realize
"One-key" measurement. The measurement result will be displayed at the bottom of
the screen. The 29 waveform parameters are as shown in the table below.
Table 6-5 29 Waveform Parameters
Parameter Type Parameter Name
Time Parameter
Period, Frequency, Rise Time, Fall Time, + Width, -Width,
+Duty Cycle, -Duty Cycle (please refer to "Time
Parameters")
Delay and Phase
Parameters
Delay A
→B , Delay A →B , Delay A →B , Delay
A
→B , Phase A →B , Phase A →B , Phase
A
→B , Phase A →B (please refer to "Delay and
Phase Parameters")
Voltage
Parameter
Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vavg, Vrms–N,
Vrms-1, Overshoot, Preshoot (please refer to "Voltage
Parameters")
Area Parameter Area, Period Area (please refer to "Area Parameters")
The icons of time, voltage and area parameter menu items and the measurement
results are always marked in the same color of the current measurement channel
(MEAS  Source) currently used. The delay and phase parameter menu items as
well as the measurement results are displayed in white; the numbers in the menu
items and results denote the source A and source B currently selected and the color
of the numbers are the same with the color of the channel currently selected (MEAS
 Setting  Type  "Delay" or "Phase"). For example,
Parameter Icons:
Measurement Results:
