RIGOL 12 Store and Recall
12-8 DS6000 User’s Guide
External Store and Recall
Before using external store and recall, make sure that a USB storage device is
connected correctly. External storage supports all the types of files in Storage but in
recall, "Picture" and "CSV" are not supported.
1. Save the specified type of file in the external USB storage device.
1) Connect the signal to the oscilloscope and obtain stable display.
2) Press SAVE  Storage to select "CSV" and press Save to turn on the
interface as shown in Figure d. Use to select "Disk E" and press down
to open the USB storage device.

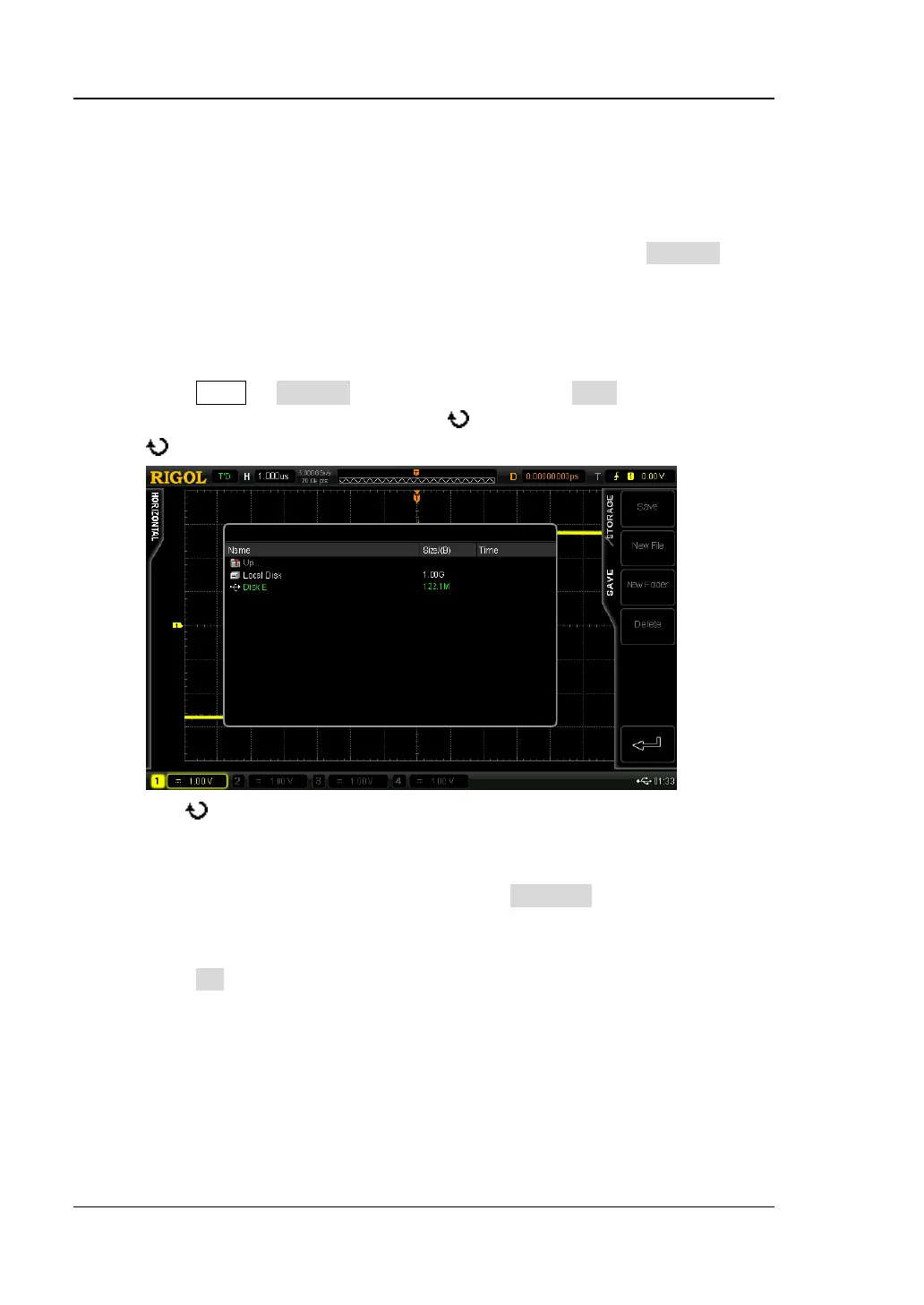

Figure d
3) Use
to select the desired storage position. Enable to store under the
root directory or in a certain folder under the root directory of the USB
storage device.
4) After the storage position is selected, press New File and create a new
filename by referring to the descriptions in "
To Create a New File or
Folder".
5) Press OK to execute the saving operation.
