Rigol DS6104 User Manual

RIGOL 14 Remote Control
14-6 DS6000 User’s Guide
Remote Control via LAN
1. Connect the device
Connect the oscilloscope to your LAN using a network cable.
2. Configure network parameters
Configure the network parameters of the oscilloscope according to the
description in "LAN Setting".
3. Search device resource

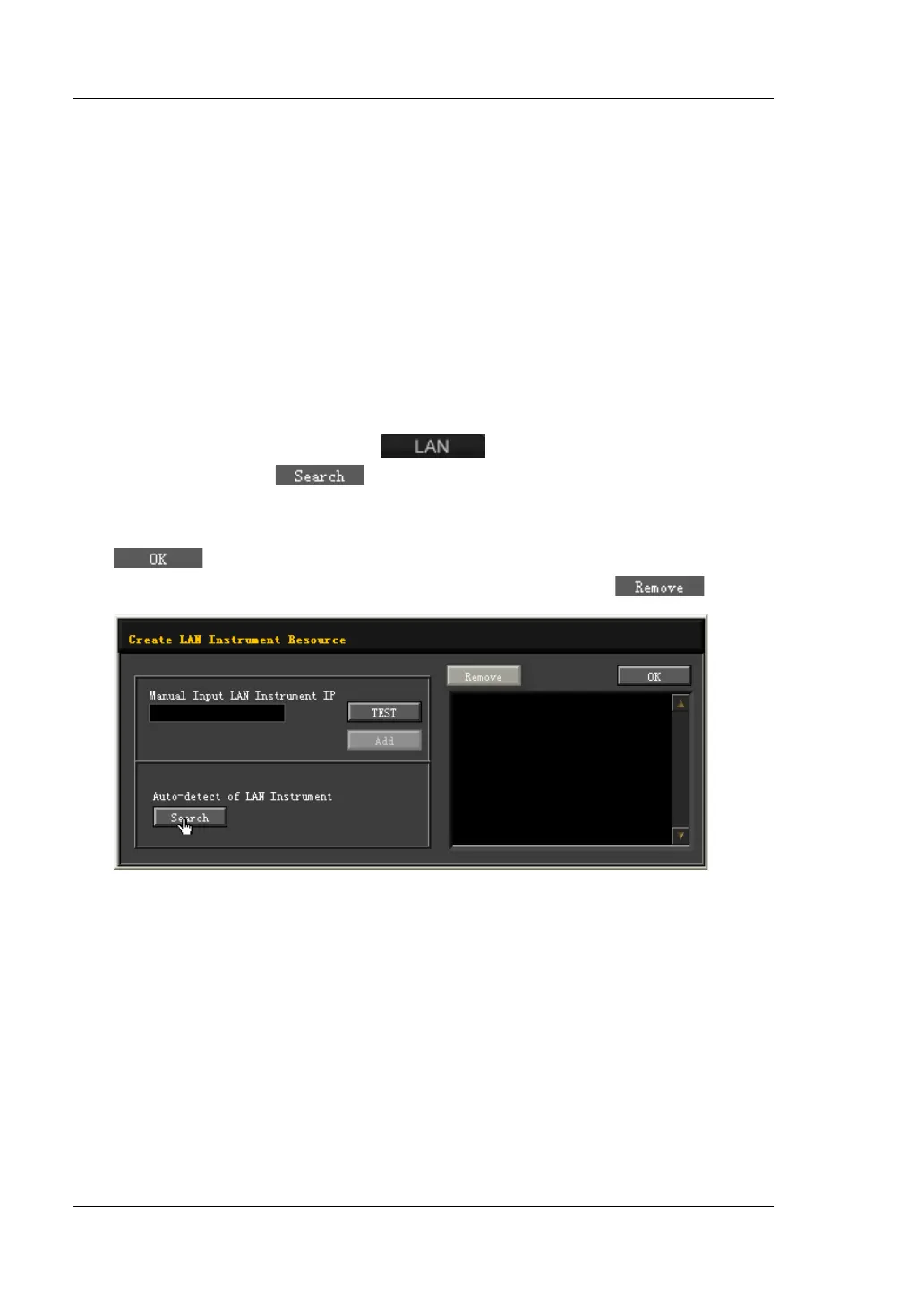

Start up Ultra Sigma and click
to open the panel as shown in the
figure below. Click
and the software will automatically search for
the instrument resource currently connected to the LAN; the name of the
instrument resource found is displayed at the right of the panel. Click
to add the resource. Note that if you want to remove the unwanted
resource, click the resource name to select it and then click
.
4. View device resource
The resource found will appear under the "RIGOL Online Resource" directory.
For example, DS6104 (TCPIP::172.16.3.161::INSTR).
5. Control the instrument remotely
Right click the resource name "DS6104 (TCPIP::172.16.3.161::INSTR)" to select
"SCPI Panel Control" to turn on the remote command control panel from which
you can send commands and read data.
