2 To Set the Vertical System RIGOL
DS6000 User’s Guide 2-13
Channel Label
You can modify the labels used to mark the waveforms of the analog channels (CH1
to CH4) at the left side of the screen. The label is the number of the channel (e.g.
)
by default. The new label can include uppercase English letters (A to Z), lowercase
English letters (a to z), numbers (0 to 9), underlines and spaces and the length
cannot exceed 4 characters.

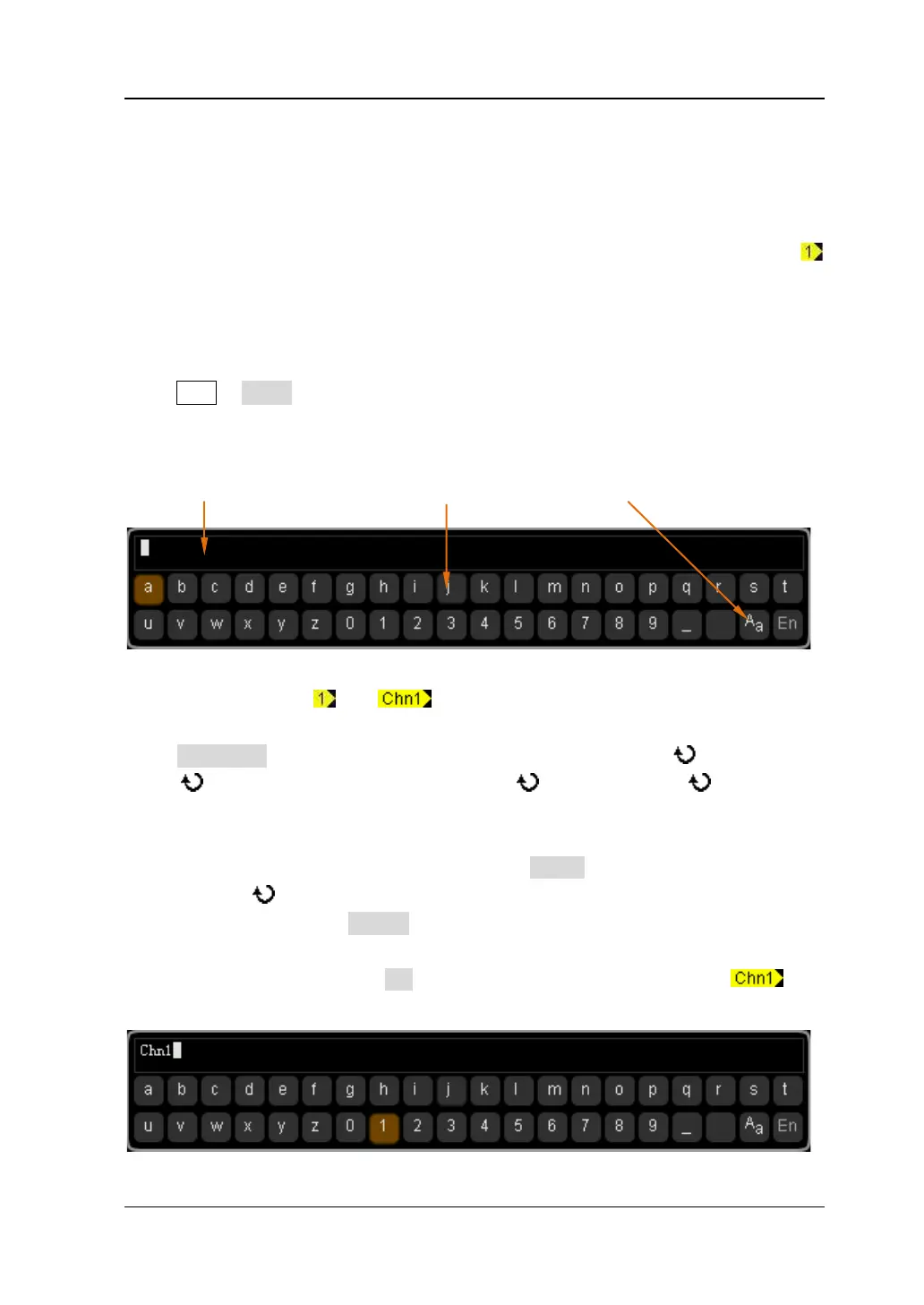

Press CH1 Label to enter the label modification interface. As shown in the figure
below:
For example, change "
" to " ".
Press Keyboard to select the "Keyboard" area. Select "
A
a" using and press
down
to switch it to "
a
A". Select "C" using and press down to input the
character. Use the same method to input "hn1".
To modify or delete the inputed character, press Name to select the "Name Input
Area" and use
to select the character to be modified or deleted. Reenter the
desired character or press Delete to delete the selected character.
After finishing the input, press OK and the channel label will change to " ".
Name Input Area Keyboard Upper-lower Case Switch
