Rigol DS6104 User Manual

RIGOL 1 Quick Start
1-22 DS6000 User’s Guide

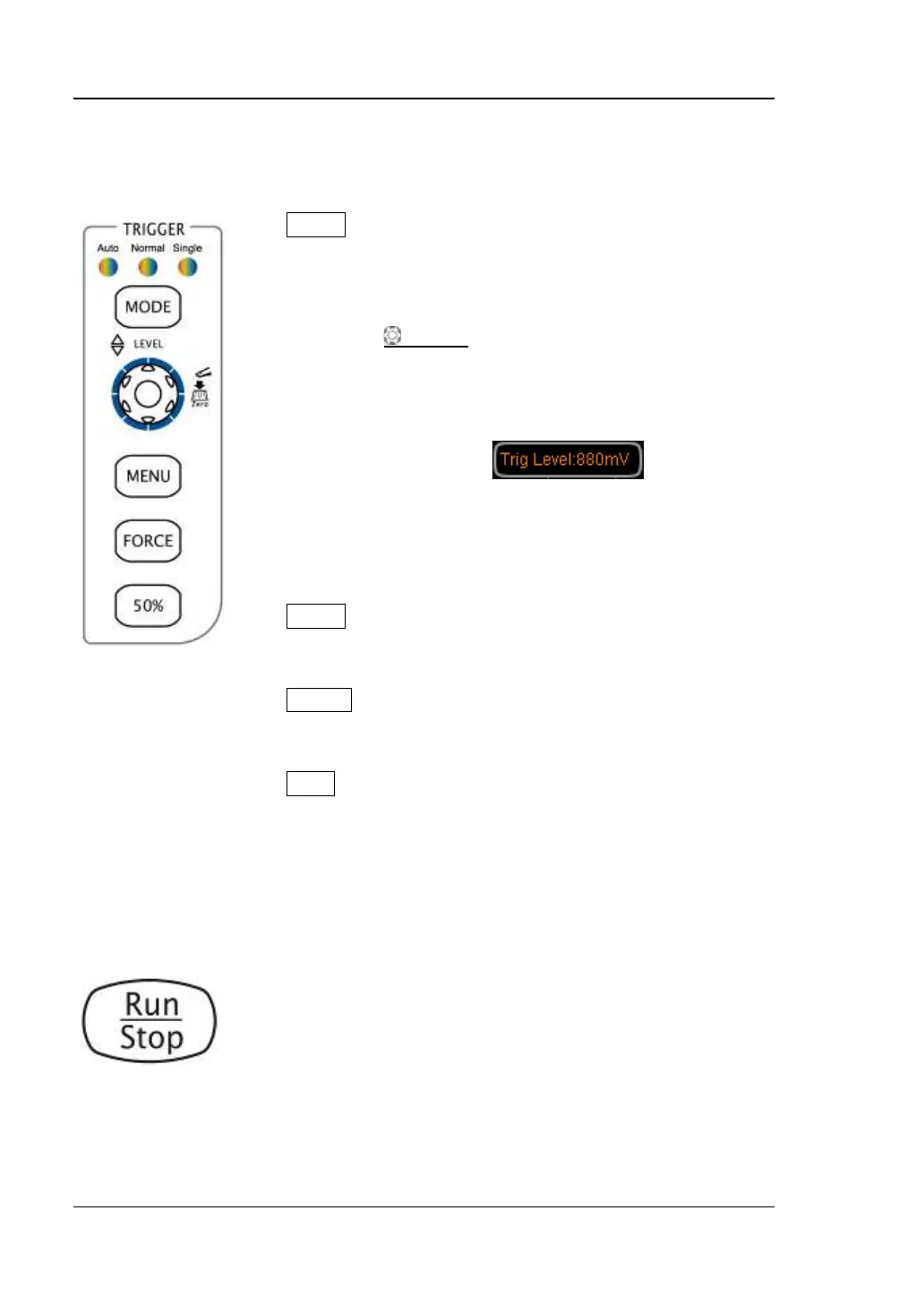

TRIGGER
MODE
: press this key to switch the trigger mode to
Auto
,
Normal or Single and the corresponding state backlight
of the current trigger mode would be illuminated.
TRIGGER
LEVEL: modify the trigger level. Turn
clockwise to increase the level and turn counterclockwise
to reduce the level. During the modification, the trigger
level line moves up and down and the value in the trigger
level message box (e.g. ) at the
lower-left corner of the screen changes accordingly. Press
down the knob to quickly reset the trigger level to zero
point.
MENU: press this key to turn on the trigger operation
menu. This oscilloscope provides various trigger types.
FORCE: in Normal and Single trigger modes, press this
key to generate a trigger signal forcefully.
50%: press this key to set the trigger level to the vertical
midpoint of the trigger signal amplitude.
Run/Stop
Press this key to set the state of the oscilloscope to "Run"
or "Stop".
In "Run" state, the key is illuminated in yellow.
In "Stop" state, the key is illuminated in red.
