1 Quick Start RIGOL
DS6000 User’s Guide 1-27
User Interface
DS6000 oscilloscope provides 10.1 inch, WVGA (800*480) 160,000 color TFT LCD.
What is worth mentioning is that the 14-grid ultra-wide screen makes you view
"longer" waveform.

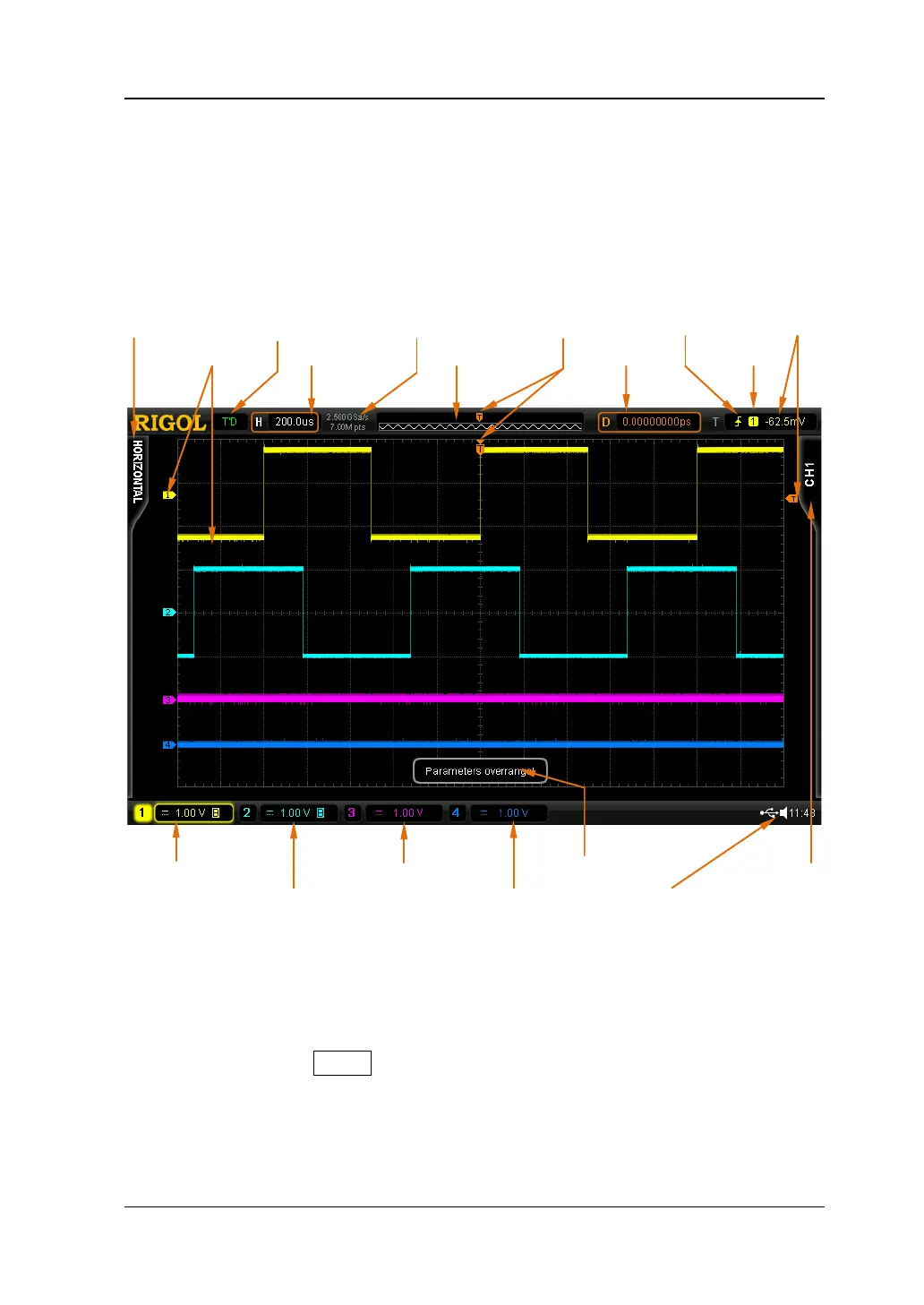

Figure 1-13 User Interface
1. Auto Measurement Items
Provide 16 horizontal (HORIZONTAL) and 13 vertical (VERTICAL) measurement
parameters. Press MENU at the left of the screen continuously to switch among
the horizontal measurement items and vertical measurement items or fold the
measurement menu. When the measurement menu is unfolded, pressing the
measurement menu softkey can turn on the auto measurement function of the
1 3 5 7 9 11
2 4 6 8 10
12 14 16 18
13 15 17
