RIGOL 1 Quick Start
1-28 DS6000 User’s Guide
corresponding parameter.
Note: When the measurement menu is unfolded, the following symbols might
appear in the grid at the lower-left corner of the screen.
Denote that the current menu includes multiple pages. You can press
menu page down
key at the left of the screen to turn on the next
page of the menu.
Denote that the current menu includes multiple pages. You can press
menu page up key at the left of the screen to turn on the previous
page of the menu.
2. Channel Label/Waveform
Different channels are marked by different colors and the color of the
waveform complies with the color of the channel label.
3. Running Status
Available states include RUN, STOP, T’D (triggered), WAIT and AUTO.
4. Horizontal Time Base
 Represent the time per grid on the horizontal axis on the screen.
 Use HORIZONTAL
SCALE to modify this parameter. The range
available is from 500 ps to 1.000 ks.
5. Sample Rate/Memory Depth
 Display the current sample rate and memory depth of the oscilloscope.
 Use HORIZONTAL
SCALE to indirectly modify the sample rate
and/or memory depth.

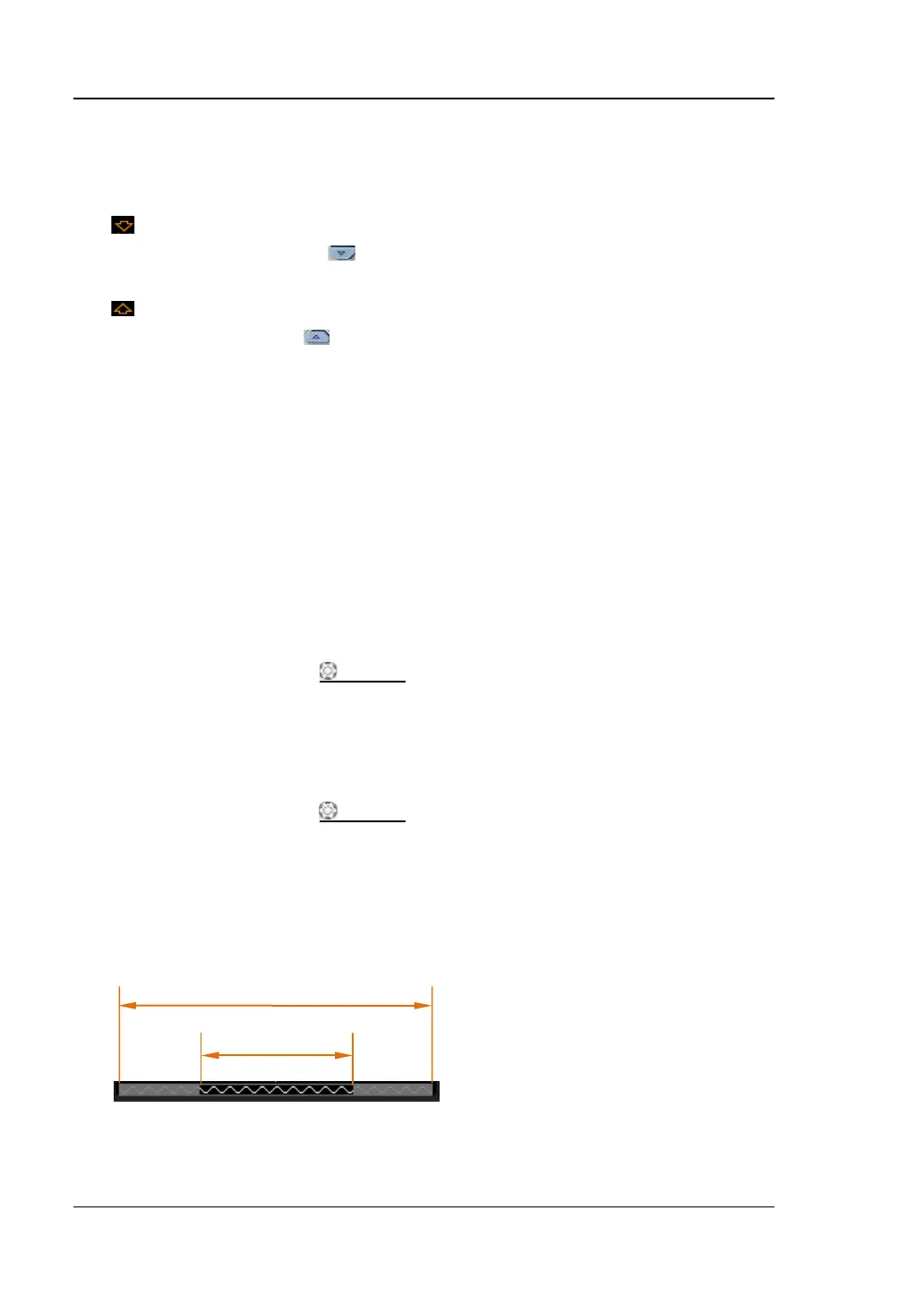

6. Waveform Memory
Provide the schematic diagram of the memory position of the waveform
currently on the screen.
Waveform on the
screen
Waveform in the memory
