RIGOL 1 Quick Start
1-10 DS6000 User’s Guide
After connecting the passive probe, you need to perform probe function inspection
and probe compensation before making measurements. For the detailed steps, refer
to "Function Inspection" and "Probe Compensation".

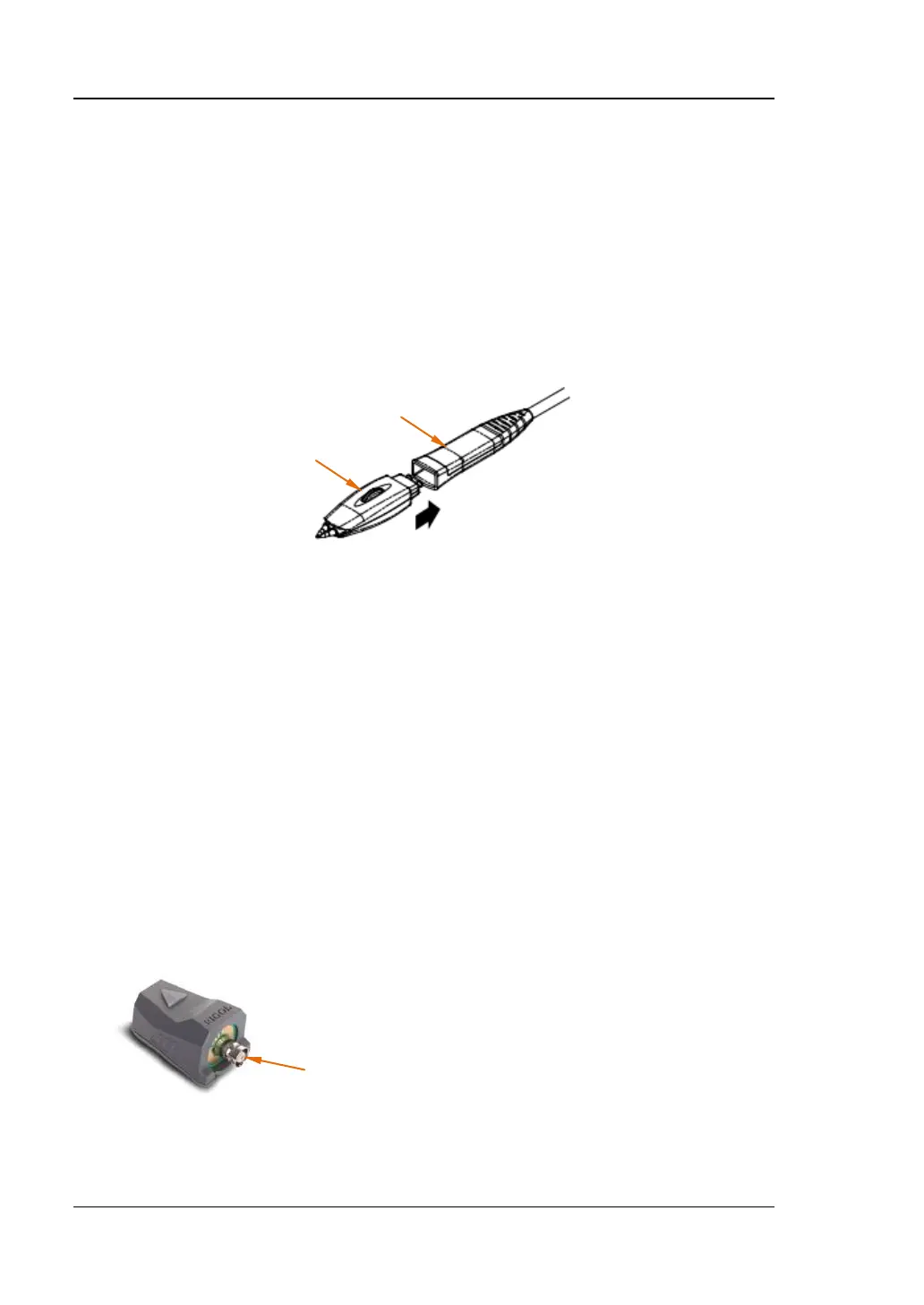

To connect the active probe (take RP7150 (with differential probe front)
as an example):
1. Connect the probe front with the active probe amplifier.
2. Connect the other end of the active probe amplifier to the analog channel input
terminal or external trigger input connector of the oscilloscope on the front
panel (please refer to "Front Panel Overview") as shown in Figure 1-7. Note
that you need to push the probe to the due position to lock it firmly.
3. Connect the probe front to the circuit under test using the probe auxiliary
equipment.
After connecting the active probe, you can perform probe calibration and offset
voltage adjustment according to your need. For the detailed steps, refer to "Probe".
To connect the Tek probe:
1. Insert the Tek probe to one end of T2R1000 adaptor correctly.
Active Probe Amplifier
Probe Front
Connect the Tek Probe
