Output Connectors
I / O t e r m i n a l s
1
2
3
4
5
6
7
8
9
1 0
4 8 0 9
A l l o w a b l e l o s s :
M a x . i m p r e s s e d v o l t a g e :
M a x . c u r r e n t :
3 0 0 m W
D C 2 4 V
D C 6 0 m A
I/O Connector
This input/output connector serves for input of control signals and input/output
of measurement data.
The following types of cable can be connected.
• Printer cable: CC-93 (for DPU-414)
CC-93A (For CP-10, CP-11)
• Interface cable: CC-92
For communication with a computer
• Comparator output cable: CC-94
When the level set on menu screen 3/5 (page 40) is exceeded,
comparator signal is output for at least 1 second.
This is an open collector output.
The level setting range is Off → 30 dB to 130 dB (1-dB steps) → Off

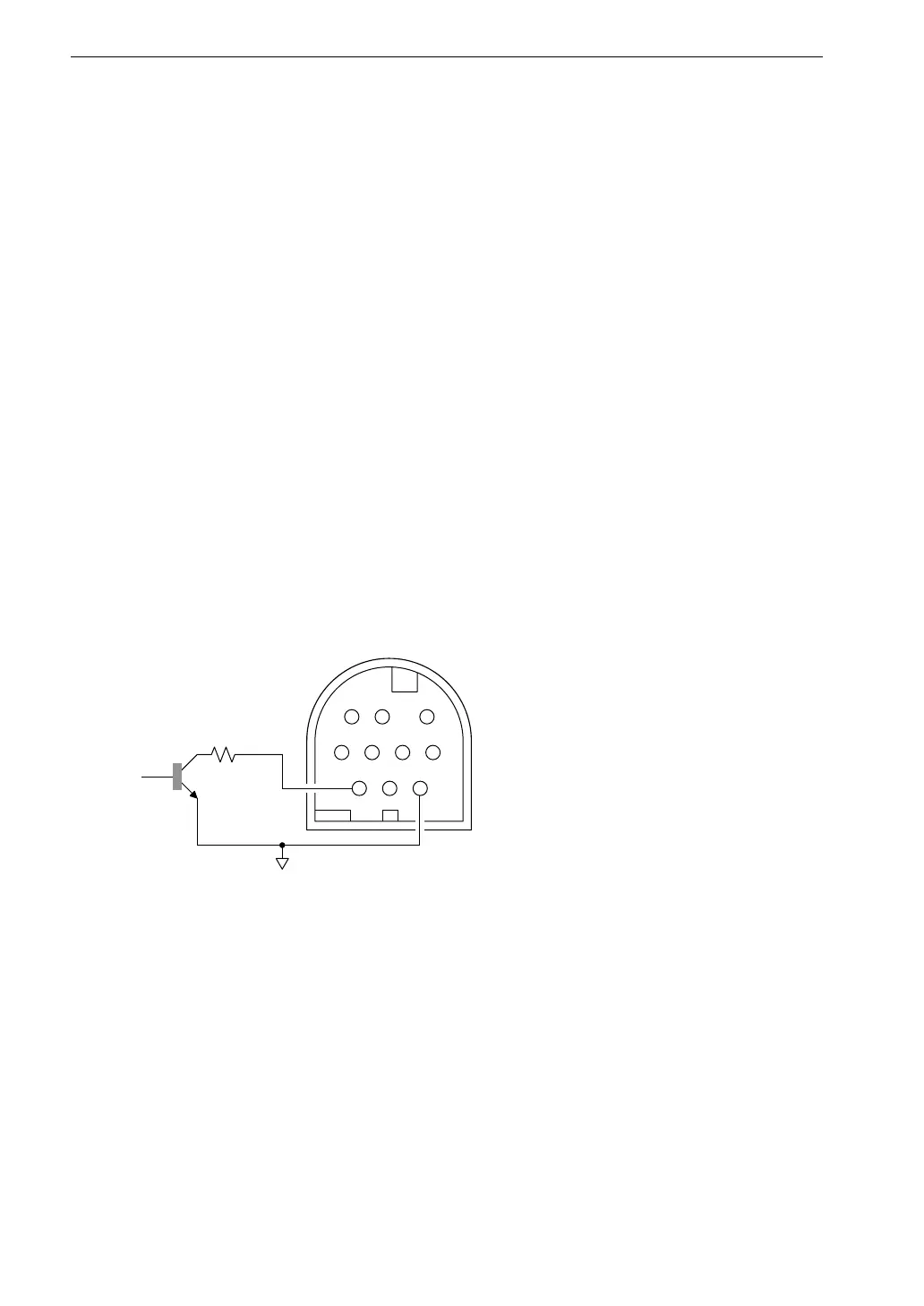

The comparator output diagram is shown below.
