Rion NL-21 - Connection to a Printer (DPU-414, CP-11, CP-10)

17
Preparations
Connection to a Printer (DPU-414, CP-11, CP-10)

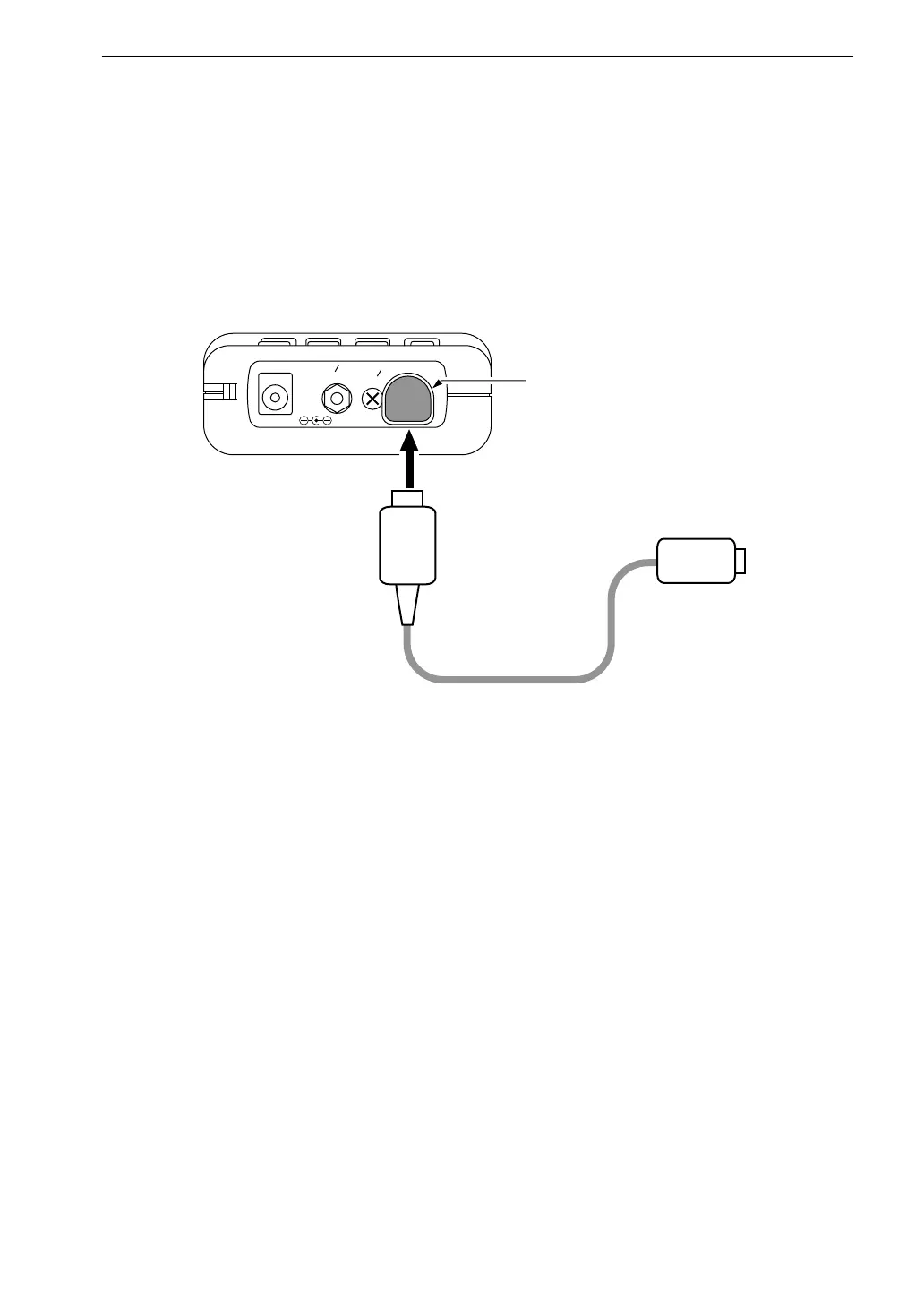

The I/O port on the bottom of the unit can be used for connection of an optional
printer (DPU-414, CP-11, CP-10). Use the optional printer cable CC-93 or
CC-93A to connect the I/O port of the unit to the serial input of the printer.
Use CC-93 for DPU-414.
Use CC-93A for CP-11 or CP-10.
P O W E R
A C
D C
O U T
I
O
I / O c o n n e c t o r
P r i n t e r c a b l e C C - 9 3 / C C - 9 3 A
T o s e r i a l i n p u t o f p r i n t e r
D P U - 4 1 4 / C P - 1 1 / C P - 1 0
