Preparations
Important
Switches 7 and 8 of DIP switch bank 2 of printer
CP-11 are set at the factory and should not be
changed. Otherwise, correct printing may not
be possible.
Setting the software DIP switches of the CP-11/CP-10
Set the baud rate of the sound level meter to 9600 bps on menu screen 3/5.

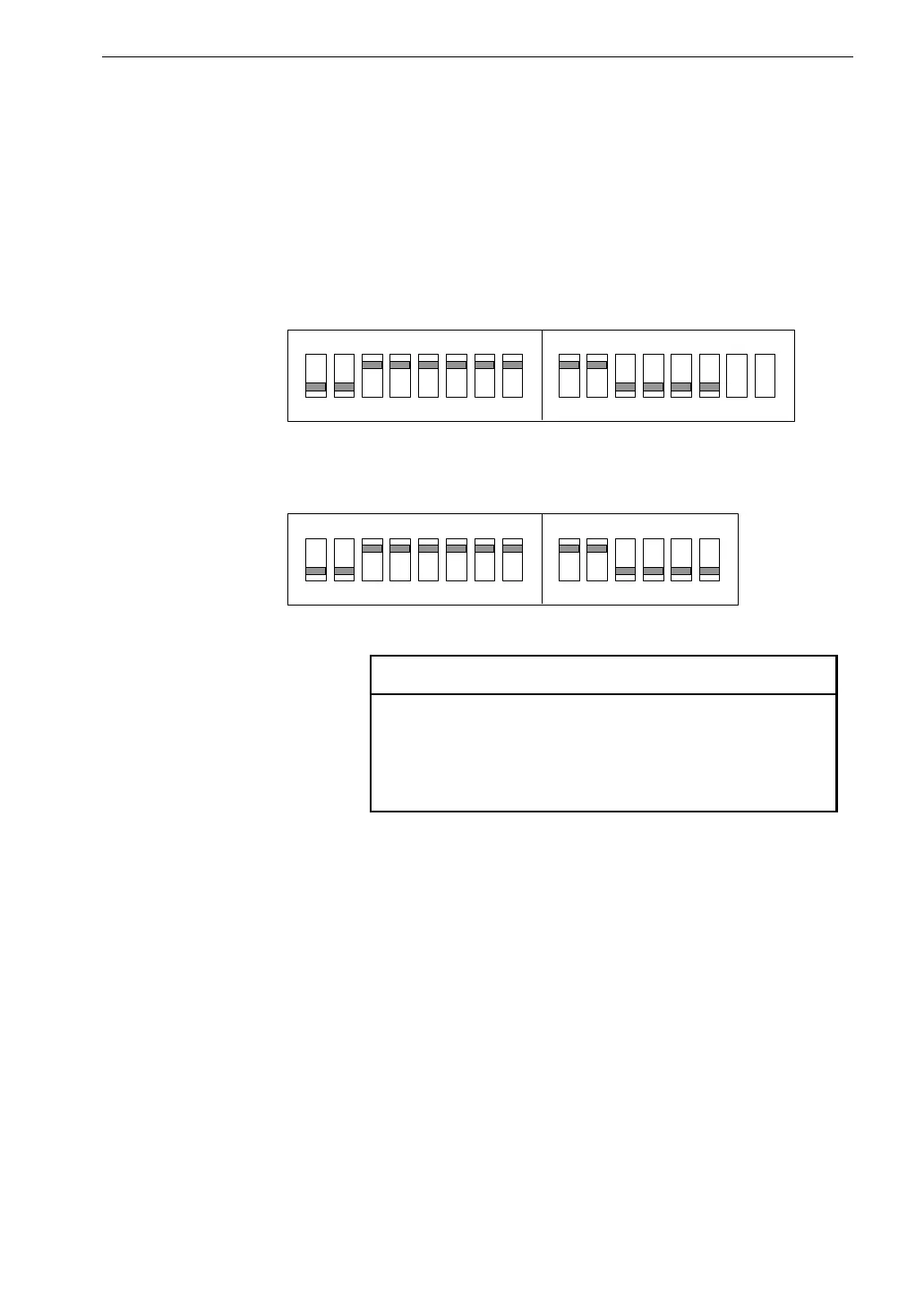

Set the DIP switches of the printer as follows.
1 2 3 4 5 6 7 8
O N
1 2 3 4 5 6
O N
7 8
1 2 3 4 5 6 7 8
O N
1 2 3 4 5 6
O N
C P - 1 1
C P - 1 0
D I P s w i t c h b a n k 1
( 8 s w i t c h e s )
D I P s w i t c h b a n k 2
( 8 s w i t c h e s )
D I P s w i t c h b a n k 1
( 8 s w i t c h e s )
D I P s w i t c h b a n k 2
( 6 s w i t c h e s )
