46
Trigger Functions
Input level: Set the SOURCE item on the TRIGGER menu to
LEVEL.

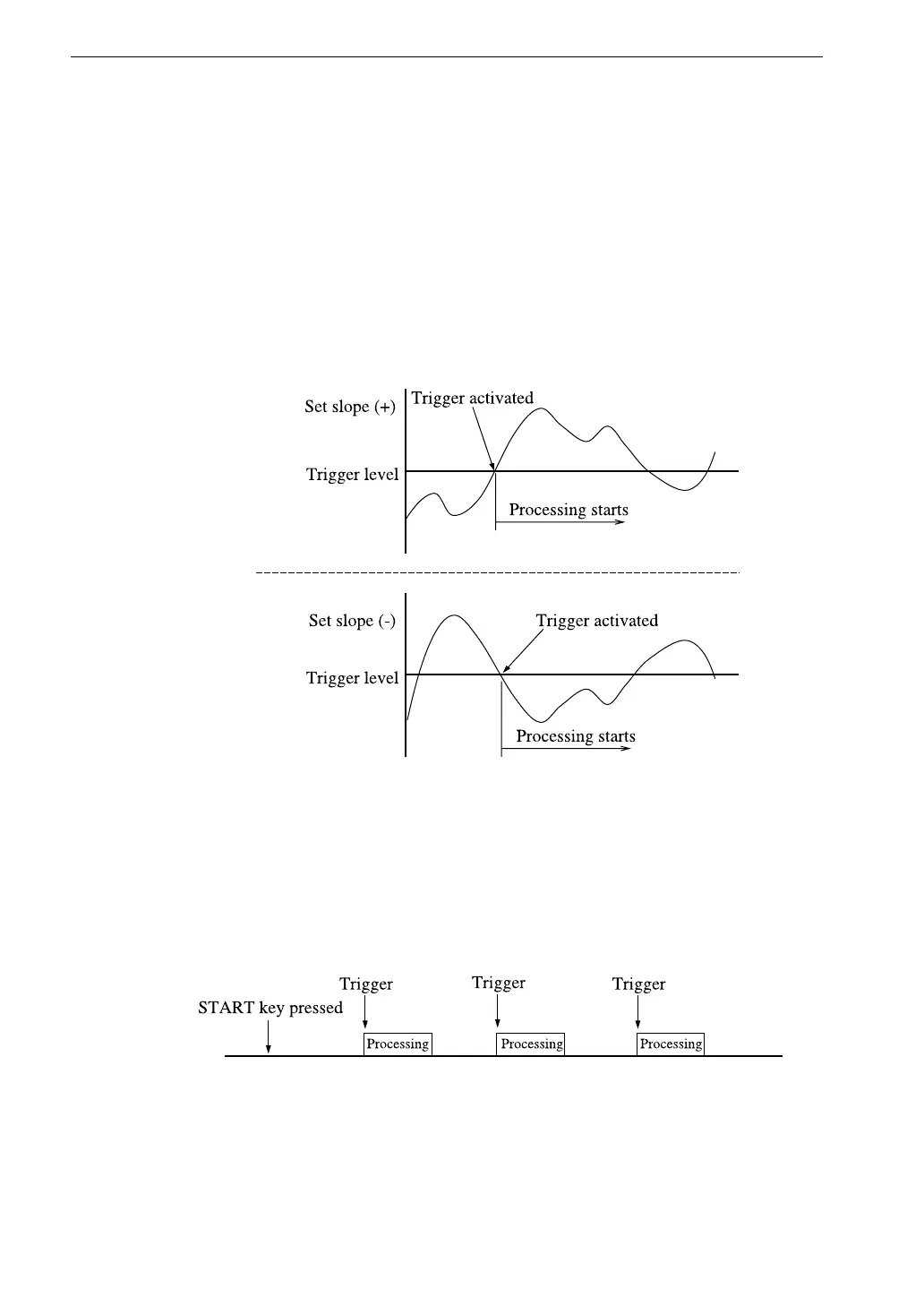

Trigger is activated when the time waveform crosses
the set level. The level can be set in steps of 1/8 of the
full-scale unilateral amplitude, and the slope can also
be selected, to determine whether triggering occurs when
the waveform crosses the level from above or below.
Trigger operation
Free-run: Processing continues regardless of trigger state.
Repeat: Processing is carried out for each trigger occurrence.
