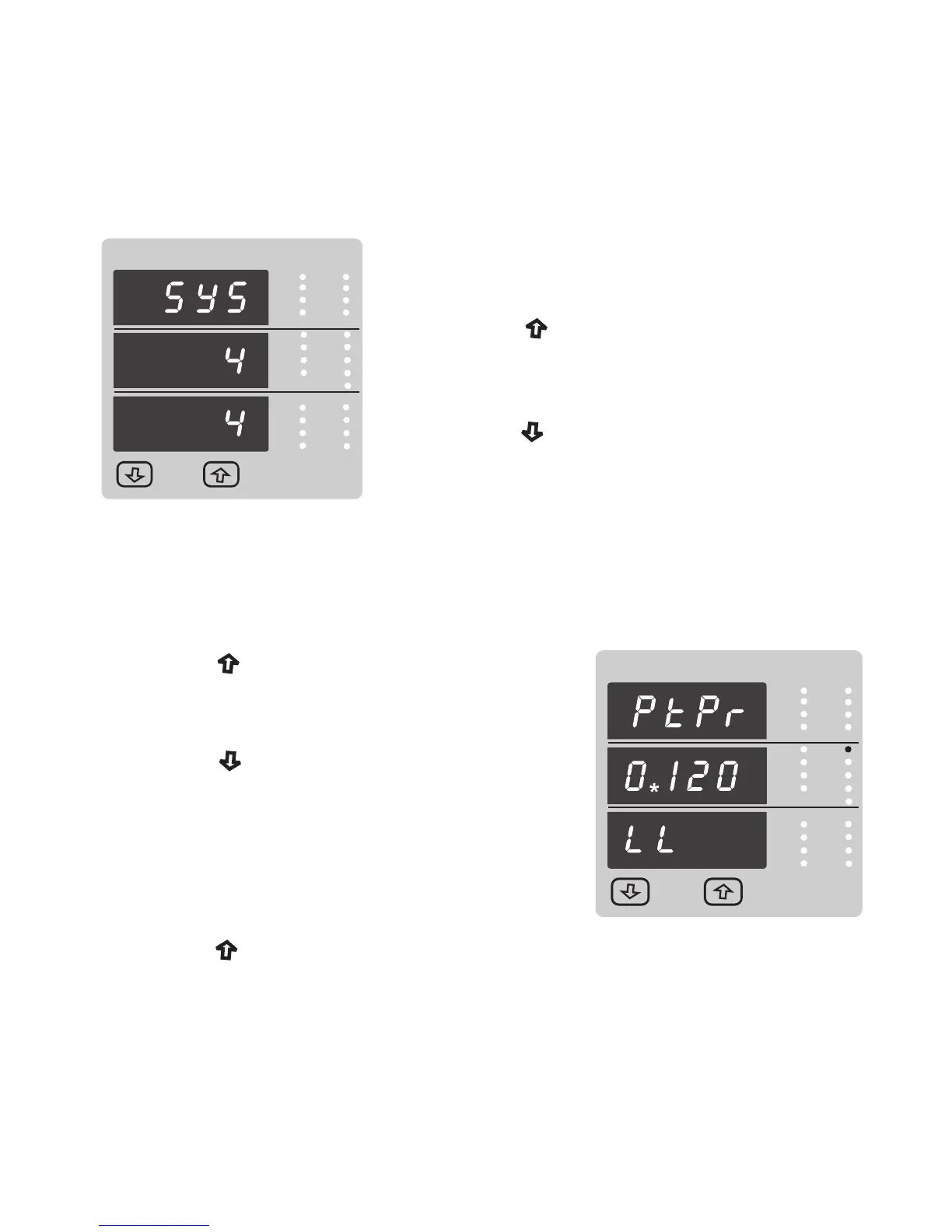

This screen will only appear following the edit of
system type. If system type is to be Downed again,
Pressing the “ Down” key will return to the system type
edit stage by blanking the bottom line of the display
Pressing the “ Up” key sets the displayed value and
will advance to “Potential Transformer Primary Value
Edit” menu. (See section 3.2.2)
System Type Confirmation
Pressing the “ Up” key accepts the present value
and advances to the “potential Transformer secondary
Value edit” menu. (See Section 3.2.3)
Pressing the “ Down” key will enter the “Potential
Transformer Primary Value Edit” mode.
Initially the “multiplier must be selected, pressing the “
Down” key will move the decimal point position to the
right until it reaches # # # .# after which it will return to
#. # # #.
Pressing the “ Up” key accepts the present
multiplier (decimal point position) and advances to the
“potential Transformer primary Digit Edit” mode.
3.2.2 Potential Transformer Primary Value
The nominal full scale voltage which will be displayed as the Line to Line voltages for all
system types. The values displayed
represent the voltage in kilovolts (note the x1000 enunciator).
VRY
KVAr
Sys
V
KW
VBR
Angle
Max
x1000
KVArh
x1000
IN
Ph R
P.F.
KWh
Ph B
A
VYB
KVA
Min
x1000
Hz
KVAh
Ph Y
%THD
x1000
Hz
KVAh
Ph Y
%THD
VRY
KVAr
Sys
V
KW
VBR
Angle
Max
x1000
KVArh
x1000
IN
Ph R
P.F.
KWh
Ph B
A
VYB
KVA
Min
x1000
Hz
KVAh
Ph Y
%THD
x1000
Hz
KVAh
Ph Y
%THD
