Rish Master 3430 User Manual

Pressing “ Up” key set displayed value and
will advance to Pulse rate (see section 3.2.15)
Pulse Duration Confirmation.
This screen will only appear following an edit of the
Pulse duration.
pressing the “ Down” key will re-enter the “Pulse
Duration Edit” mode.

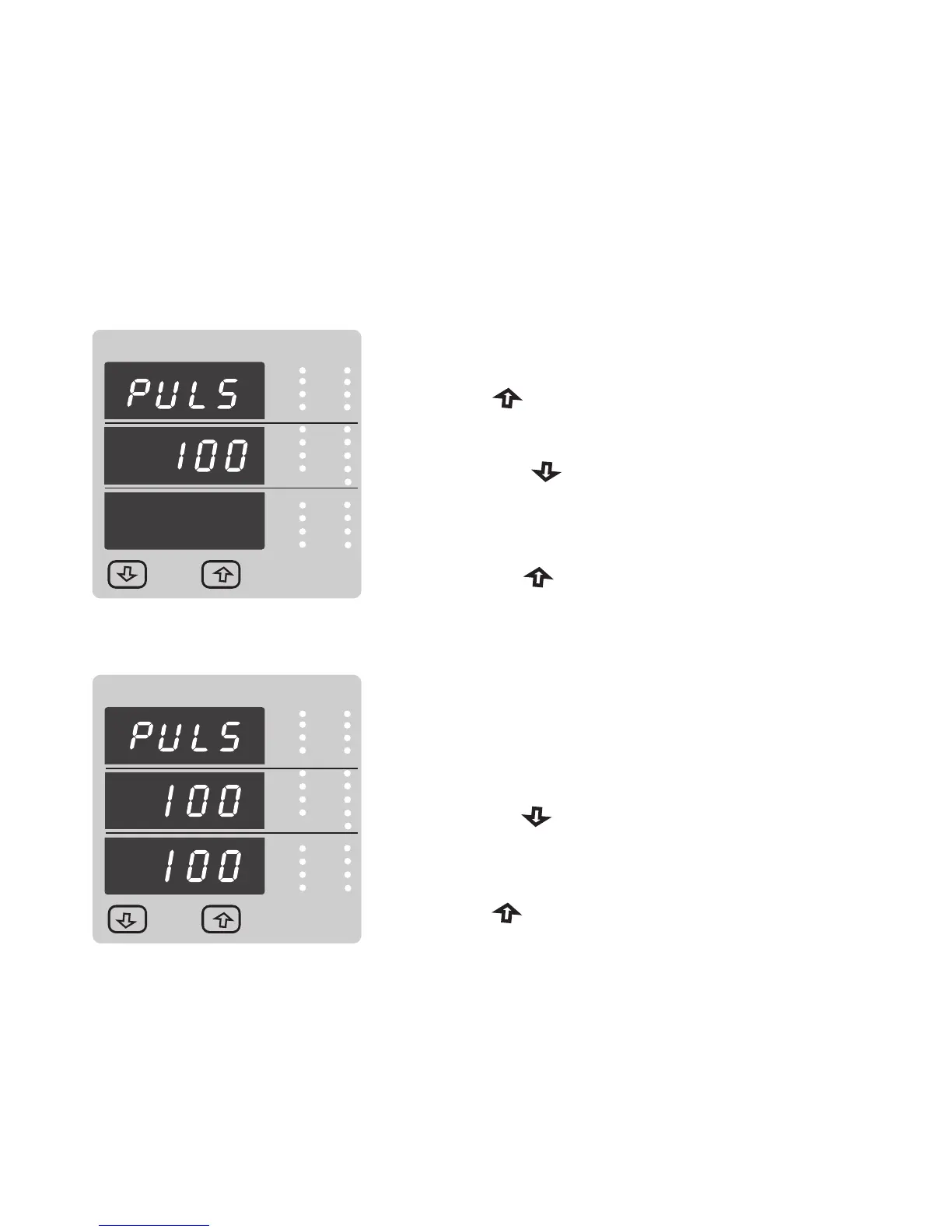

3.2.14 Pulse Duration :
This screen applies to the Relay Pulsed output only.
This screen allows the user to set Relay energise time in milliseconds.
Pressing “ Up” key accepts the present value and
advance to the Pulse rate (see section 3.2.15).
Pressing the “ Up” key will select the value and
advances to “Pulse Duration Confirmation”.
Pressing the “ Down” key will enter the “Pulse
Duration Edit” mode and scroll the value through
60, 100, 200 and wrapping back to 60.
Pulse Duration Edit.
