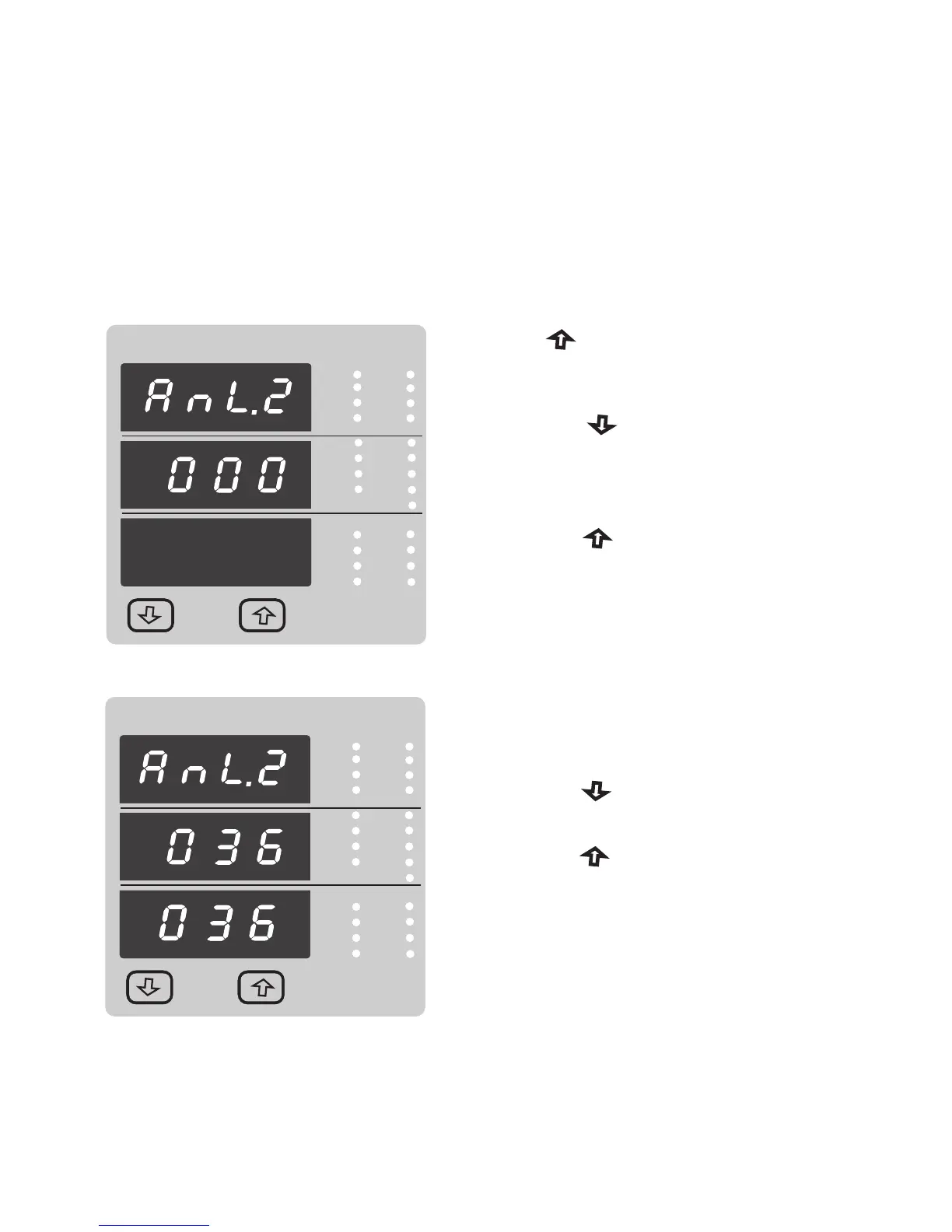

3.2.17 Analog Output 2 Selection : ( Optional )
This screen is for analog output 2 only . It allows the user to set analog output 2 to
corresponding measured parameter . Refer table “ Parameter for Analog output “.
Pressing “ Up” key accepts the present value and
advances to Energy update rate screen.
Pressing the “ Down” key will enter the “ Analog
output 2 Edit” mode and scroll the values, as per
Table “ Parameter for Analog output”
Pressing the “ Up” key advance to the Analog
output 2 confirmation screen .
A
VYB
KVA
Min
x1000
Hz
KVAh
Ph Y
%THD
x1000
Hz
KVAh
Ph Y
%THD
VRY
KVAr
Sys
V
KW
VBR
Angle
Max
x1000
KVArh
x1000
IN
Ph R
P.F.
KWh
Ph B
VRY
KVAr
Sys
V
KW
VBR
Angle
Max
x1000
KVArh
x1000
IN
Ph R
P.F.
KWh
Ph B
Pressing the “ Down” key will re-enter the
“ Analog output 2 Edit”
Analog output 2 Confirmation :
Pressing the “ Up” key sets the displayed value
and will advances to Energy update rate screen.
A
VYB
KVA
Min
x1000
Hz
KVAh
Ph Y
%THD
x1000
Hz
KVAh
Ph Y
%THD
