3.2.5 Current Transformer Secondary Value

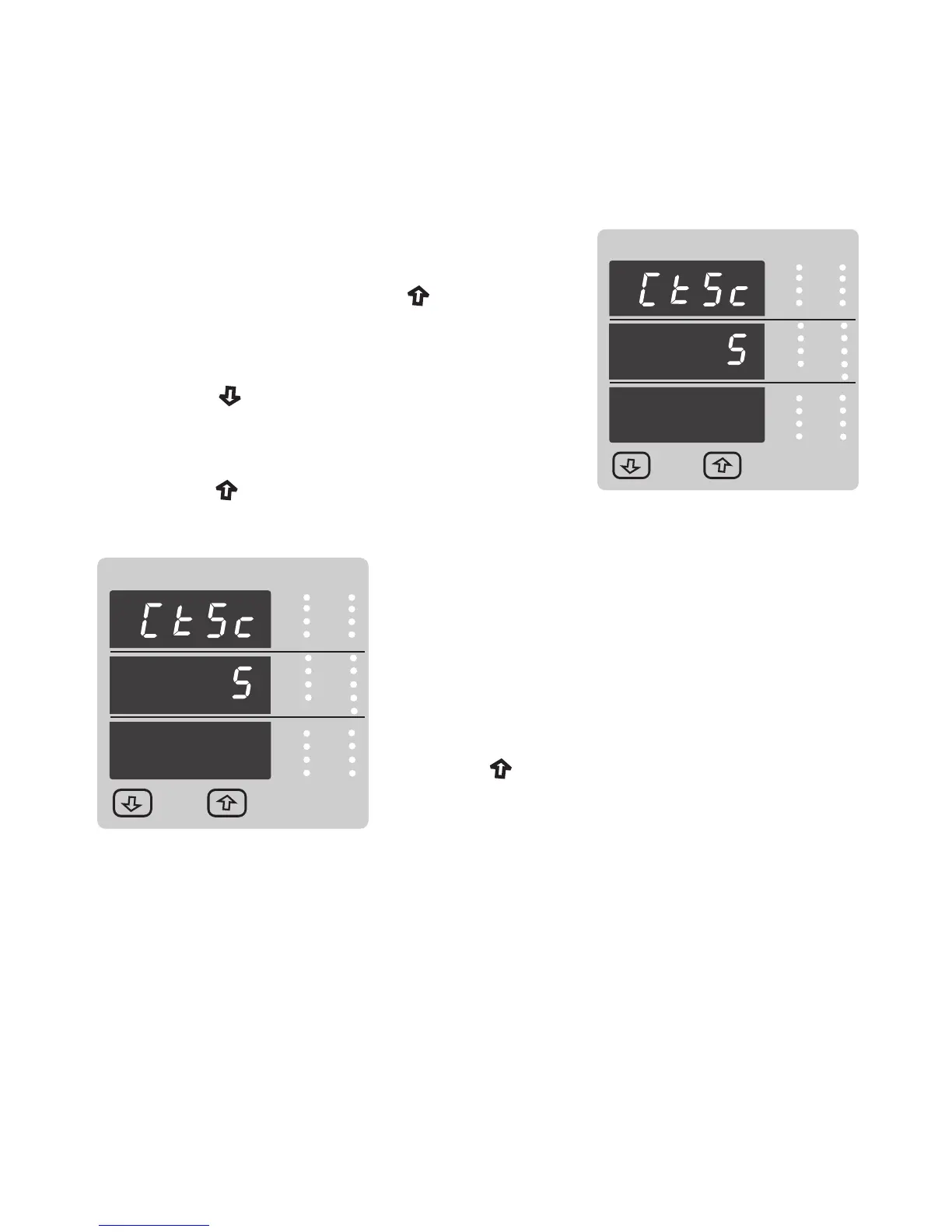

This screen is used to set the secondary value for
Current Transformer. Secondary value “5” for 5A or
“1” for 1A can be selected. Pressing “ Up” key
accepts the present value and advances to the
Reset parameter screen (See Section 3.2.6)
Pressing the “ Down” key will enter the CT
Secondary value edit mode and scroll the value
through the values available.
Pressing the “ Up” key will advance to the CT
Secondary value confirmation.
CT Secondary value confirmation
This screen will only appears following an edit of CT
secondary value .
If secondary value shown is not correct, pressing the
Down key will return to CT secondary edit stage by
blanking the bottom line of the display.
Pressing “ Up” key sets the displayed value and
will advance to reset parameter menu.
(See Section 3.2.6)
