Rish Master 3430 User Manual

1. Introduction
The 3430 is a panel mounted 96 x 96mm DIN Quadratic Digital metering
system for the measurement important electrical parameters like AC voltage,
AC Current, Frequency, Power, Energy(Active / Reactive / Apparent) .
The instrument integrates accurate measurement technology (All Voltages &
Current measurements are True RMS upto 15th Harmonic) with 3 line 4 digits
Ultra high brightness LED display.
3430 can be configured and programmed
at site for the following :
PT Primary, PT Secondary, CT Primary,
CT Secondary (5A or1A) and 3 phase 3W
or 3 Phase 4W system.
Down
Up
VRY
KVAr
Sys
V
x1000
KVArh
IN
Ph R
KAh
VYB
A
KVA
Min
x1000
Hz
KVAh
Ph Y
%THD
Angle
KW
VBR
Max
x1000
P.F.
KWh
Ph B
Down
Up
Max
KVAr
V
x1000
KVArh
Angle
A
KVA
Min
x1000
Hz
D
kVAh
KW
kAh
x1000
P.F.
kWh
%THD

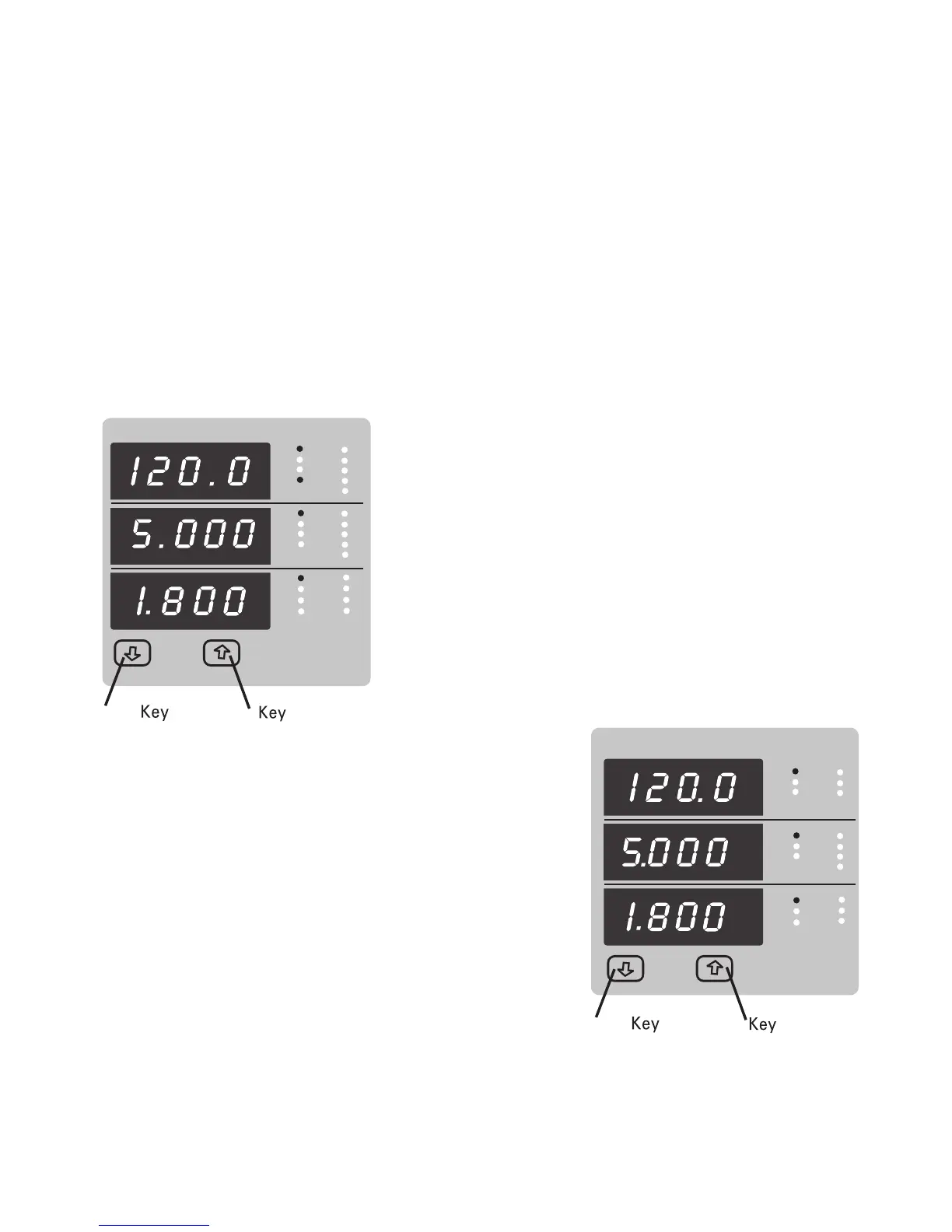

The screen shown on left is of 3 Phase Meter.
The front panel has two push buttons through
which the user may scroll through the
available measurement readings, reset the
energy (Import/Export) Min/Max (System Voltage
and System Current) and configure the product.
The screen shown further is of 1 Phase Meter.
3
