Rish Master 3430 User Manual

VRY
KVAr
Sys
V
KW
VBR
Angle
Max
x1000
KVArh
x1000
IN
Ph R
P.F.
KWh
Ph B
A
VYB
KVA
Min
x1000
Hz
KVAh
Ph Y
%THD
x1000
Hz
KVAh
Ph Y
%THD
L-L
Note : 0.120 kV i.e. 120 V

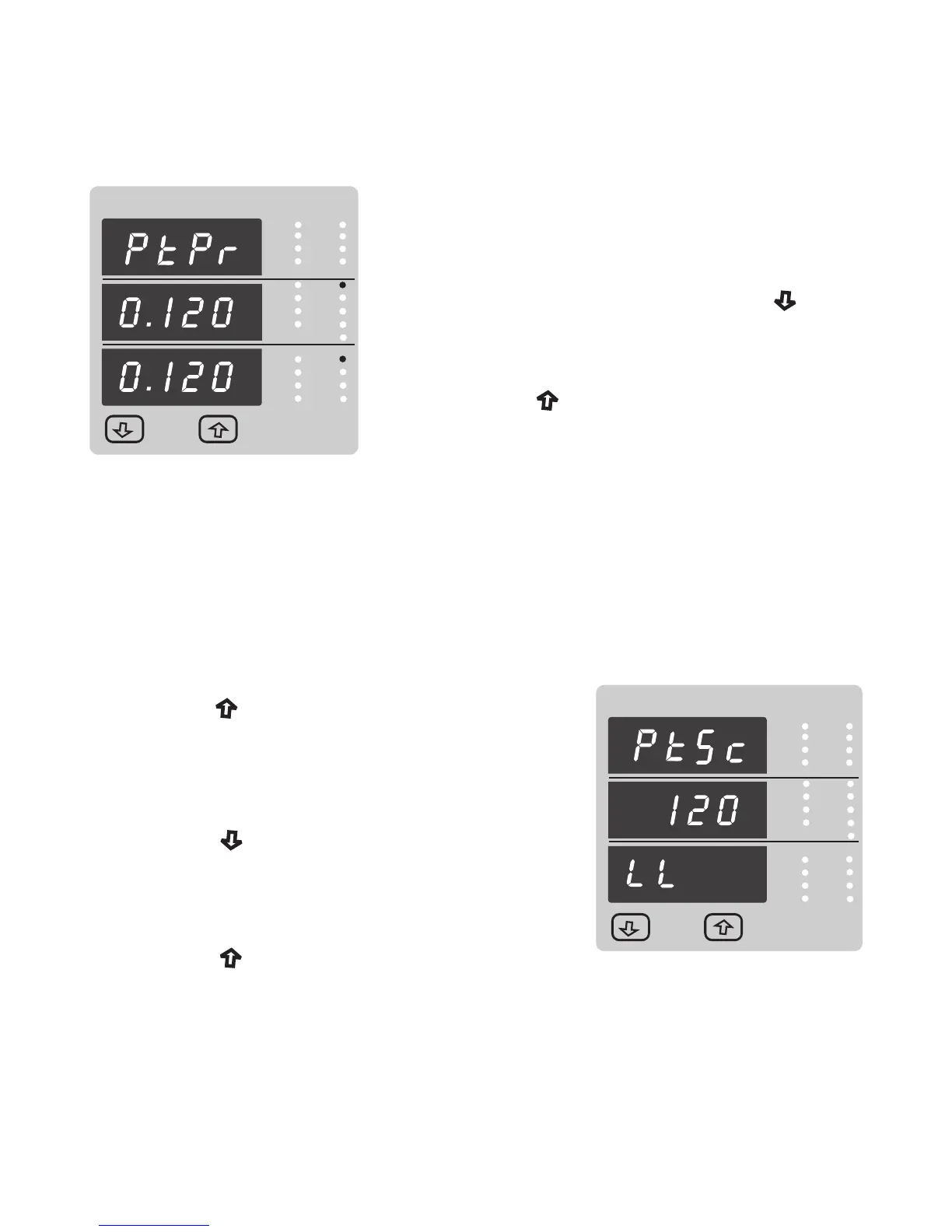

Potential Transformer Primary Value Confirmation
This screen will only appear following an edit of the
Potential Transformer Primary Value.
If the scaling is not correct, pressing the “ Down”
key will return to the “Potential Transformer Primary
Value Edit” stage.
Pressing the “ Up” key sets the displayed value
and will advance to the Potential Transformer
secondary Value (See Section 3.2.3)
3.2.3 Potential Transformer secondary Value
The value must be set to the nominal full scale secondary voltage which will be obtained from
the Transformer when the potential transformer(PT)primary is supplied with the voltage
defined in 3.2.1.2. potential transformer primary voltage. The ratio of full scale primary to full
scale secondary is defined as the transformer ratio.
The Valid range of instrument is from 100 to 600V
Transformer Secondary Value Edit” mode.
“Down” key will scroll the value of the most significant
digit from available range of PT secondary value
Pressing the “ Down” key will enter the “Potential
Pressing the “ Up” key accepts the present value
and advances to the “Current Transformer Primary
Value edit” menu. (See Section 3.2.4)
Pressing the “ Up” key accepts the present value
at the cursor position and advances the cursor to the
next less significant digit.
L-L .
VRY
KVAr
Sys
V
KW
VBR
Angle
Max
x1000
KVArh
x1000
IN
Ph R
P.F.
KWh
Ph B
A
VYB
KVA
Min
x1000
Hz
KVAh
Ph Y
%THD
x1000
Hz
KVAh
Ph Y
%THD
16
