Rish Master 3430 User Manual

Note : the flashing decimal point indicates the cursor position, a steady decimal point will be
present to identify the scaling of the number until the cursor position coincides with the
steady decimal point position. At this stage the decimal point will flash.
When the least significant digit has been set pressing the “ Up” key will advance to the
“Potential Transformer secondary Value Confirmation” stage.
3.2.4 Current Transformer Primary Value
The nominal Full Scale Current that will be displayed as the Line currents. This screen
enables the user to display the Line currents inclusive of any transformer ratios, the values
displayed represent the Current in Amps.
Pressing the “ Up” key accepts the present value and advances to the Current Transformer
Secondary Value (See Section 3.2.5)

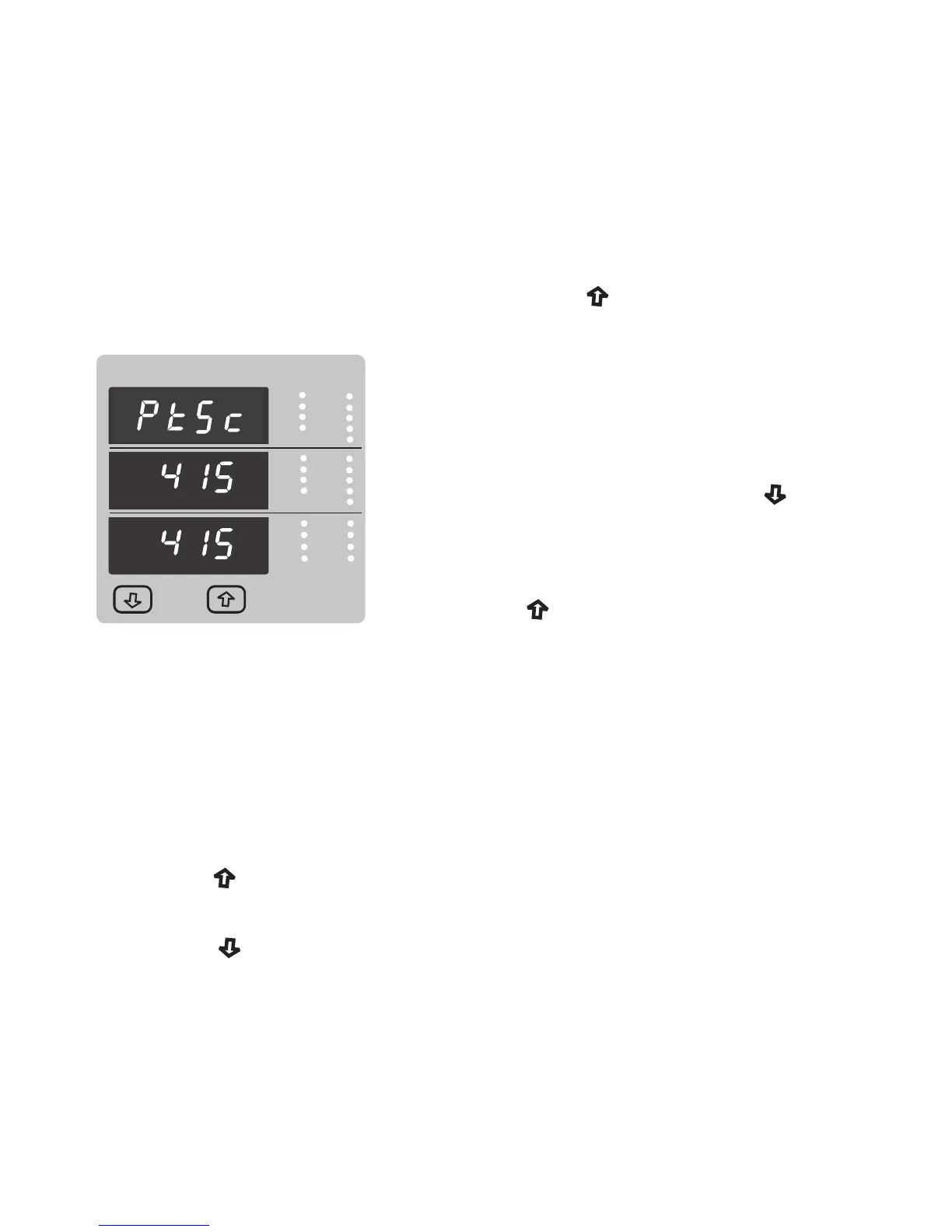

Potential Transformer Secondary Value Confirmation
This screen will only appear following an edit of the
Potential Transformer Secondary Value.
If the scaling is not correct, pressing the “ Down”
key will return to the “Potential Transformer Secondary
Value Edit”
Pressing the “ Up” key sets the displayed value
and will advance to the current Transformer Primary
Value (See Section 3.2.4)
Pressing the “ Down” key will enter the “Current Transformer Primary Value Edit” mode.
This will scroll the value of the most significant digit from 0 through to 9,unless the presently
displayed Current Transformer Primary Value together with the Potential Transformer
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
17
