3.2.12. Assignment of Energy to pulse output 1 :
Pressing “ Up” key accepts the present setting
and advance to “Assignment of Energy to Pulse
Output 2”(see section 3.2.13).

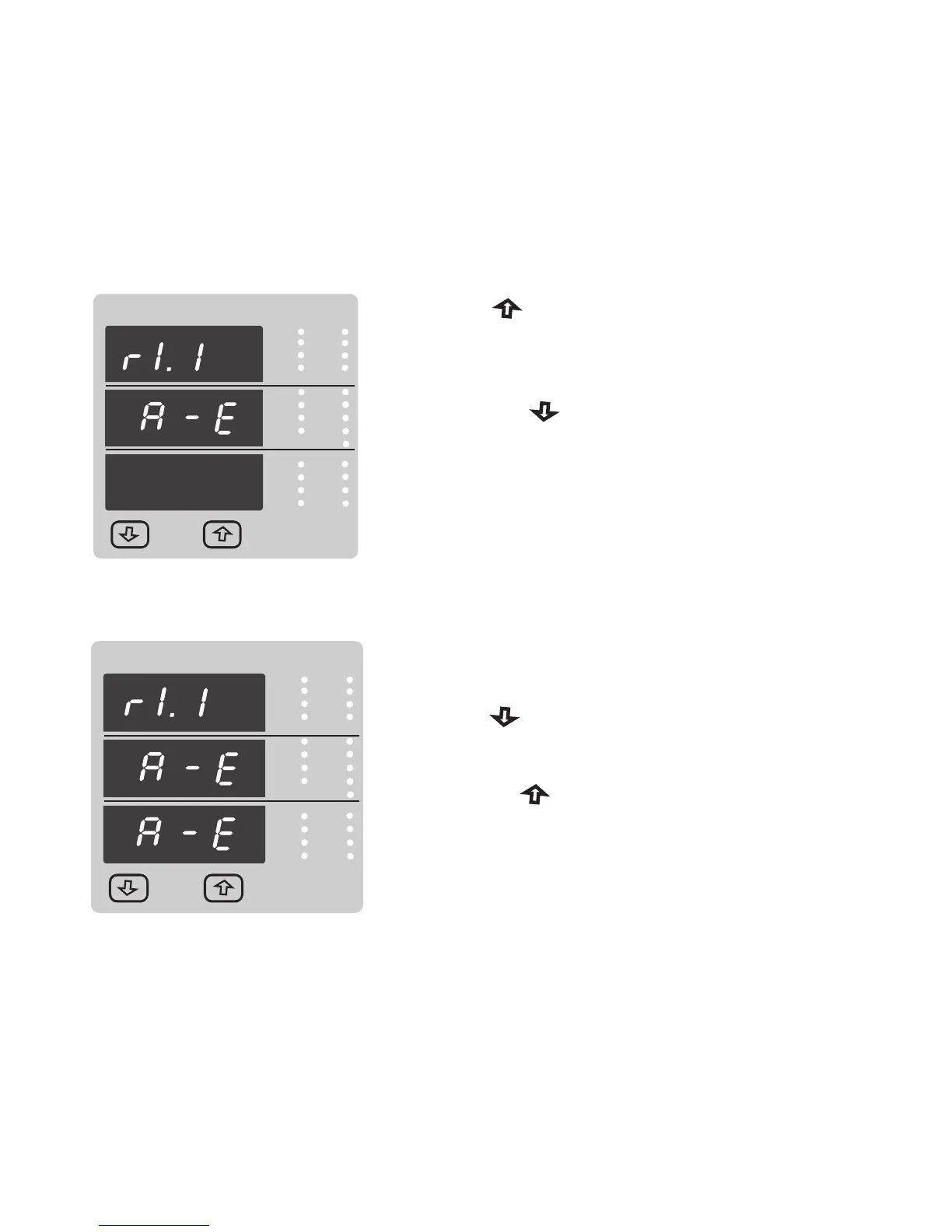

This screen allows the user to assign pulse output1 to energy
Pressing the “ Down” key will enter into edit mode
and scroll through the energy setting
A - E : Apparent Energy
I - E : Import Energy ( Active )
E - E : Export Energy ( Active )
I - rE : Import Reactive Energy
E - rE : Export Reactive Energy
Pressing the “ Up” key will set the value and
advances to the “Assignment of Energy to pulse
output 2”(see section 3.2.13).
Pulse output1 confirmation :
Pressing “ Down” key will be re-enter into edit
mode .
