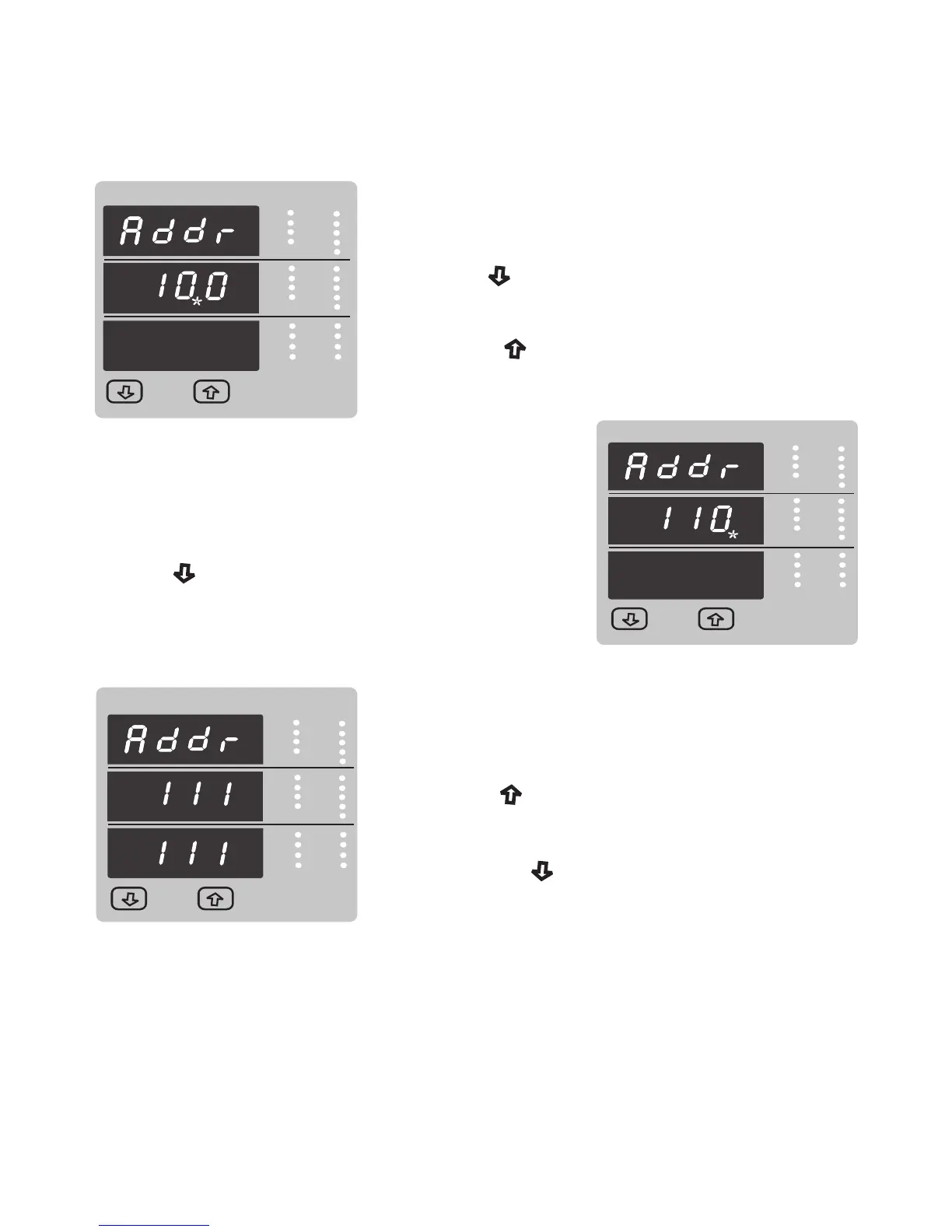

Enter Address, first digit entered, prompt for second
digit (* Denotes that decimal point will be flashing).
Use the “ Down” key to scroll the value of the
Press the “ Up” key to advance to next digit.
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Enter Address, second digit entered, prompt for third
digit (* Denotes that decimal point will be flashing).
Use the “ Down” key to scroll the value of the third digit
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Address confirmation Screen.
This Screen confirms the Address set by user .
Press the “ Up” key to advance to next Screen
“Rs485 Baud Rate” (See Section 3.2.10)
Pressing the “ Down” key will reenter the “Address
Edit” mode.
second digit
