3.1.2. Current Transformer Parameter Setting
3.1.2.1 Current Transformer primary value
This screen allows the user to set the CT Primary value
from 1 to 9999 A.
Pressing the “ Down” key will
enter the “New/Change CT
Primary value edit” mode.
Pressing “ Up” key will confirm
the present value as CT Primary
and advance to the CT secondary
setting (section 3.1.2.2).

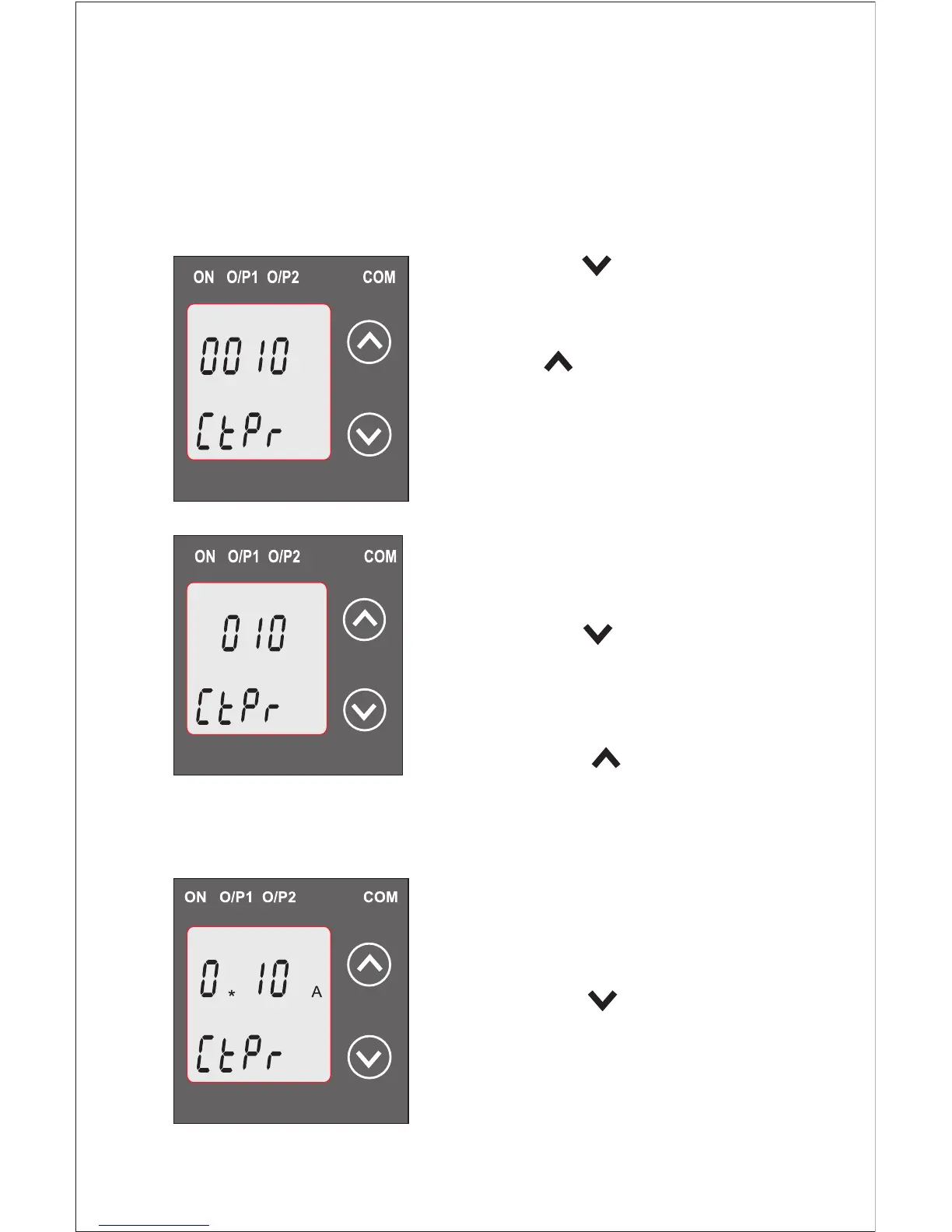

New / Change CT Primary value
(*Denotes that digit will be
flashing).
Pressing the “ Down” key will
scroll the value of the first digit
from 0 through to 9, the value will
wrap from 9 round to 0
Pressing the “ Up” key will
advance the operation to the next digit and set the first
digit, in this case to “0”
Enter New / Change CT Primary
value, first digit entered, prompting
for second digit. (*Denotes that
digit will be flashing).
Pressing the “ Down” key will
scroll the value of the second digit
from 0 through to 9, the value will
wrap from 9 round to 0.
