Rishabh RISH CON - I - Input and Output Screens

2. Input and Output screens
In normal operation the user is presented with display test
screen followed by version screen to one of the output
screen. These screens may be scrolled through one at a
time Output 1 or Output 2 by pressing the “ Up key” or
“ Down key”.

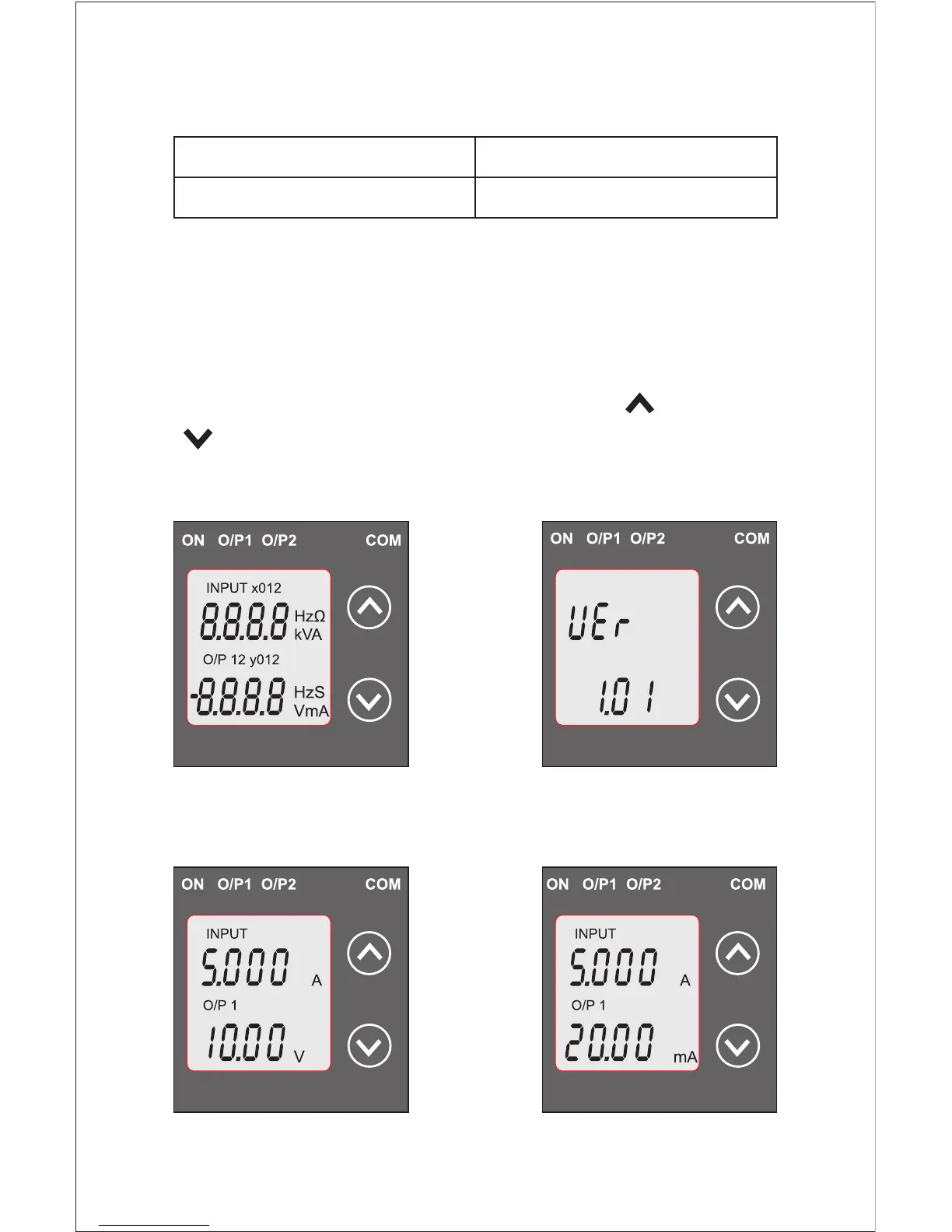

screen 1 : Display Test Screen 2 : Version Screen
Table 1: Measured parameters
Measured parameters
Unit of Measurement
Current
A
Screen 3 : Current Input and
Output 1 as Voltage
Screen 4 : Current Input
and Output 1 as Current
4
