Pressing “ Up” key will confirm the present value as End
value of Input and advance to the Start value of Input setting
(section 3.1.5.2).
New / Change End value of
Input
(*Denotes that digit will be
flashing).
Pressing the “ Down” key will
scroll the value of the second
d ig it f ro m 0 ( 2) t h r ou g h
to1(6), the value will wrap from
1(6) round to 0(2) for 1A(5A) CT secondary.
Pressing the “ Up” key will advance the operation to the
next digit and set the second digit, in this case to “5”.

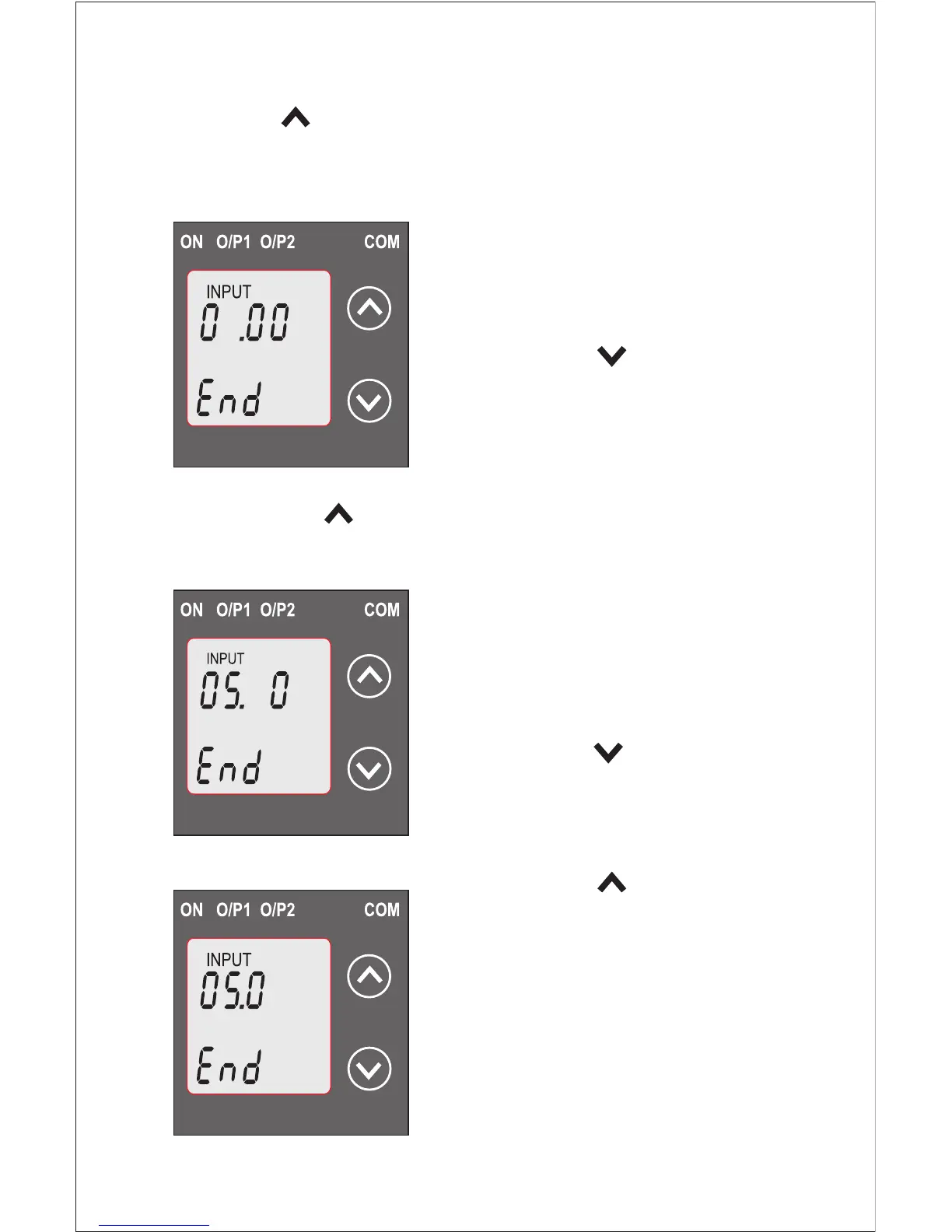

Enter New / Change End value of
Input, second digit entered,
prompting for third digit.
(*Denotes that digit will be
flashing).
Pressing the “ Down” key will
scroll the value of the third digit
from 0 through to 9, the value will
wrap from 9 round to 0.
Pressing the “
to the
next digit and set the third digit, in
this case to “0”.
Enter New /Change End value of
Input,third digit entered,
prompting for fourth digit.
up” key will
advance the operation
