Input selection (Section 3.1.5.4) or Output Characteristics
selection (Section 3.1.6.

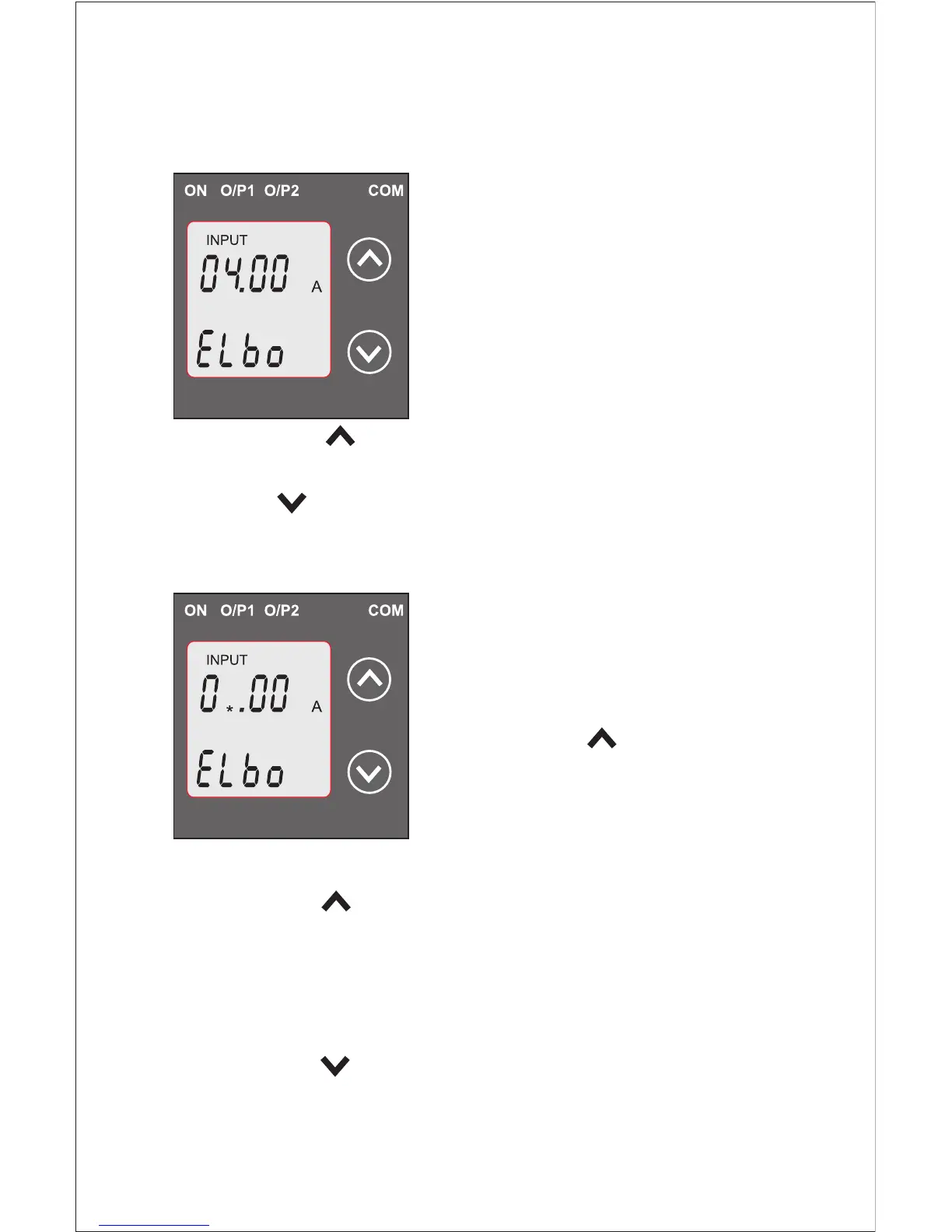

3.1.5.4 Elbow value of Input
This screen appears only when
Elbow function is enabled.
This screen allows the user to set
the Elbow value of the Input.
The Elbow value of Input can be
set between 1.5% of Set End
value of Input.
Pressing the “ Down” key will enter the “New/Change
Elbow value of the Input edit” mode.
Pressing “ Up” key will confirm the present value as Elbow
value of the Input and advance to be Output Characteristics
selectin (Section 3.1.6).
New/Change Elbow value of
the input
(”Denotes that digit will be
flashing).
Pressing the “ Down” key will
scroll the value of the second
digit from 0 through to 5, the
value will wrap from 5 round to 0
depending on set value of End value of Input.
Pressing the “ Up Key will advance the operation to the
next digit and set the second digit, in this case to “4”
Enter New / Change Elbow value of the Input, second digit
entered, prompting for third digit. (*Denotes that digit will be
flashing).
Pressing the “ Down” key will scroll the value of the third
digit from 0# rough to 9, the value will wrap from 9 round to 0
22
