RMG TME400-VMF User Manual

4 Operation
MANUAL TME400-VCF · EN08 · July, 01
st
2021
67
2

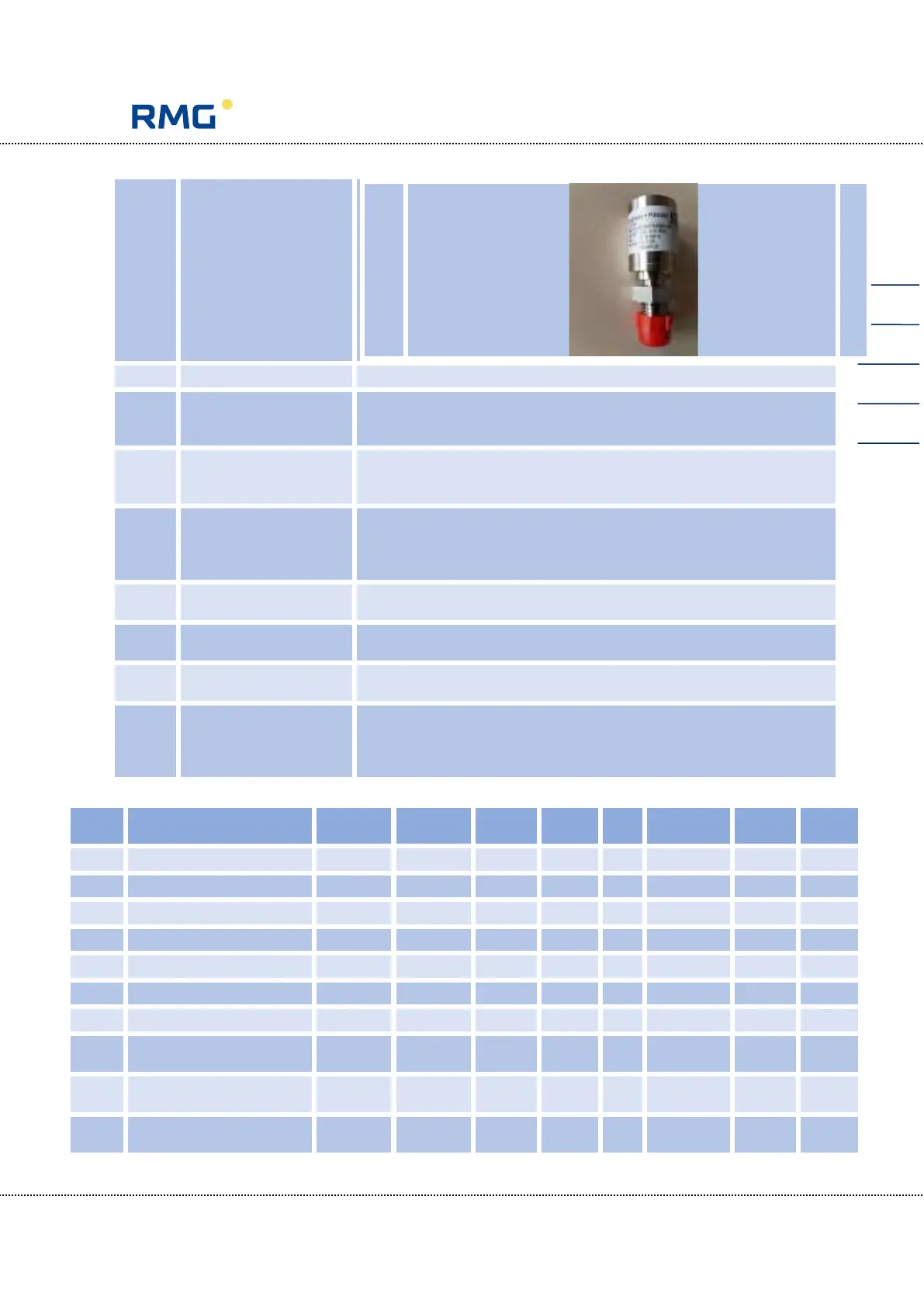

Endress + Hauser
C03
Pressure Default
Default value of the pressure
C04
Pressure Minimum
This value presents the lowest pressure value of the individual pres-
sure transducer. An error is displayed if the pressure is below this
limit.
C05
Pressure Maximum
This value presents the highest pressure value of the individual pres-
sure transducer. An error is displayed if the pressure is above this
limit.
C08
Pressure offset
The measured pressure value can be corrected.
The offset enables a constant increase over the entire pressure
measuring range, based on 1 bar of pressure (atmospheric pres-
sure)
C09
Pressure increase
The increase can be changed by the pressure increase factor based
on the offset value.
C10
Pressure sensor tem-
perature
Display of the temperature of the pressure sensor.
C11
Min. pressure sensor
temperature
Temperature range (lower limit) within which the pressure sensor
works "precisely".
C12
Max. pressure sensor
temperature
Temperature range (upper limit) within which the pressure sensor
works "precisely".
Outside of this range, the pressure value is interpreted as "incor-
rectly" measured.
Coor-
dinate
Name
Modbus
register
Modbus
access
Protec-
tion
Data
type
Min.
Max.
Default
Unit
C01
Pressure
326
R
A
float
-
-
-
bar
C02
Pressure mode
555
W
E
menü16
0
2
0
C03
Pressure specification
556
W
E
float
0.0
100.0
1.0
bar
C04
Pressure Minimum
558
W
E
float
0.8
100.0
0.8
bar
C05
Pressure Maximum
560
W
E
float
0.8
100.0
2.5
bar
C07
Pressure offset
562
W
E
float
-0.5
0.5
0.0
C08
Pressure increase
564
W
E
float
0.8
1.2
1.0
C10
Pressure sensor
temperature
566
R
E
float
-
-
-
°C
C11
Min. pressure sensor
temperature
568
R
E
float
-
-
-
°C
C12
Max. pressure sensor
temperature
570
R
E
float
-
-
-
°C
