6 Error messages
MANUAL TME400-VCF
·
EN
08
· Jul
y
, 01
st
2021
92
6.
Error messages
Error messages are shown in the display as an error number and "unit" "Err".
Figure
18

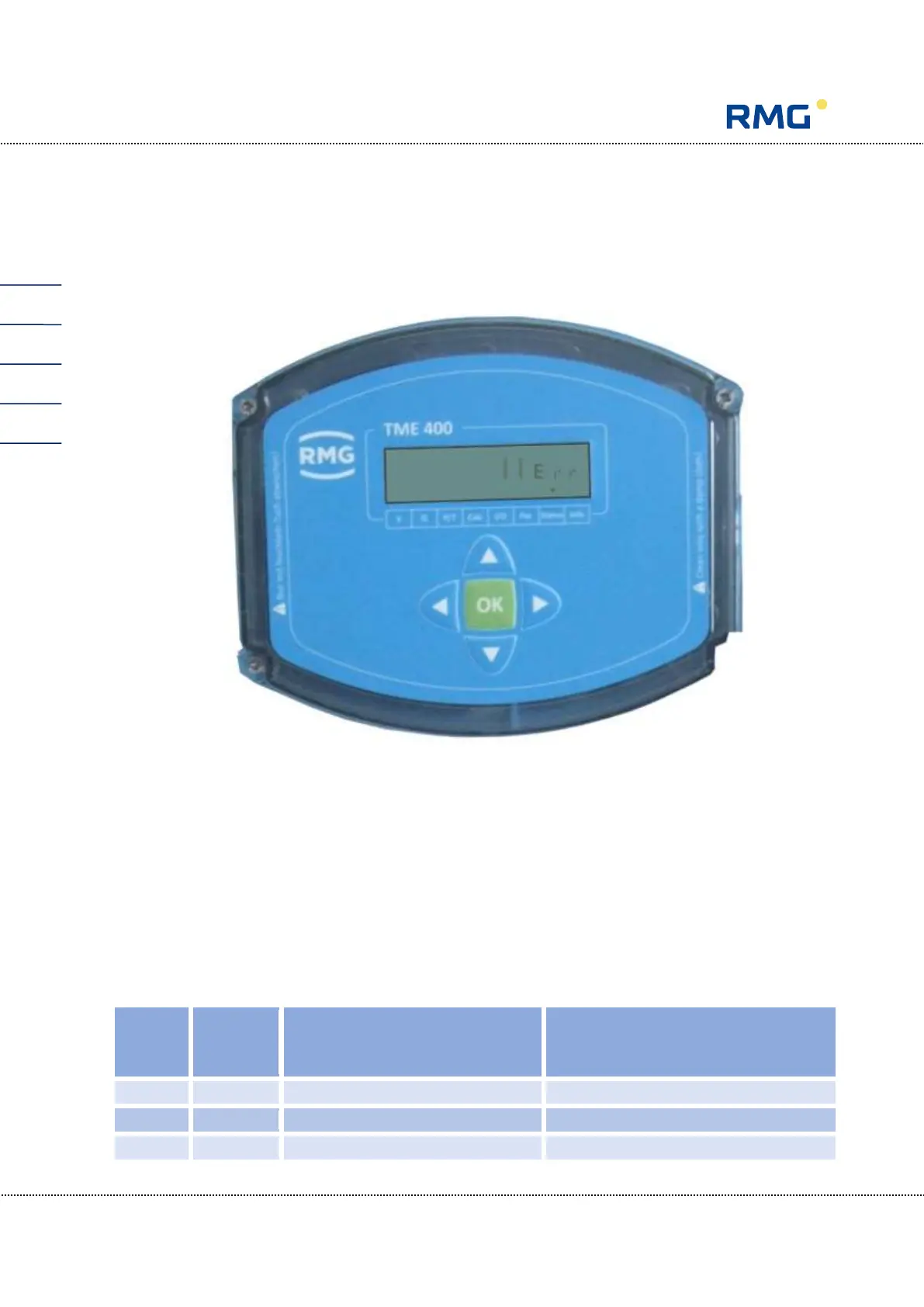

: Error message in the display
The message types are:
E = Error
W = Warning
H = Hint
There are the following error messages:
Mes-
sage
type
Error
no.
Brief description
Comment
E
1
EEprom version error
Contact RMG service.
E
2
EEprom error
Contact RMG service.
E
3
Pt1000 hardware error
Contact RMG service.
