24
Touch the Next button.

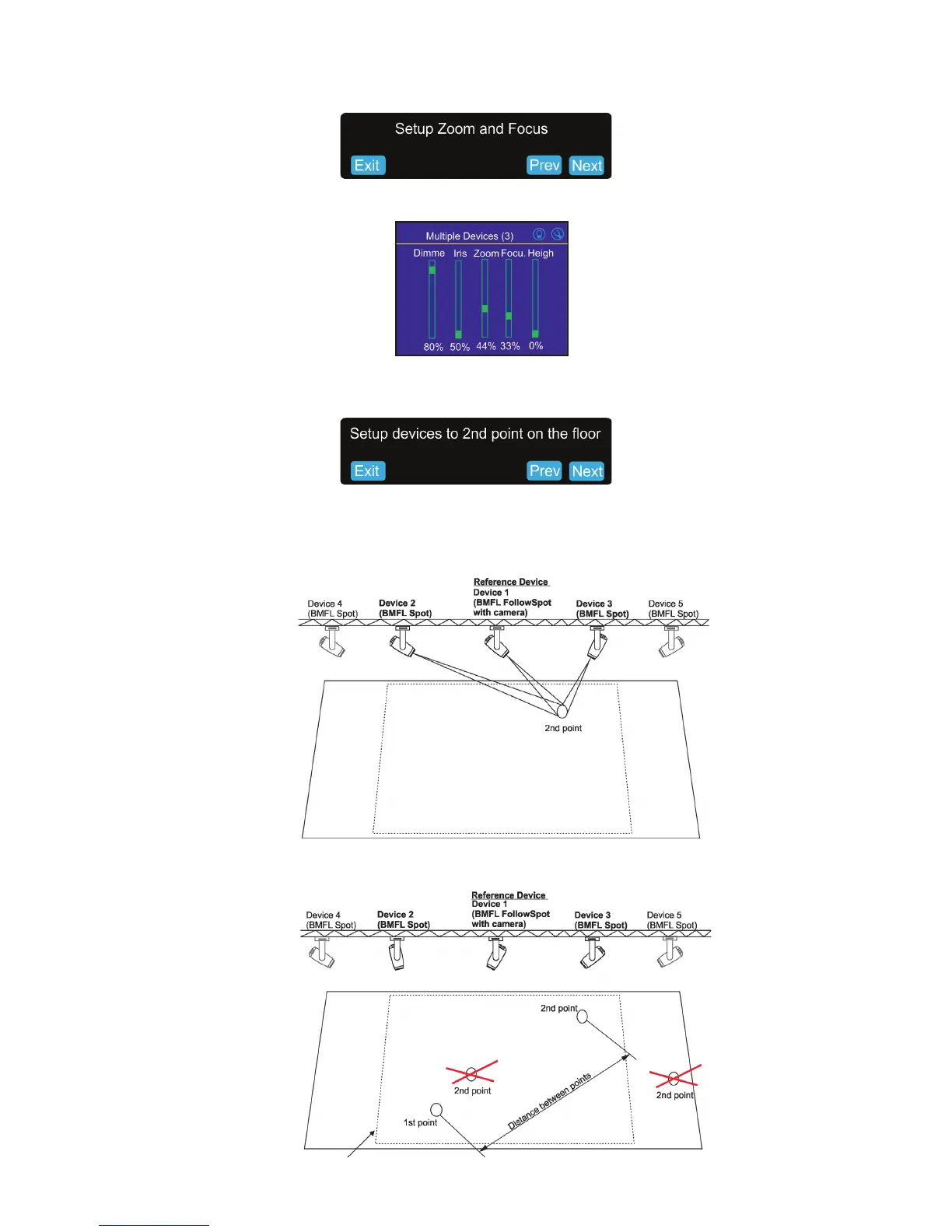

5. The following massage will appear on the screen:
Use the jog-wheels or handle faders or faders on the FollowSpot Controller screen (depending on xture
mapping) to set desired zoom and focus in the point 1.
Touch the Next button.
6. The following massage will appear on the screen:
Zoom and iris is automatically set to the narrow beam at all devices used in the follow spot operation.
Activate the device 1 (by touching desired device button ), focus it (by means of the FollowSpot Controller) and
aim it to one point on the oor (by means of the RoboSpot handles) as exactly as possible.
Repeat this action for the device 2 and device 3 to aim them to the second point.
Note: The two points should be placed suciently apart on the oor and situated inside the eld which is
intended for the follow spot operation. The two points should not be placed too close.
Working area for the follow spot operation
