ROBOTIQ 2-Finger 85 - Page 6

Robotiq 2-Finger Adaptive Gripper Instruction Manual
Robotiq inc. © 2016 6
2-Finger 85 vs 2-Finger 140 :
The 2-Finger Gripper comes with either 85 mm opening (2-Finger 85) or 140 mm opening (2-Finger 140) according to Figure 1.2. the Gripper chassis will
remain the same, only the fingers will change, see for on the installation instructions. Finger kits are available in the Section 3.4 Spare Parts and
. Accessories section

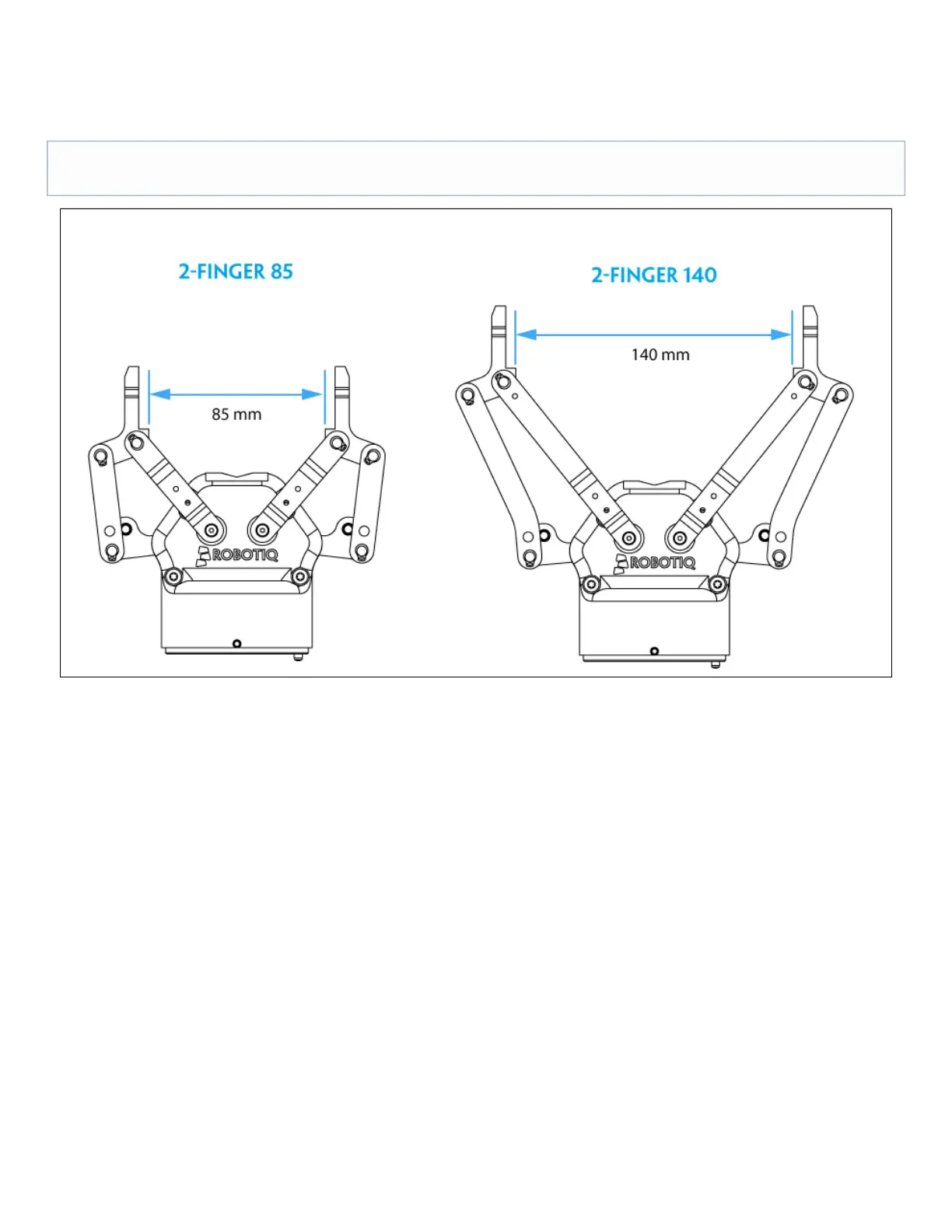

Figure 1.2 : The 2-Finger 85 and 140 mm versions.
Info
Details on the 2-Finger 85 and 2-Finger 140 (dimensions and specifications) can be found in the section.Specifications
