ROBOTIQ 2-Finger 85 - Coupling for ISO 9409-1-31.5-4-M5

Robotiq 2-Finger Adaptive Gripper Instruction Manual
Robotiq inc. © 2016 95
Coupling for ISO 9409-1-31.5-4-M5
Bolt pattern for coupling (see ) is compatible with :AGC-CPL-063-002 Spare Parts, Kits and Accessories section
31.5 mm pitch circle diameter :
(4) M5-0.8 low head s cap screw clearanceocket
(1) M5 indexing pin
ISO 9409-1 standard 31.5-4-M5

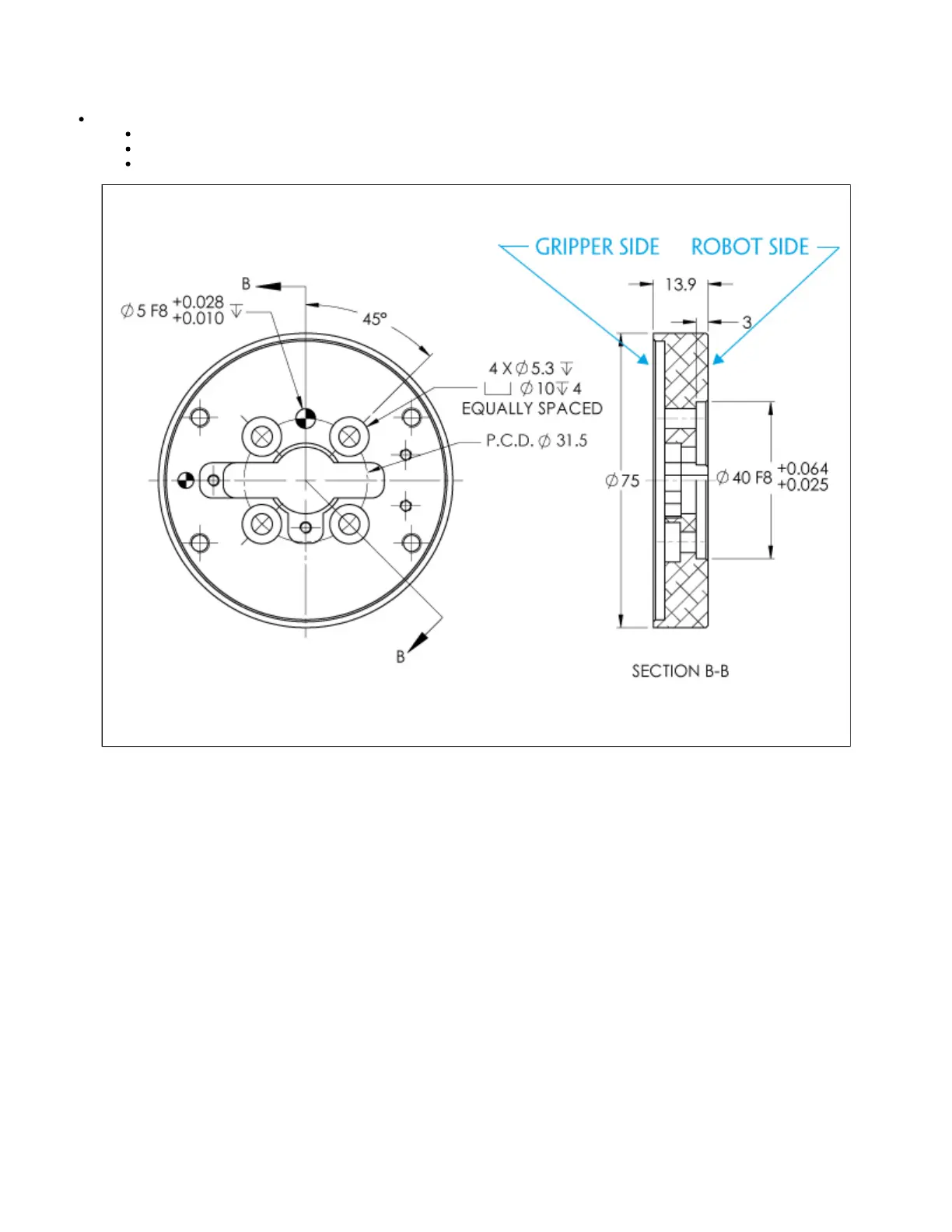

Figure 6.1.1.3 : Coupling for ISO 9409-1-31.5-4-M5.
