ROBOTIQ 2-Finger 85 - Coupling for PCD 60 with 4 X M5

Robotiq 2-Finger Adaptive Gripper Instruction Manual
Robotiq inc. © 2016 99
Coupling for PCD 60 with 4 x M5
Bolt pattern for coupling (see ) is compatible with :AGC-CPL-067-002 Spare Parts, Kits and Accessories section
60 mm pitch circle diameter :
(4) M5-0.8 low head cap screw clearancesocket
(1) M5 indexing pin
34 mm diameter external insert

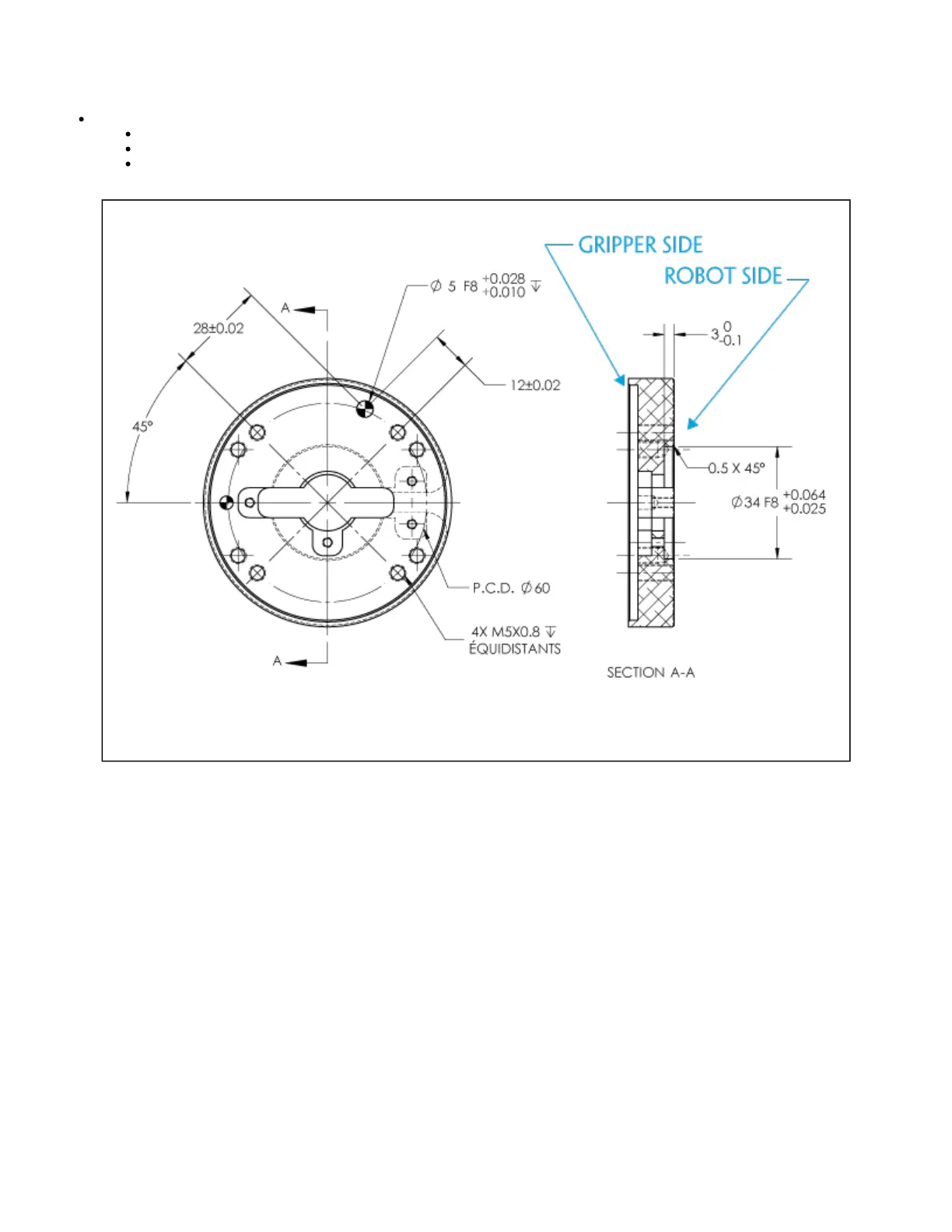

Figure 6.1.1.7 : Coupling for PCD 60 mm with 4 x M5 clearance.
