Robustel R3000-4L User Manual

Robustel GoRugged R3000 User Guide
RT_UG_R3000_v.4.0.0 27 March, 2017 13/136
Confidential
Power Supply and Consumption
 Connector: 5 mm terminal block with lock
Input voltage: 9 to 60V DC
 Power consumption: Idle: 100 mA@12 V
Data link: 400 mA (peak) @12 V
Physical Characteristics
 Ingress protection: IP30
 Housing & Weight: metal, 500 g
 Dimensions: 125 x 104 x 43.5 mm
 Installations: desktop or wall mounting or 35 mm DIN rail mounting
Regulatory and Type Approvals
 Approvals & Certificates: CE, R&TTE,FCC, PTCRB, GCF, AT&T, IC, Rogers, RCM, CB, E-Mark, NBTC, RoHS, WEEE
 EMC:
EMI: EN 55022: 2006/A1: 2007 (CE & RE) Class B
EMS: IEC 61000-4-2 (ESD) Level 4
IEC 61000-4-3 (RS) Level 4
IEC 61000-4-4 (EFT) Level 4
IEC 61000-4-5 (Surge) Level 3
IEC 61000-4-6 (CS) Level 4
IEC 61000-4-8 (M/S) Level 4

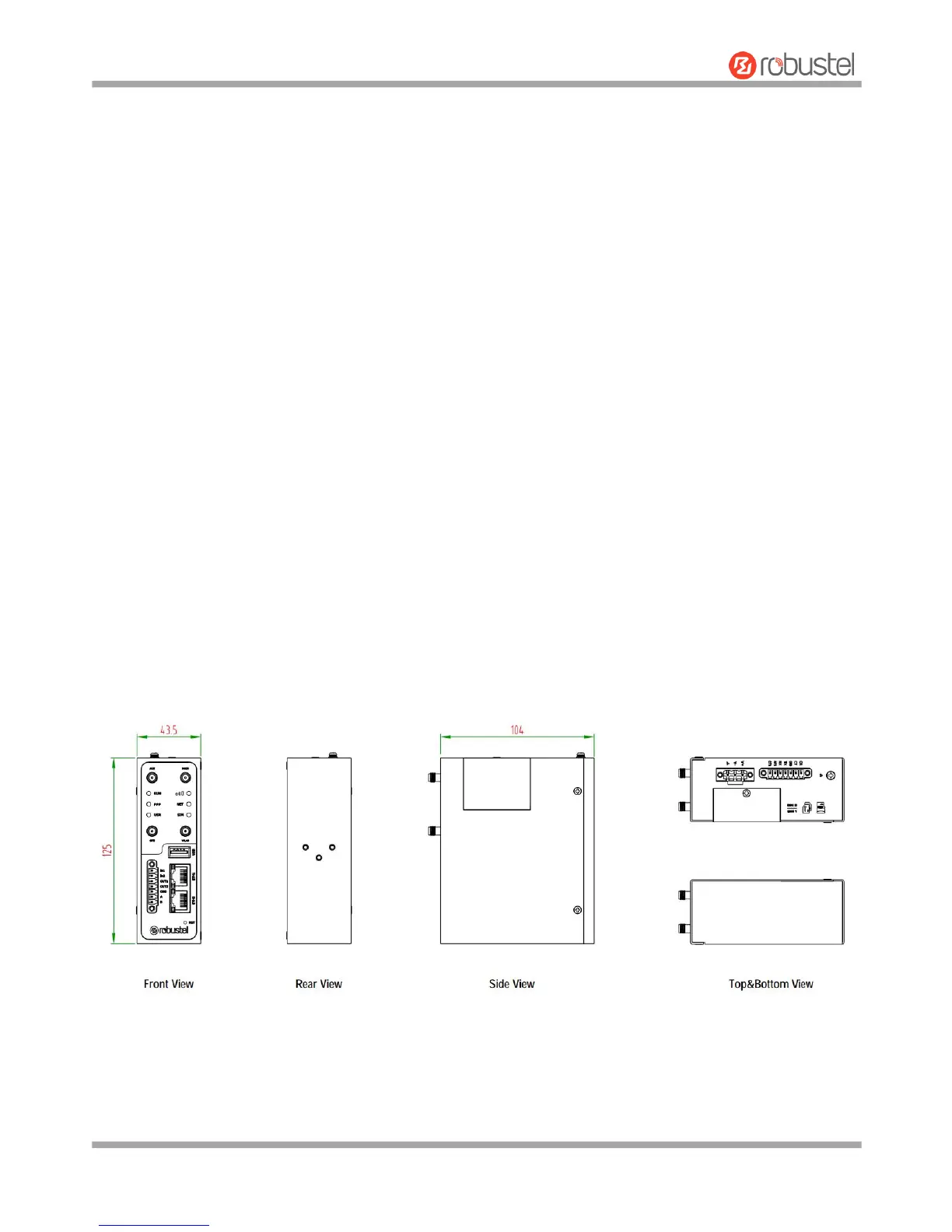

1.4 Dimensions

Robustel R3000-4L Specifications

General

Brand	Robustel
Model	R3000-4L
Category	Network Router
Language	English
