Robustel R3000 Lite - Gre Vpn

Robustel R3000 Lite User Guide
RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 97/109
Confidential

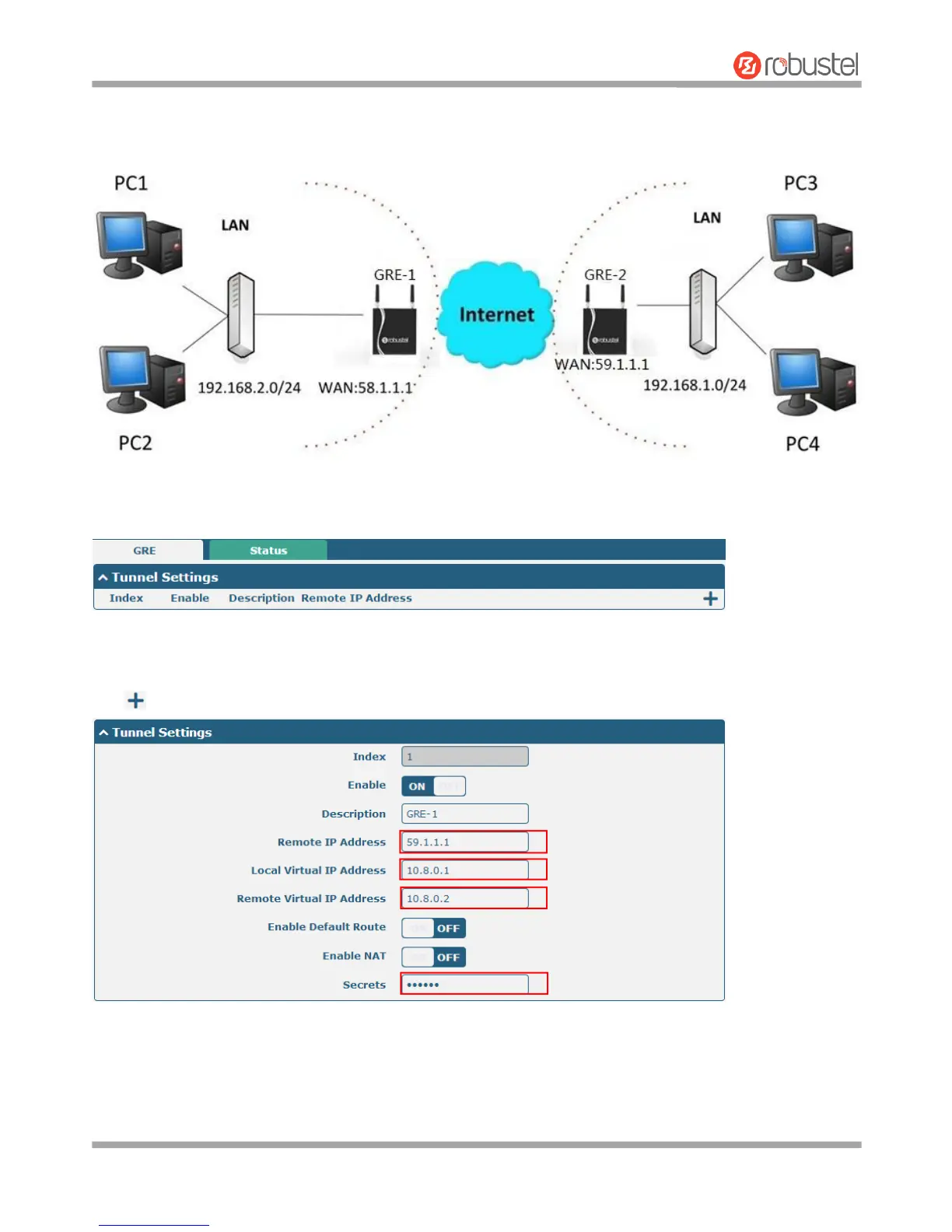

4.2.3 GRE VPN
The configuration of two points is as follows.
The window is displayed as below by clicking VPN > GRE > GRE.
GRE-1
：
Click button and set the parameters of GRE-1 as below.
When finished, click Submit > Save & Apply for the configuration to take effect.
