Chapter 3 Configure the 856T-B24LC IO-Link Module
AOP Installation Add-on Profiles are files that you add to your Rockwell Automation library.
These files contain the pertinent information for configuring a device that is
added to the Rockwell Automation network. The Add-on Profile simplifies the
setup of devices because it presents the necessary fields in an organized
fashion. The Add-on Profile allows for the efficient configuration of systems.
The Add-on Profile is a folder that contains numerous files for the device. It
comes as an installation package.
Before you start making a project in Studio 5000, verify that the proper and
latest versions of the AOP files are installed. In this example, you need the AOP
for 1734-AENTR (POINT I/O) and 1734-4IOL (IO-Link Master).
If the AOP is required to be downloaded and installed, you can find it at:
download.rockwellautomation.com/esd/
download.aspx?downloadid=addonprofiles
Extract the AOP zip file, open the folder, and click the MPSetup.exe file.
Create Project The following steps show how to create simple configuration with 856T-B24LC
module.
To begin a new project in Studio 5000, follow these steps.

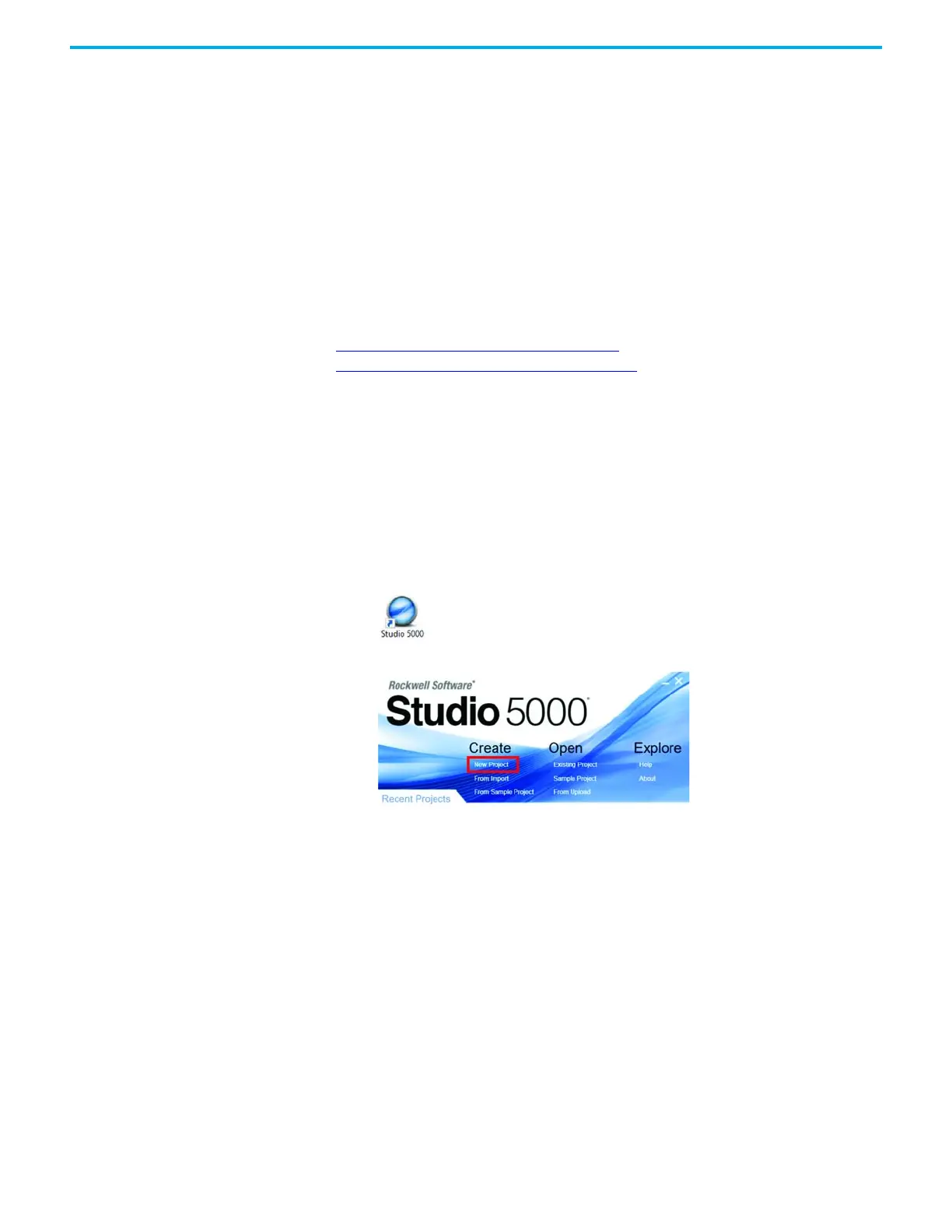

1. Click the Studio 5000 icon. In this example, version 32 of Studio 5000 is
used.
2. Click New Project
