Chapter 3 Operation

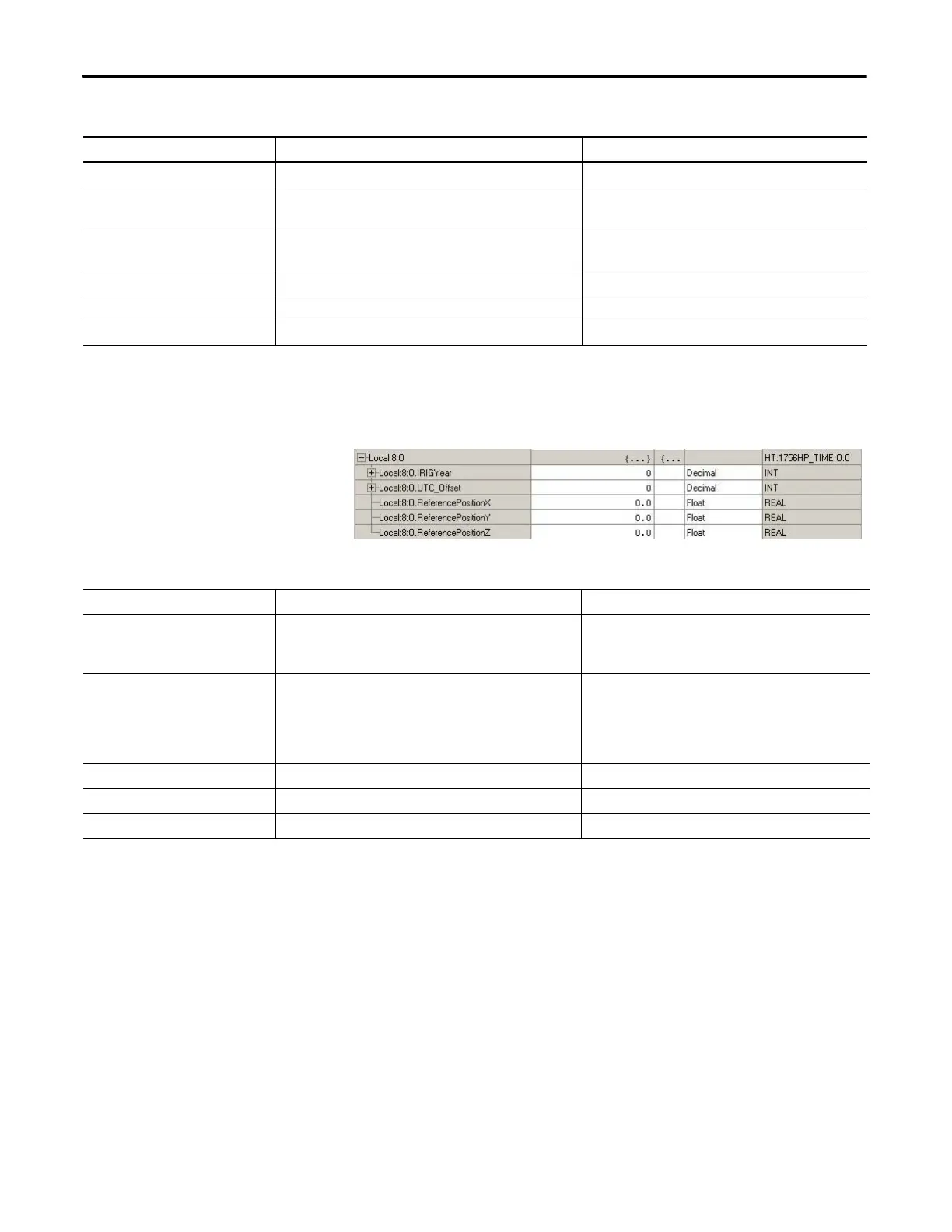

Logix5000 Controller Output
This section provides descriptions for the Logix5000 controller output image
parameters.
Table 4 - Logix5000 Controller Output Image Parameters
GPS.GroundSpeed Displays the ground speed, in meters per second. Example: 10.2m/s
GPS.DegreeFromTrueNorth Displays the degrees from true north. Example:
279.12°
GPS.MagneticVariationFromTrueNorth Displays the magnetic variation from true north. Example:
-18.1°
GPS.RelativePositionX Reserved. –
GPS.RelativePositionY Reserved. –
GPS.RelativePositionZ Reserved. –
Table 3 - Logix5000 Controller Input Image Parameters (continued)
Parameter Description Value
Parameter Description Value
IRIGYear When the module has an IRIG-B time source, the year is not passed
over IRIG-B. Enter the current year here in the output image.
Example:
30 April 2014
IRIGYear = 2014
UTC_Offset The UTC_Offset is used only when the time source is IRIG-B, and PTP
output is enabled.
IRIG-B provides the UTC time, while PTP requires International
Atomic Time (TAI). The difference between the two is the UTC offset.
Example:
30 April 2014
UTC_Offset = 35
Be sure to verify the current UTC offset. The UTC offset changes
ap
proximately every 18 months.
ReferencePositionX Reserved. –
ReferencePositionY Reserved. –
ReferencePositionZ Reserved. –
