GPS Antenna Cable Extensions Appendix E
Table 6 - Cable Extension Kits
Lightning Protection Devices
Rockwell Automation recommends lightning protection devices that are capable
of receiving multiple strikes, with a clamping voltage above the 3.3V DC that is
required by the antenna (such as a Polyphaser DGXZ+06NFNF device). Mount
the lightning protection device outside, with an earth ground.
Part No. Cable Length
m (ft)
Fly Lead 1 Bulkhead
Connector
Main Cable Amplifier Fly Lead 2
ACK33 10 (33) - - RG58-ST-33 - -
ACK50 15 (50) - - LMR240-ST-50 - -
ACK66 20 (66) - - LMR240-ST-66 - -
ACK100 30 (100) RG58-ST-6 BULKH-TT LMR400-TT-100 - -
ACK130 40 (130) RG58-ST-6 BULKH-TT LMR400-TT-130 - -
ACK150 46 (150) RG58-ST-6 BULKH-TT LMR400-TT-150 - -
ACK175 53 (175) RG58-ST-6 BULKH-TT LMR600-TT-175 - -
ACK200 61 (200) RG58-ST-6 BULKH-TT LMR600-TT-200 - -
ACK260 79 (260) RG58-ST-6 BULKH-TT LMR600-TT-260 A11-P110/3.3-TF
15 dB
RG58-TT-6
ACK300 300 (91) RG58-ST-6 BULKH-TT LMR600-TT-300 A11-P110/3.3-TF
15 dB
RG58-TT-6
ACK360 110 (360) RG58-ST-6 BULKH-TT LMR600-TT-360 A11-P110/3.3-TF
15 dB
RG58-TT-6

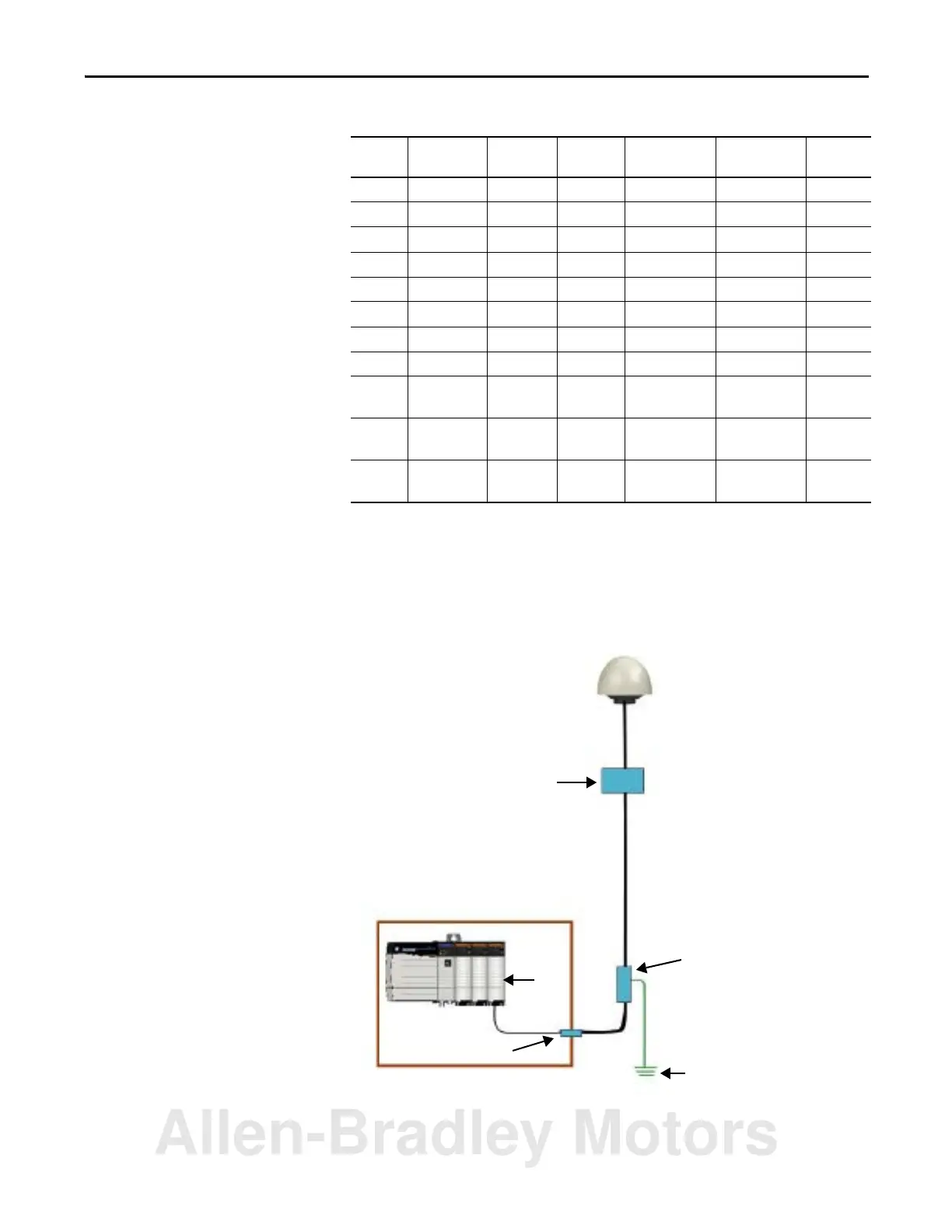

Power Amplifier
Enclosure
1756HP-TIME
Module
Bulkhead Connector
Earth Ground
Lightening Protection Device
