Appendix D Operating Modes
IRIG-B Source

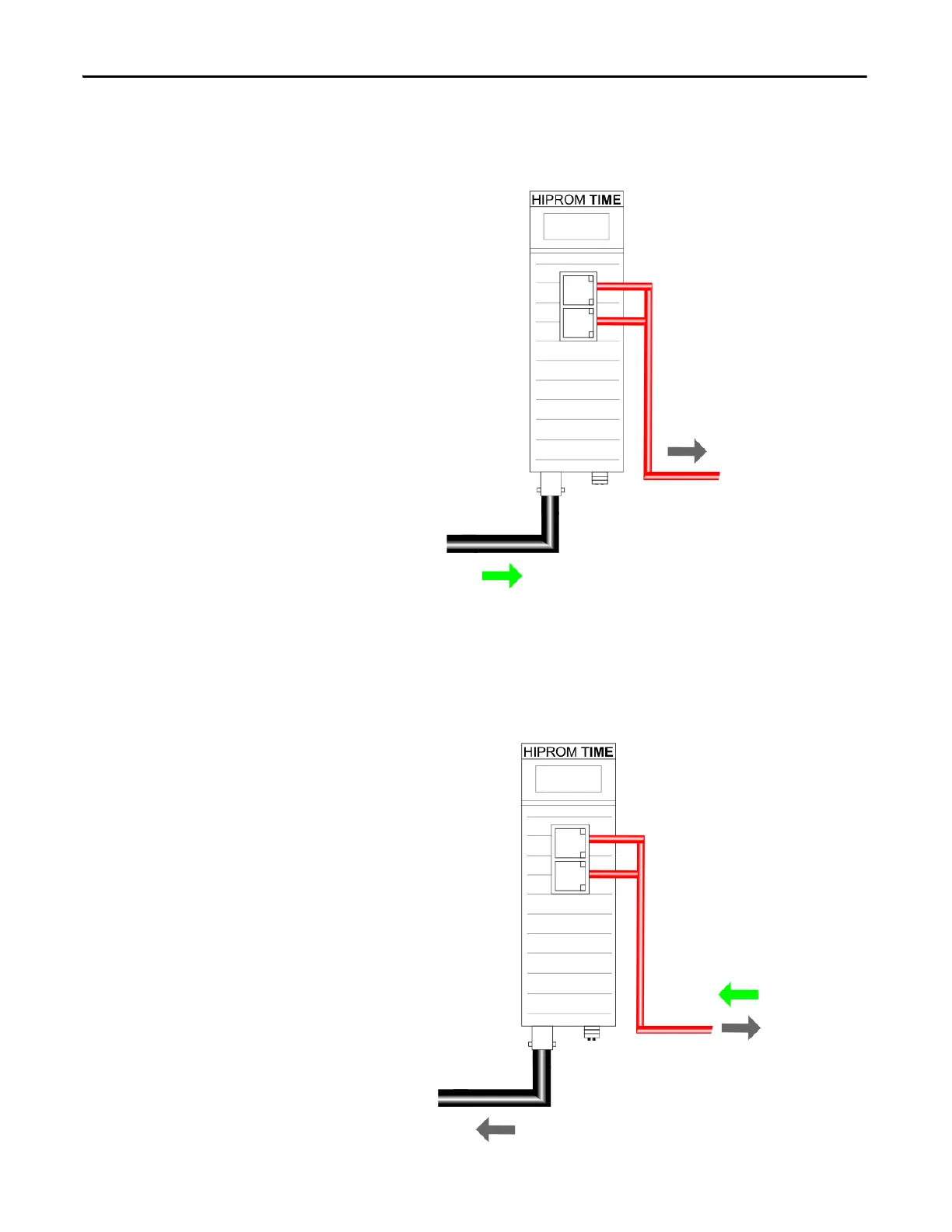

The IRIG-B source mode can have the following configurations:
• S
ource: IRIG-B 122
• Outputs: 1588 PTP/CIP Sync, NTP, and input/output assemblies
PTP Source
The PTP source mode can have the following configurations:
• S
ource: 1588 PTP/CIP Sync, either over Ethernet or the backplane
• Outputs: IRIG-B, NTP, and input/output assemblies
IRIG-B
1588 PTP
NTP
IRIG-B
1588 PTP
NTP
