12 Rockwell Automation Publication 1756-UM542A-EN-P - September 2014
Chapter 2 Setup
View the Satellite Status in
the Logix Designer
Application
Click the Advanced tab to view the source of the time (Time Input), and see if
the time source is valid and available (green) or invalid (red). You can also view
the output type (Time Output), the UTC time of the 1756HP-TIME module,
and the GPS coordinates of the satellite (when a connection is locked).

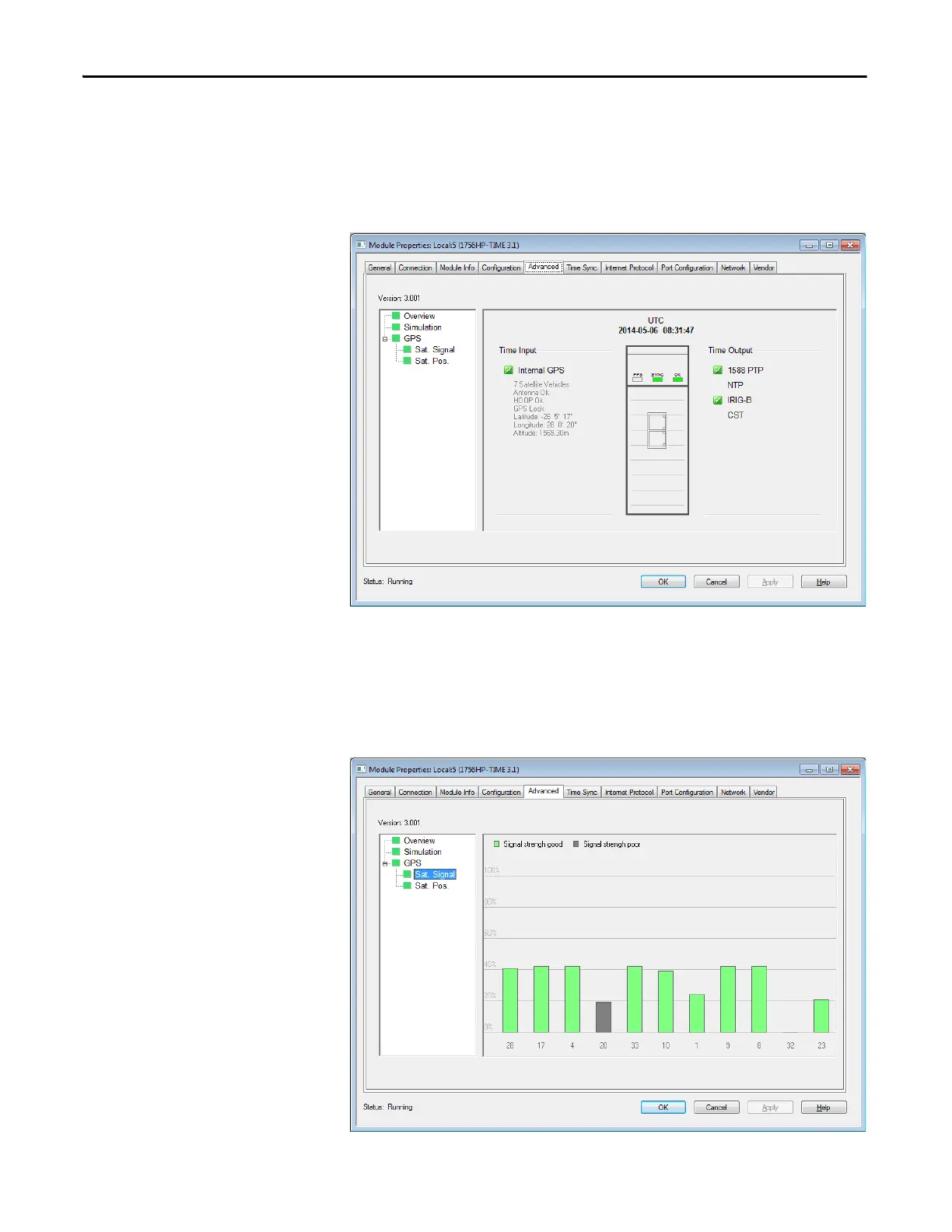

Figure 4 - 1756HP-TIME Module Properties Dialogue Box, Advanced Tab
Satellite Signal
Click Sat. Signal to view the signal strength of the satellites.
Figure 5 - 1756HP-TIME Module Properties Dialogue Box, Sat. Signal Node
