Rockwell Automation Publication 2080-UM002L-EN-E - November 2021 163
Chapter 10 Using microSD Cards
5. After the backup is completed, click OK.
The image files are stored in the default location on the microSD card
<Micro800>\USERPRJ. This location is where the controller loads from when
the Load on power up setting is configured to “Load Always” or “Load on
Error”.
Alternatively, if you do not want to use Connected Components Workbench
software to create the project backup, you can also use the ConfigMeFirst.txt
file.

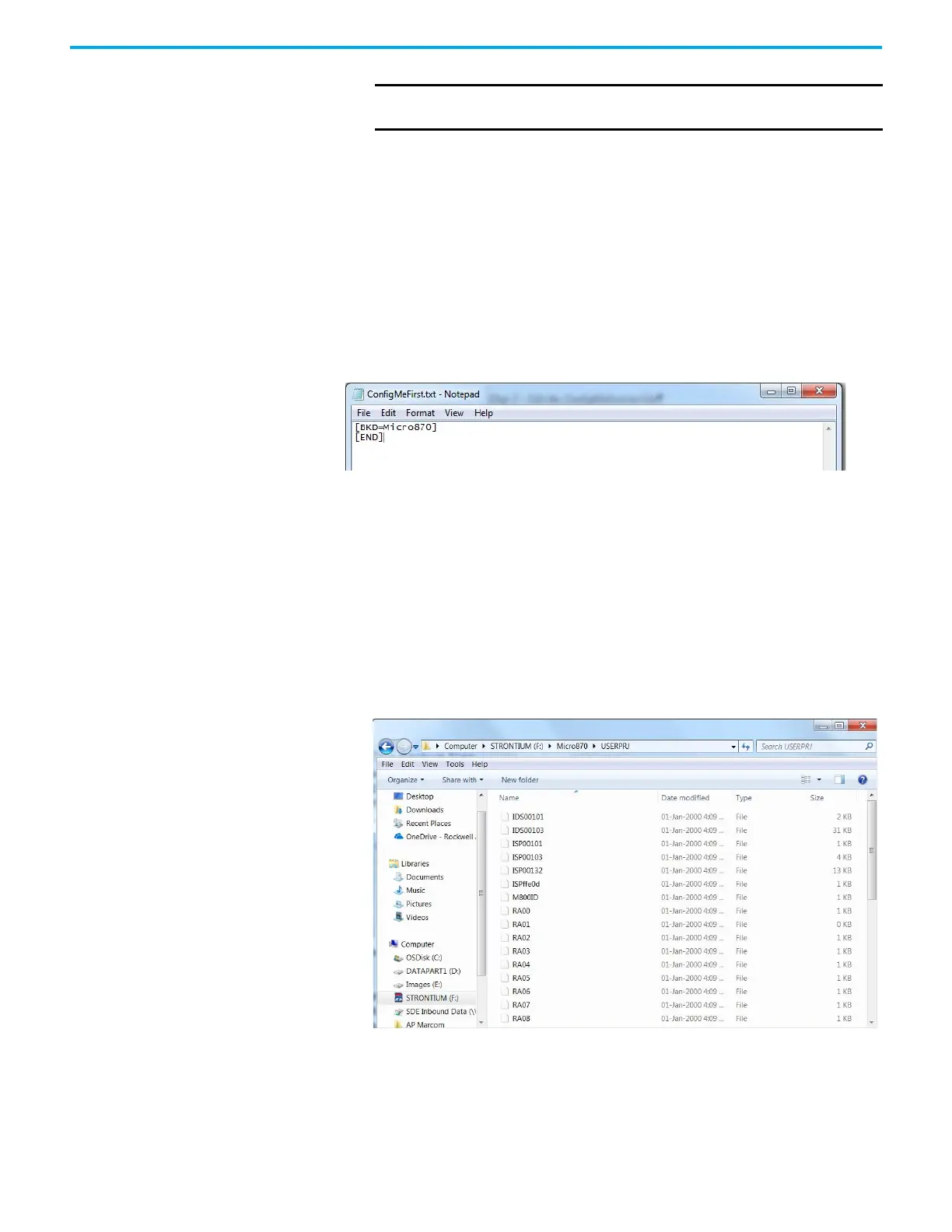

Figure 14 - Example Configuration for Project Backup
The ConfigMeFirst.txt file also allows you to restore from the backup if you
want to configure the Load on power up setting to “Disable”.
Send Image Files Through Email
The next step is to retrieve the image files from the microSD card and send
them to your customer through email.
1. Remove the microSD card from the controller and read the card using
your computer.
2. Navigate to the location where the image files are stored (default is
<Micro800>\USERPRJ).
3. Use a compression program to zip these image files and send them to
your customer through email.
The customer must unzip these image files into the root directory of their
microSD card and verify that the location is identical to the original (default is
<Micro800>\USERPRJ).
IMPORTANT
The Backup to Memory Card button is enabled when the controller is
in program mode and a microSD card is in the microSD card slot.
