Chapter 4 Wire Your Controller
Embedded Serial Port Wiring The embedded serial port is a non-isolated RS-232/RS-485 serial port, which is
ta
rgeted to be used for short distances (<3 m) to devices such as HMIs.
See Embedded Serial Port Cables
on page 19 for a list of cables that can be used
with the embedded serial port 8-pin Mini DIN connector.
For example, the 1761-CBL-PM02 cable is typically used to connect the
embedded serial port to PanelView™ Component HMI using RS-232.
Com
Fuse
24V
DC
I/P
+
~

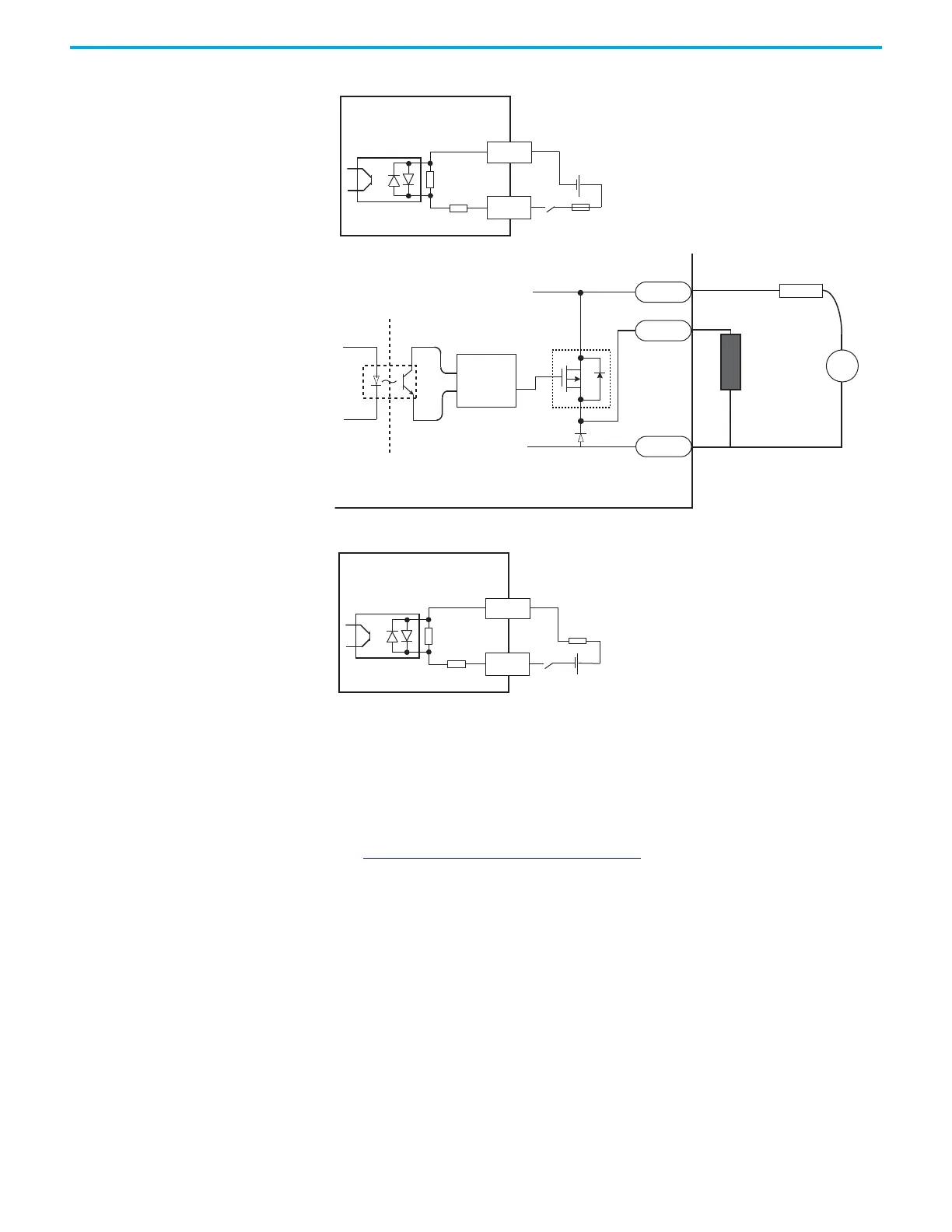

Sink input wiring example
D
DC COM
OUT
+V DC
S
G
+
–
24V supply
Logic side
User side
Load
Fuse
Source output wiring example
Micro800 source output
Com
Fuse
24V
DC
I/P
+
~
Source input wiring example
