Rockwell Automation Publication 2080-UM002L-EN-E - November 2021 63
Chapter 5 Communication Connections

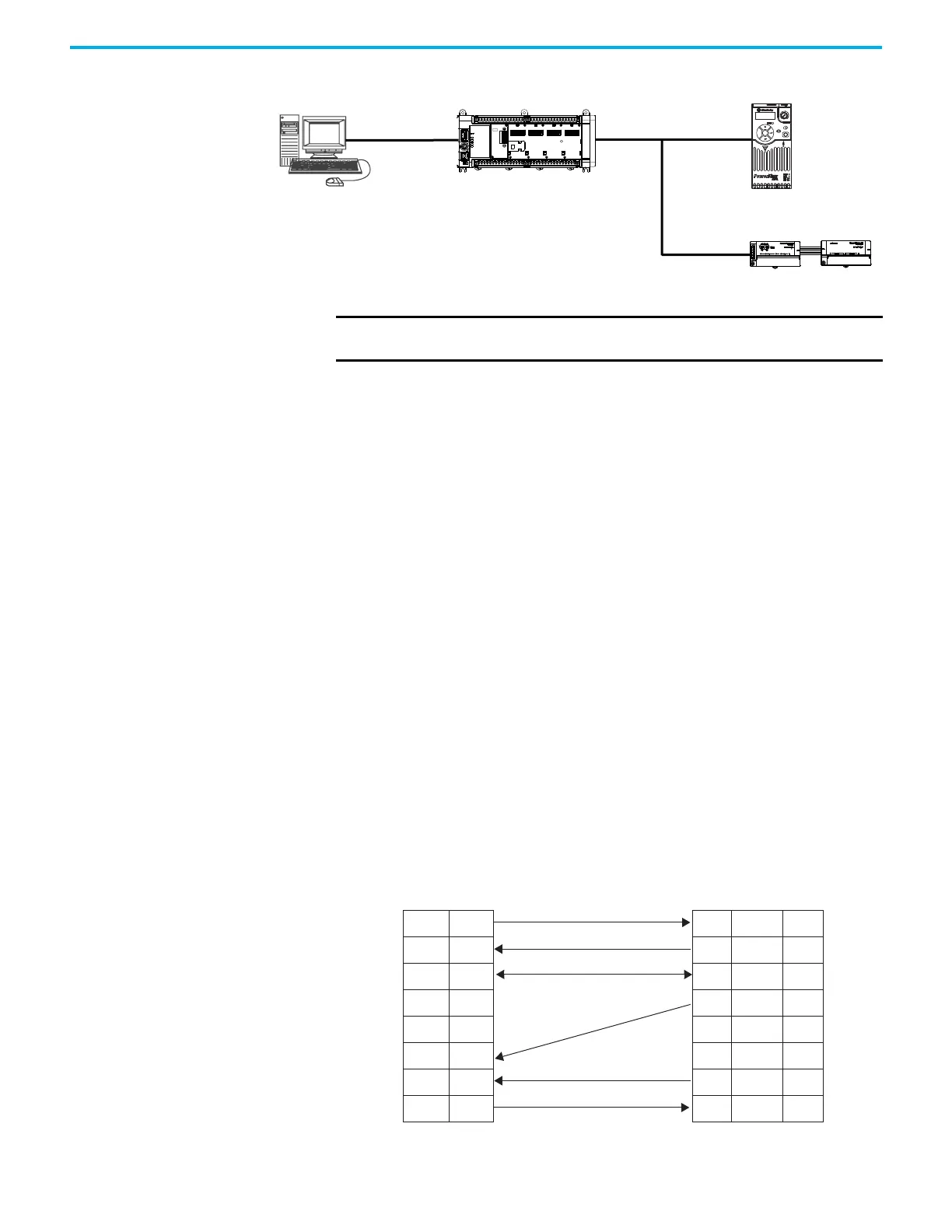

EtherNet/IP to DeviceNet
Use Modems with Micro800
Controllers
Serial modems can be used with the Micro830, Micro850, and Micro870
controllers.
Making a DF1 Point-to-Point Connection
You can connect the Micro830, Micro850, and Micro870 programmable
controller to your serial modem using an Allen-Bradley null modem serial
cable (1761-CBL-PM02) to the controller’s embedded serial port together with a
9-pin null modem adapter – a null modem with a null modem ad
apter is
equivalent to a modem cable. The recommended protocol for this
configuration i
s CIP Serial.
Construct Your Own Modem Cable
If you construct your own modem cable, the maximum cable length is 15.24 m
(50 ft) with a 25-pin or 9-pin connector. See the following typical pinout for
constructing a straight-through cable:
DeviceNet
PowerFlex 525 drive
with
25-COMM-D adapter
(Address 1)
EtherNet/IP
Esc
Sel
Micro850 controller
with
2080-DNET20 plug-in scanner
(Address 0)
CompactBlock LDX I/O
(Address 2)
The user can use Connected Components Workbench software to configure
the PowerFlex drives.
For program download
IMPORTANT
Micro800 controllers do not support more than one hop (for example, from
EtherNet/IP CIP Serial EtherNet/IP).
DTE Device
(Micro830/850/870
Channel 0)
DCE Device
(Modem, etc)
niP-9niP-52niP-8
32DXTDXT7
23DXRDXR4
57DNGDNG2
18DCD)+(B1
402RTD)-(A8
66RSDDCD5
85STCSTC6
74STRSTR3
