Chapter 5 Communication Connections

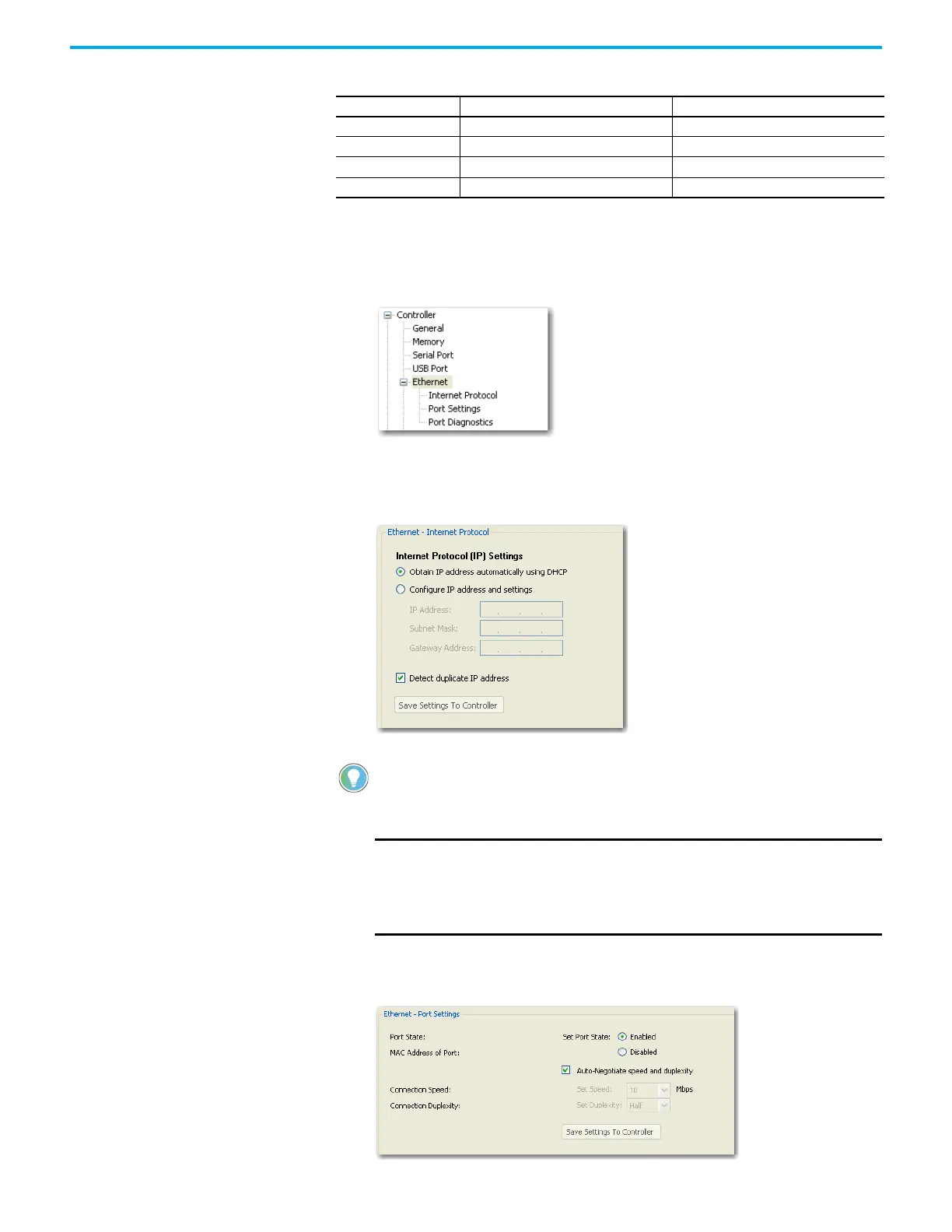

Configure Ethernet Settings 1. Open your Connected Components Workbench project (for example,
Micro850). On the device configuration tree, go to Controller properties.
Click Ethernet.
2. Under Ethernet, click Internet Protocol.
Configure Internet Protocol (IP) settings. Spec
ify whether to obtain the
IP ad
dress automatically using DHCP or manually configure IP ad
dress,
subnet ma
sk, and gateway address.
3. Click the checkbox Detect duplicate IP add
ress to enable detection of
duplicate address.
4. Under Ethernet, click Port Settings.
XON/XOFF Enabled or Disabled Disabled
Echo Mode Enabled or Disabled Disabled
Append Chars 0x0D,0x0A or user-specified value 0x0D,0x0A
Term Chars 0x0D,0x0A or user-specified value 0x0D,0x0A
ASCII Advanced Parameters (Continued)
Parameters Options Default
The Ethernet port defaults to the following out-of-the box settings:
•DHCP (dynamic IP address)
• Address Duplicate Detection: On
IMPORTANT
When a DHCP server fails, the Micro800 controller allocates IP
addresses in the private range 169.254.0.1 to 169.254.255.254. The
Micro800 controller verifies its address is unique on the network
using ARP. When the DHCP server is again able to service requests,
the Micro800 controller updates its address automatically.
