214 Rockwell Automation Publication 2080-UM002L-EN-E - November 2021
Appendix B Modbus Mapping for Micro800
• Connect the 1203-USB to the PowerFlex Drive and to the Computer.
• Launch the Connected Components Workbench software, Connect to
the Drive and set parameters.
To configure PowerFlex 4M, perform the following steps:
1. Double-click the PowerFlex 4M if it is not already open in the Connected
Components Workbench software.
2. Click Connect.
3. In the Connection Browser, expand the AB_DF1 DH+â„¢ Driver.
Select the AB DSI (PF4 Port) and click OK.
4. Once the Drive has connected and been read in, select the Start up
wizard and change the following items. Select Finish to save the changes
to the drive.
• Select the Comm Port as the Speed Reference. Set P108 [Speed
Reference] to 5 (Comm Port).
• Set Start Source to Comm Port. Set P106 [Start Source] to 5 (Comm
Port).
• Defaults for the remaining Inputs
• Accept Defaults for the remainder and click Finish.

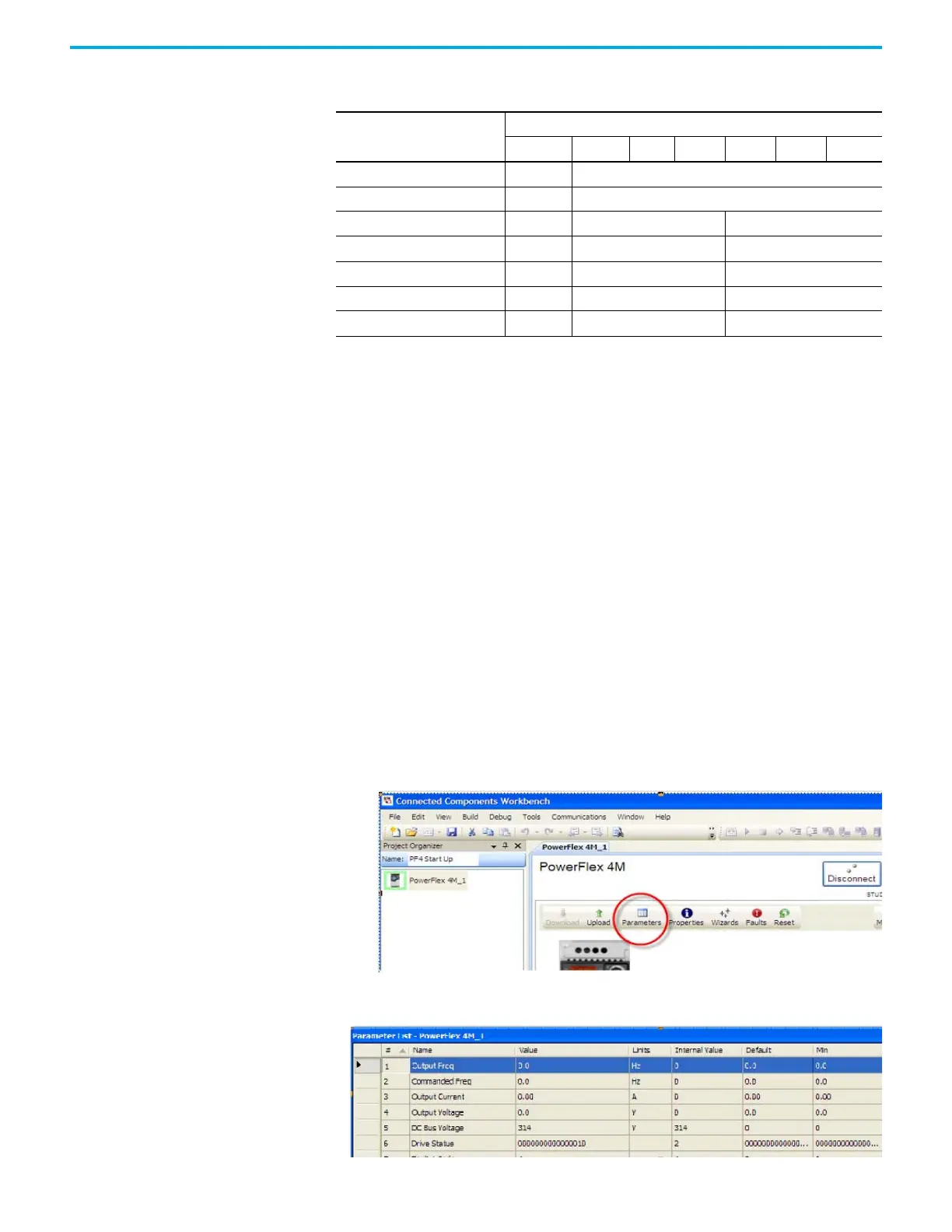

5. Select Parameters from the Connected Components Workbench
window.
6. The Parameter window opens. Resize it to view the parameters. From
this window, you can view and set data values of Parameters.
Table 44 - Parameters
Parameter Name
Parameter Number
4M 4 40 40P 400 400N 400P
Start Source P106 P36
Speed Reference P108 P38
Comm Data Rate C302 A103 C103
Comm Node Addr C303 A104 C104
Comm Loss Action C304 A105 C105
Comm Loss Time C305 A106 C106
Comm Format C306 A107 C102
